KAWASAKI ZX-10R ('21- )

Race Concept Rear Sets

SATO RACING 'Race Concept' Rear Sets for 2021 Kawasaki ZX-10R are pure, no-compromise racing rear sets for track-only bikes. CNC-machined out of high strength billet aluminum, these premium Rear Sets feature a modular base plate / step plate design that provides 9 adjustable positions in a useful range for the track, bringing your feet significantly higher up and further back compared to stock. Heavy duty multi-link shift linkage works well with the stock quick shifter. Choose from Stock Shift or Reverse Shift versions. Choice of anodized Black finish with Gold accents, or Gold finish with Black base plates.


NOTE: Race Concept Rear Sets are not recommended for street bikes - Not designed for compatibility with the stock brake light switch or ABS brakes.
(For 'street'-friendly Rear Sets, see our standard ZX-10R '21 Rear Sets ).



POSITIONS

1 17.5mm Back 32.5mm Up
2 27.5mm Back 42.5mm Up
3 37.5mm Back 42.5mm Up
4 17.5mm Back 42.5mm Up
5 27.5mm Back 52.5mm Up
6 37.5mm Back 52.5mm Up
7 17.5mm Back 52.5mm Up
8 27.5mm Back 62.5mm Up
9 37.5mm Back 62.5mm Up

note: all measurements are in relation to stock position (0 mm).

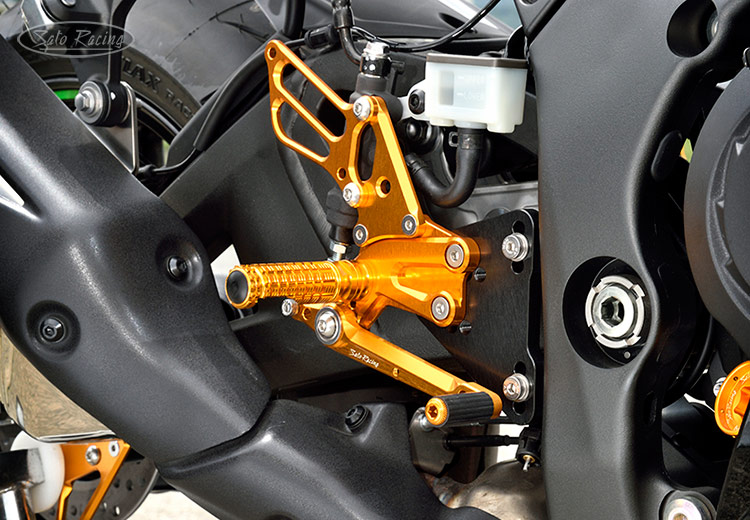

SATO RACING 'Race Concept' Rear Sets 2021 Kawasaki ZX-10R - Brake Side

Modular design lets you separately adjust the positions of the Base Plate and Step Plate so you can find the ideal position for your riding style. The standard Foot Pegs are finely knurled for superior grip and a comfortable, intuitive feel.

NOTE: This set is pictured with our
Cut-out style Racing Foot Pegs, an alternate foot peg style that can be purchased separately.

The Pedal Tips are adjustable, and are made of gold-anodized aluminum, with replaceable fluted rubber grips.   Additional Pedal Tip styles are also available.

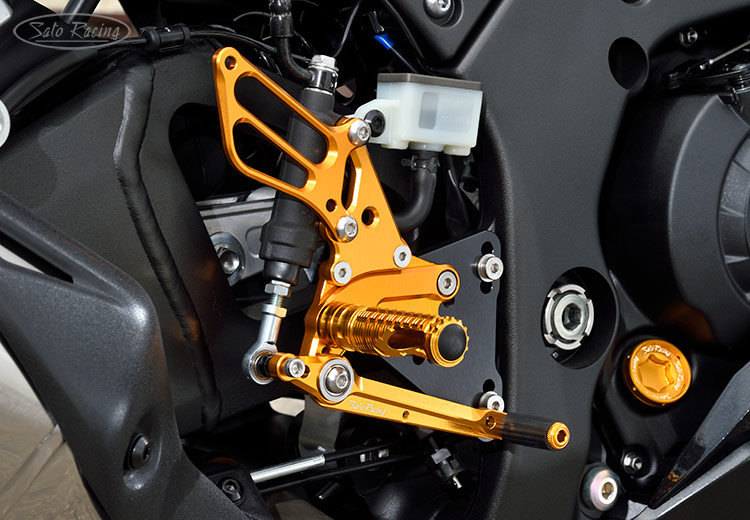

SATO RACING 'Race Concept' Rear Sets 2021 Kawasaki ZX-10R - Brake Side

2021 ZX-10R with Race Concept Rear Sets along with other SATO RACING parts
2021 ZX-10R with Race Concept Rear Sets along with other SATO RACING parts.

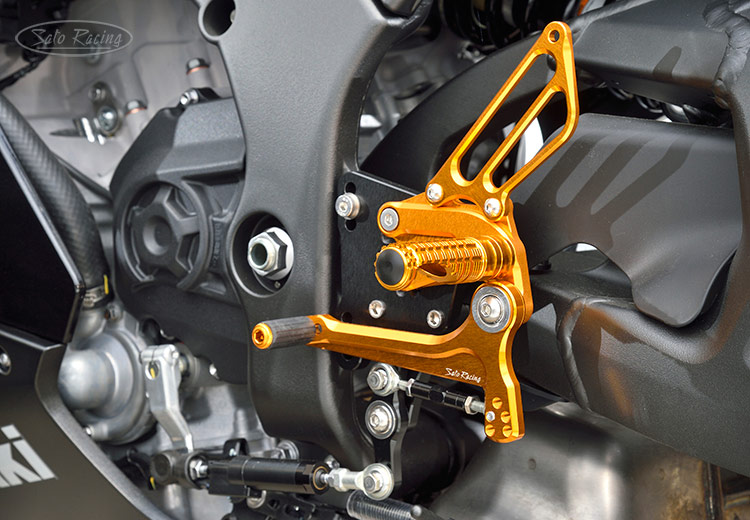

SATO RACING 'Race Concept' Rear Sets (Reverse Shift) for 2021 Kawasaki ZX-10R - L-Side
Race Concept Rear Sets (Reverse Shift version) part# K-ZX1021RCRSR-GD

These Rear Sets are designed to work seamlessly with the stock quick-shifter. The shift and
brake pedal use miniature double stainless bearings for smooth, precise lever actuation.

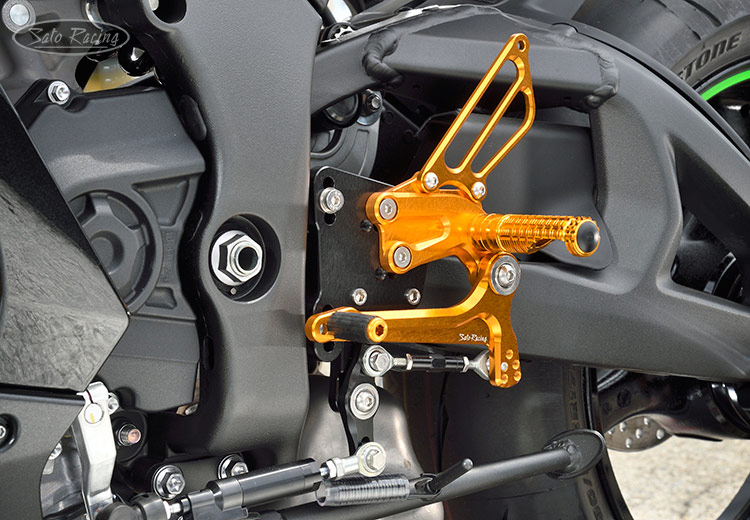

SATO RACING 'Race Concept' Rear Sets (Reverse Shift) for 2021 Kawasaki ZX-10R - L-Side
Race Concept Reverse Shift Rear Sets part# K-ZX1021RCRSR-GD
Multi-link shift linkage design provides a dedicated GP style reverse shifting pattern.
(Shown with optional
Cut-out style Racing Foot Pegs.)



STOCK SHIFT

BLACK
w/ GOLD accents
K-ZX1021RCRS-BK
$580
GOLD
w/ BLACK base plates
K-ZX1021RCRS-GD
$580

REVERSE SHIFT

BLACK
w/ GOLD accents
K-ZX1021RCRSR-BK
$600
GOLD
w/ BLACK base plates
K-ZX1021RCRSR-GD
$600





Click Here for important info about Sato color-anodized parts.





OPTIONS



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. Delrin End Cap is included separately, so you can add an end cap if you want, or leave it off if you prefer the open-ended look.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

black BLACK RCPEG-BK
$48
gold GOLD RCPEG-GD
$48

* Click Here for important info about Sato color-anodized parts.




------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



__________________________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the
illustrated parts list included with your Sato Rear Sets.
