ROYAL ENFIELD INT650 ('21- )
REAR SETS

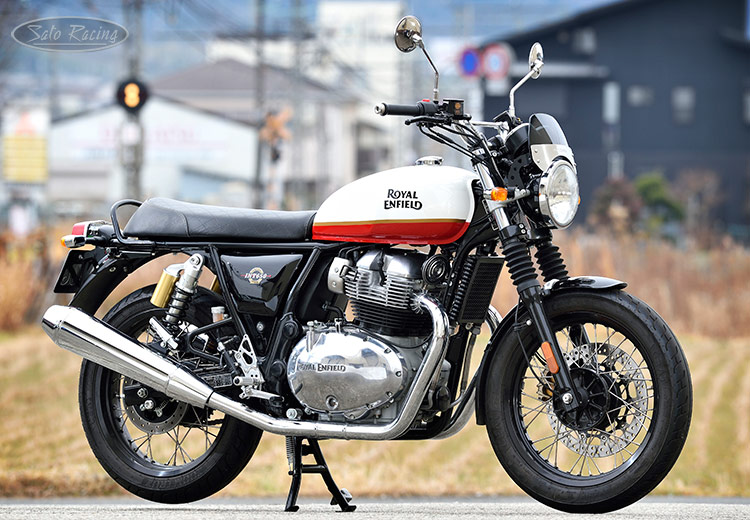

Royal Enfield INT650 with SATO RACING Rear Sets and other parts

SATO RACING Rear Sets for Royal Enfield INT650* features an extensively track-tested design, with components precision crafted out of light-weight, high strength anodized billet aluminum, with stainless steel hardware. Adjustable foot peg mount provides 3 peg positions that bring your feet higher up and significantly further back compared to the stock INT650 controls, for a sportier riding position. Choice of Black or Silver anodized finish.

*
This Rear Sets model will also technically fit the GT 650. The foot peg positions will be similar to stock or slightly forward when installed on the GT. (Fitment on the GT requires adding the stock INT650 gearchange clamp, shift rod and ball joint hardware).

POSITIONS
(INT650)

1 92.5mm Back
15mm Up
2 92.5mm Back
30mm Up
3 107.5mm Back
30mm Up

note: all measurements are in relation to stock position (0 mm).

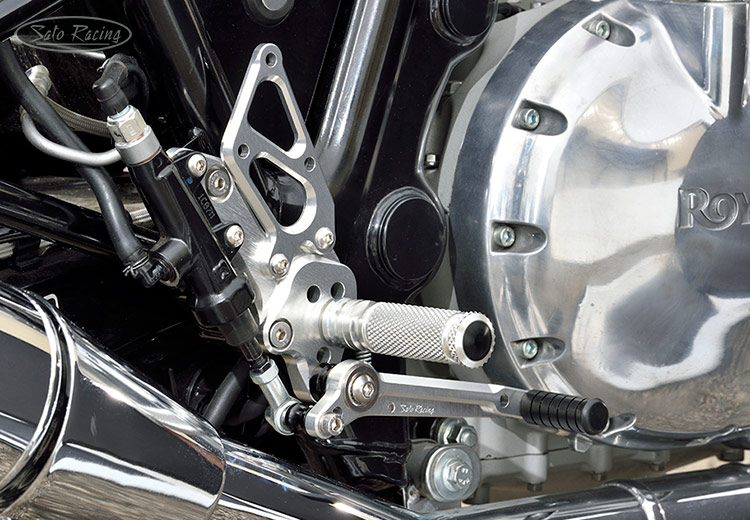

SATO RACING Royal Enfield INT650 Rear Sets [R]-side
The brake pedal and shifter use double miniature stainless bearings for smooth, precise lever actuation.

SATO RACING Royal Enfield INT650 Rear Sets [R]-side
The positions of the Foot Peg and Pedal Tip are adjustable, so you can find the ideal position for
your riding style.   These Rear Sets are compatible with the stock brake light switch.

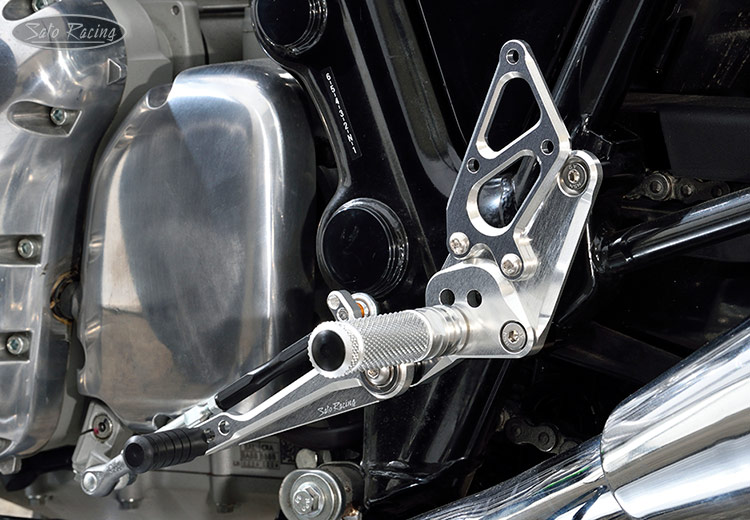

SATO RACING Royal Enfield INT650 Rear Sets [L]-side
Shift linkage provides a stock shift pattern.

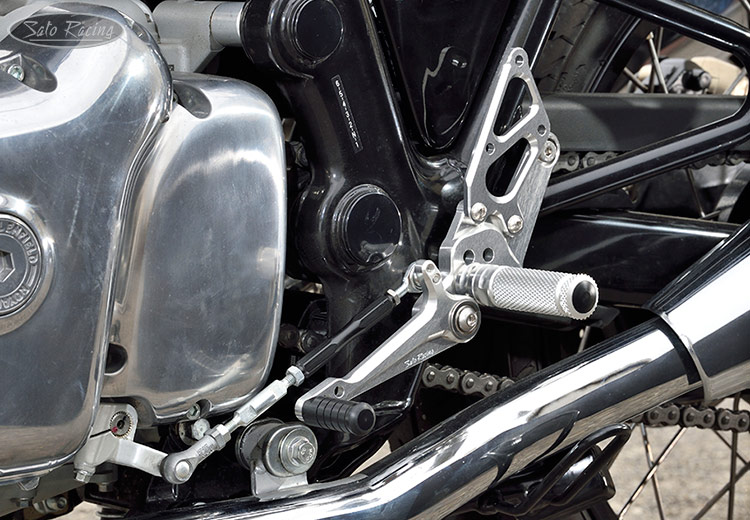

SATO RACING Royal Enfield INT650 Rear Sets [L]-side
Foot Pegs are finely knurled for excellent grip characteristics and a comfortable, intuitive feel.

The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such
as aluminum Pedal Tips with fluted rubber sleeves, are an available option:  More Details

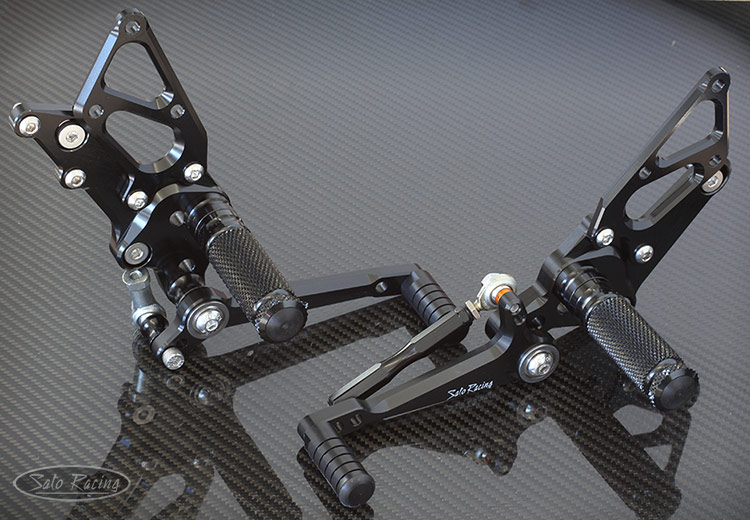

SATO RACING Royal Enfield INT650 Rear Sets in Black
Choice of Black or Silver anodized finish.




BLACK RE-650RS-BK
$465
SILVER RE-650RS-SV
$465


Click Here for important info about Sato color-anodized parts.





_______________________________________________________________

OPTIONS

_______________________________________________________________



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48



_______________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



_______________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated
parts list included with your SATO RACING Rear Sets.

Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG [BLACK] PEG-BK
$42
FOOT PEG [SILVER] PEG-SV
$42
PEG COLLAR 15 [BLACK]
(#32)
PEGCLR-15B
$15
PEGCLR-15 PEG COLLAR 15 [SILVER]
(#32)
PEGCLR-15S
$15
FBT-M840 FLAT HEAD M8-40mm
(Foot peg bolt)
FBT-M840
$2.50
ST-001D18 PEDAL TIP (DELRIN)
(#12)
ST-001D18
$15
LSBT-M620 LOW SOCKET HEAD M6-20mm
(For Pedal Tip)
LSBT-M620
$4.00

For replacement parts not listed on our website, contact Sato Racing for an estimate.
