SUZUKI SHIFT ARM


SATO RACING Shift Arm for Suzuki models is machined from high strength billet alimunum and anodized in a deep Black finish. Includes a rod end and attachment hardware. Works great with Sato Rear Sets! Features 2 mounting positions for attaching the rod end, so you can adjust the shift stroke to your preference. (Use stock flange head bolt to tighten Shift Arm onto shift spindle). 2 versions of this Shift Arm are available:

Part#
S-CA (includes male rod end)
Fits*:
GSX-R600/ 750 ('06-16)
GSX-R1000 ('09-16)

Part#
S-CA2 (includes female rod end)
Fits*:
GSX-S1000/F
GSX-S750 '15-'16 (GSR750 '11-'16)
GSX-R1000 ('00-'08)
GSX1100S/ GSX-R1100 / TL1000
HAYABUSA / RF900/ GSF/Bandit
(does not fit GSX1250)

*Stock shift arm / shift rod setup. In some cases you might require a different type of rod end than recommended, such as if you are using it with an aftermarket quick shifter.

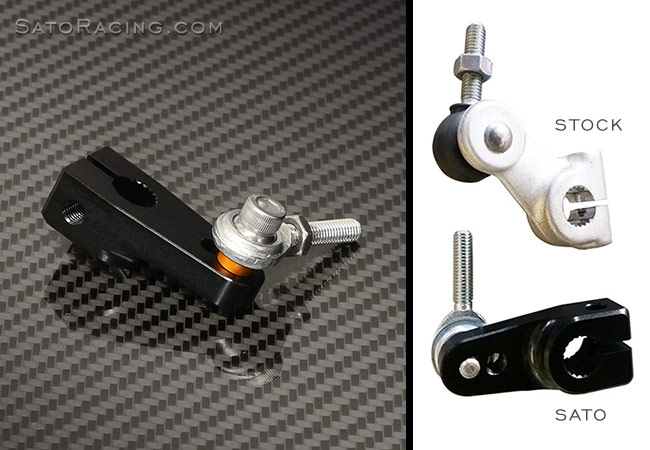

There are 2 mounting holes on the Shift Arm: Attaching the rod end to the inner hole will give you a shorter shift stroke, with a corresponding increase in pedal force required due to having less leverage, while attachment to the outer hole would would result in a longer stroke with a lighter shift feel.   (Shift Arm part# S-CA shown above)

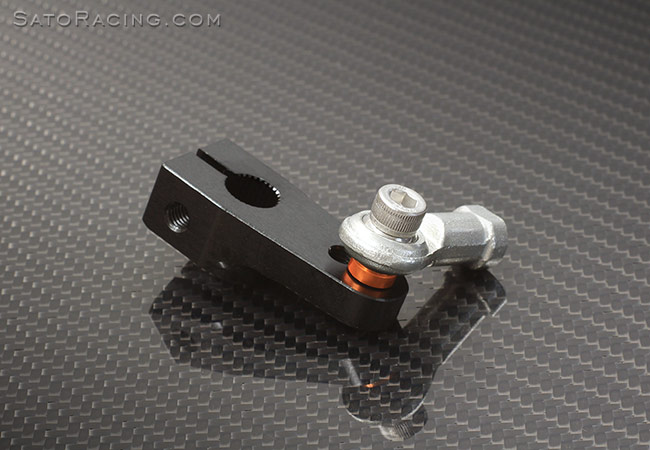

Shift Arm part# S-CA2 includes a female rod end.

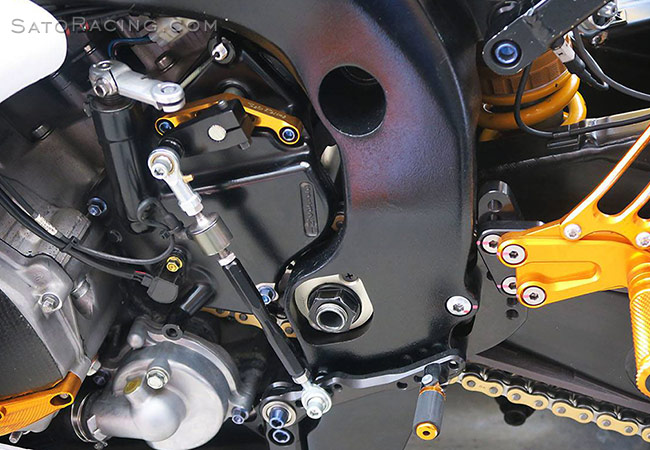

A protoype version of our Shift Arm kit is seen here on the Team Kagayama GSX-R1000
endurance race bike. Also shown are SATO GSX-R1000 Shift Spindle Holder, and SATO
GSX-R1000 'Race Concept' edition Rear Sets with our Folding-style Pedal Tip installed.



SHIFT ARM
(+ Male Rod End)
S-CA
$75
SHIFT ARM
(+ Female Rod End)
S-CA2
$75
