HONDA CBR600RR ('07-'08)
REAR SETS (original version)
| SATO RACING CBR600RR '07-'08 Rear Sets feature components made of lightweight, high strength billet aluminum anodized in Black or Gold finish. The shift and brake pedals have double miniature stainless bearings for smooth, precise movement. Knurled footpegs provide optimal grip, along with a comfortable, inuitive feel. You can select from 12 adjustable footpeg positions, ranging from stock-equivalent position to more aggressive positions higher and further back than stock. Shioft linkage can be set up for stock shift or reverse / race shift pattern. |
![Sato Racing CBR600RR '07-'08 Rear Sets [R]](07cbr600rrrsgdr.jpg "Sato Racing CBR600RR '07-'08 Rear Sets [R]")

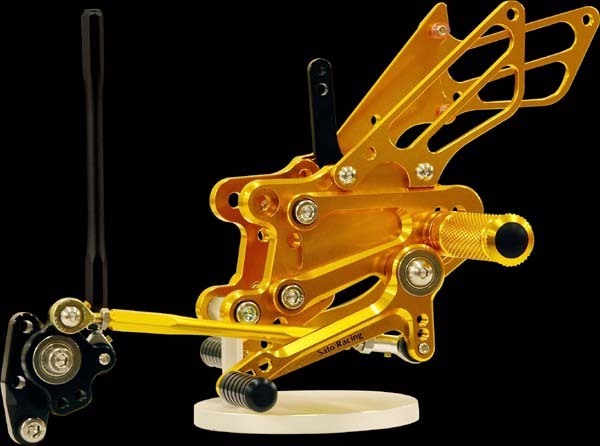

![Sato Racing CBR600RR '07-'08 Rear Sets [L]](07cbr600rrrsgdl.jpg "Sato Racing CBR600RR '07-'08 Rear Sets [L]")
| 1 | 0 mm | 0 mm |
| 2 | 0 mm | 10mm Up |
| 3 | 10mm Back | 10mm Up |
| 4 | 3mm Back | 15mm Up |
| 5 | 3mm Back | 25mm Up |
| 6 | 13mm Back | 25mm Up |
| 7 | 23mm Back | 15mm Up |
| 8 | 23mm Back | 25mm Up |
| 9 | 33mm Back | 25mm Up |
| 10 | 26mm Back | 30mm Up |
| 11 | 26mm Back | 40mm Up |
| 12 | 36mm Back | 40mm Up |
note: all measurements are in relation to stock position (0 mm).
![Sato Racing CBR600RR '07-'08 Rear Sets [R]](07cbr600rrbkfitr1.jpg "Sato Racing CBR600RR '07-'08 Rear Sets [R]")
(Rght side heel guard included)

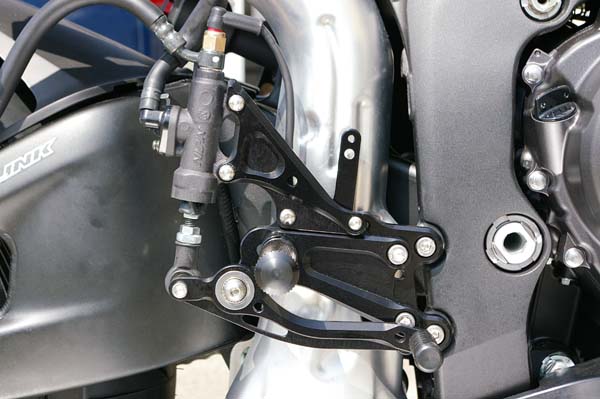

![Sato Racing CBR600RR '07-'08 Rear Sets [R]](07cbr600rrbkfitr2.jpg "Sato Racing CBR600RR '07-'08 Rear Sets [R]")
(Right side heel guard included)

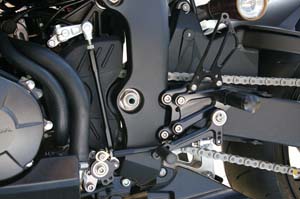

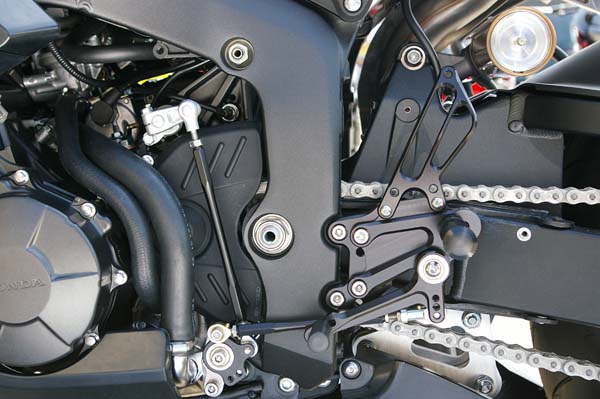

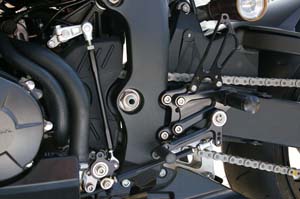

You can change the shifting pattern by relocating
the SATO SHIFT ROD to the upper or lower hole.
| BLACK | H-CBR607RS-BK |
SOLD OUT |
| GOLD | H-CBR607RS-GD |
SOLD OUT |
| NOTE: Rear Sets part# H-CBR607RS has been phased out and has since been replaced with Rear Sets part# H-CBR613RS, which also fits 2013 and up CBR600RR, in addition to the 2007-08 model. |
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out indvidual part names and numbers, see the illustrated
parts list included with your Sato Racing Rear Sets, or view the PDF:
Parts List - H-CBR607RS
Some replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $48 |
 |
 |
PEG COLLAR 12 (BK/ SV/ GD) (L-side #16 / R-side #13) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-45mm (Footpeg bolt) |
HBT-M845 $2.00 |
|
 |
SPLIT WASHER M8 |
SWS-8 $1.20 |
|
 |
BEARING COLLAR SUS (R-side #15) |
BGCLR-SUS $6.50 |
|
 |
BRAKE PEDAL (R-side #16) |
BPD-3 $80 |
|
 |
FLAT HEAD M6-15mm (R-side #22) |
FBT-M615 $1.50 |
|
 |
FLAT HEAD M6-10mm (R-side #4, #23) |
FBT-M610 $1.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $16.50 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M6-15mm (L-side #5) |
BBT-M615 $1.50 |
|
 |
SOCKET HEAD M6-20mm (L-side #8) |
SBT-M620 $1.50 |
|
 |
[L] STEP PLATE (BK/ SV/ GD) (L-side #14) |
H-CBR607SP-L H-CBR613SP-L $105 |
|
 |
SHIFT PEDAL (later style) (BK/ SV/ GD) (L-side #17) |
SPD-0912 $80 |
|
 |
FEMALE ROD END M6 (L-side #21) |
RDED-F6 $15 |
|
 |
JAM NUT M6 (L-side #22) |
JNT-6 $1.75 |
|
 |
STUD M6-45mm (L-side #23) | STUD-M6 $2.50 |
|
 |
SHIFT ROD 130 (BK/ SV/ GD) (L-side #24) |
SRD-130 $39 |
|
|
SHIFT ROD 160 (BLACK) (L-side #25) |
SRD-160-B $39 |
|
 |
REVERSE MALE ROD END M6 (L-side #26) |
RDED-M6L $12.50 |
|
|
REVERSE JAM NUT M6 (L-side #27) |
JNT-6L $2.50 |
|
 |
SHIFT LINK (L-side #28) |
SK-2 $65 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) (optional part) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
