HONDA CBR1000RR-R   ('20- )
REAR SETS

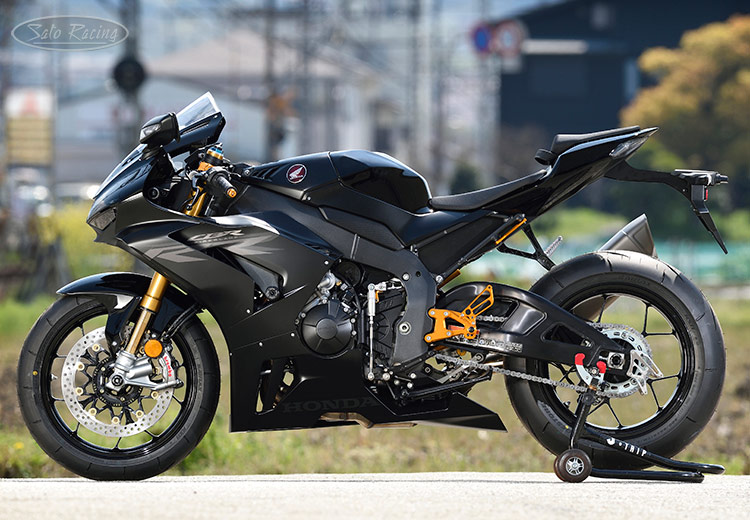

SATO RACING Rear Sets for 2020+ Honda CBR1000R-R Fireblade/ SP features a track-engineered and competition-ready design, with components precision CNC-machined from high strength anodized billet aluminum, with stainless steel bolts and hardware. Modular adjustable design lets you select from multiple foot peg positions in a useful range so you can find the ideal position for your riding style. Optimized for use with the stock quickshifter, this kit can be set up for stock shift or GP-style reverse shift pattern. Choice of Black, Silver or Gold anodized finish.

A Shift Spindle Holder is an available option for our CBR1000RR-R Rear Sets, helping reduce play in the shift spindle for smoother, more consistent shift action in heavy duty use.

POSITIONS

1 10mm Forward 7mm Down
2 0mm 7mm Down
3 10mm Forward 5mm Up
4 0mm 5mm Up
5 2mm Back 0mm Up
6 12mm Back 0mm Up
7 2mm Back 12mm Up
8 12mm Back 12mm Up

note: all measurements are in relation to stock foot peg position 0 mm).

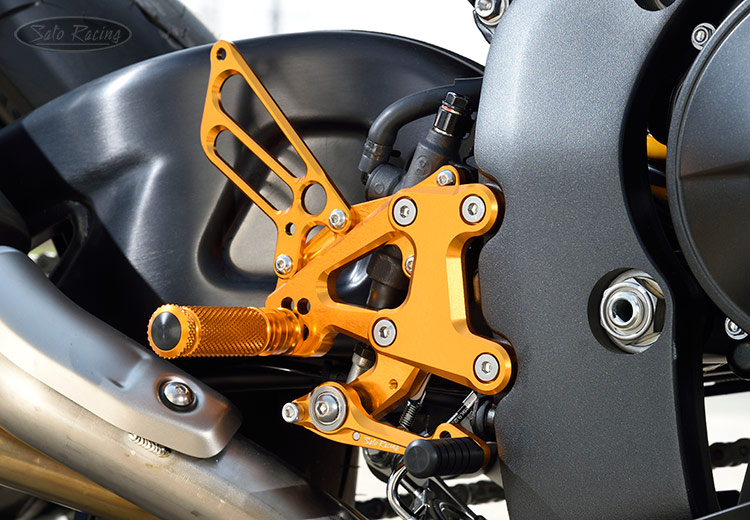

SATO RACING CBR1000RR-R Rear Sets [R]-side
The positions of the foot pegs and the pedal tips can be adjusted to your preference.
'Street'-friendly design - compatible with the stock brake light pull switch and ABS.

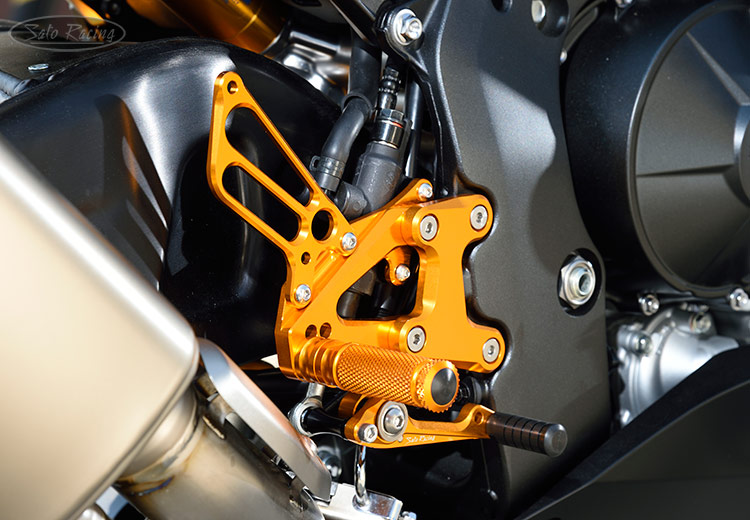

SATO RACING CBR1000RR-R Rear Sets [R]-side
Double stainless bearings are utilized in the shift link and brake pedal for smooth, precise
lever actuation with a solid, high quality feel.

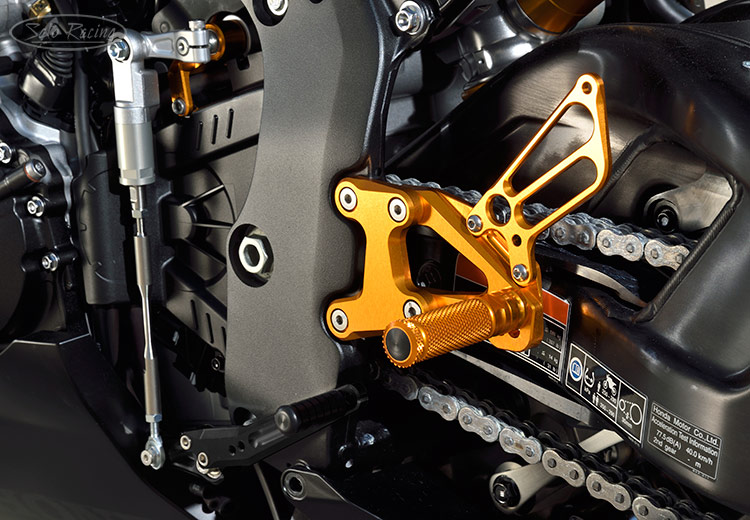

SATO RACING CBR1000RR-R Rear Sets [L]-side
You can switch to GP-style reverse shift pattern by moving the shift rod to the opposite positions on the
shift link. This kit is fully compatible with the stock quickshifter linkage (No modifications necessary).

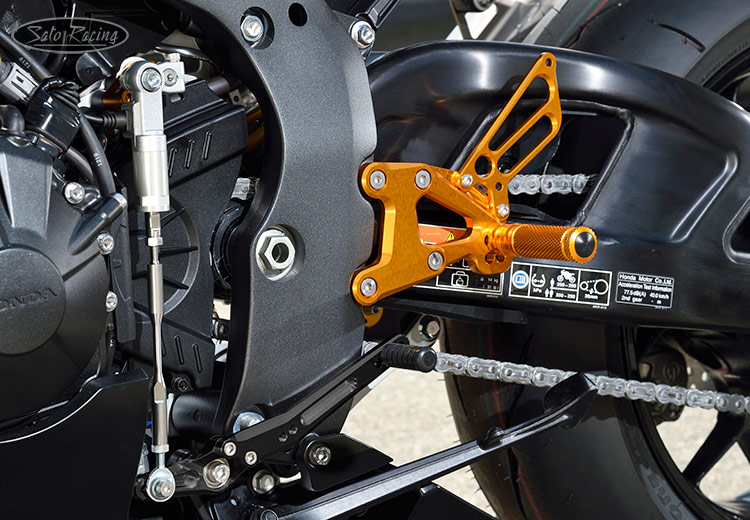

SATO RACING CBR1000RR-R Rear Sets [L]-side
The Foot Pegs have a finely knurled pattern for a comfortable, intuitive feel and good grip.

The standard Pedal Tips are made of tough Delrin plastic. Additional styles of Pedal Tips,
such as aluminum Pedal Tips with fluted rubber sleeves, are an option:  More Details
(Rear Sets shown installed with our optional Shift Spindle Holder).

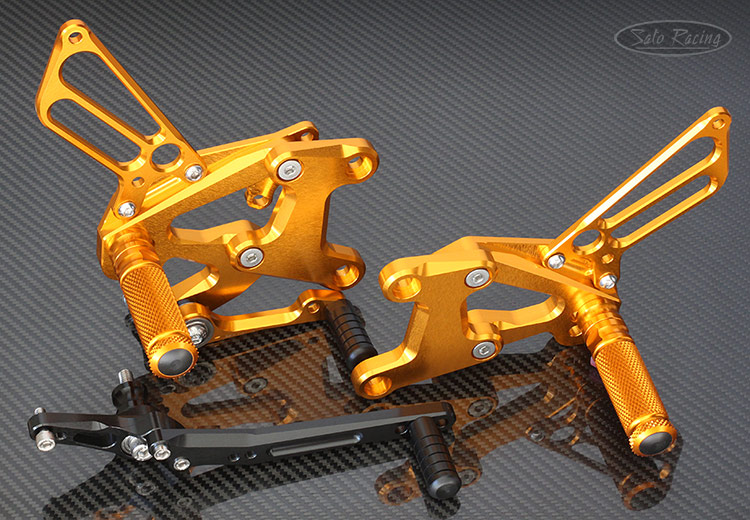

SATO RACING CBR1000RR-R Rear Sets in Gold




BLACK H-CBR120RS-BK
$630
SILVER H-CBR120RS-SV
$630
GOLD H-CBR120RS-GD
$630


* Click Here for important info about Sato color-anodized parts.




__________________________________________________________________

OPTIONS

__________________________________________________________________



HONDA CBR1000RR-R ('20- )
SHIFT SPINDLE HOLDER

SATO RACING Shift Spindle Holder for 2020+ CBR1000RR-R Fireblade/ SP reinforces the shift spindle shaft to reduce lateral play for more precise operation and extra durability in heavy duty use. Spindle Holder is precision machined out of high strength Gold anodized billet aluminum with a Teflon inner bushing.

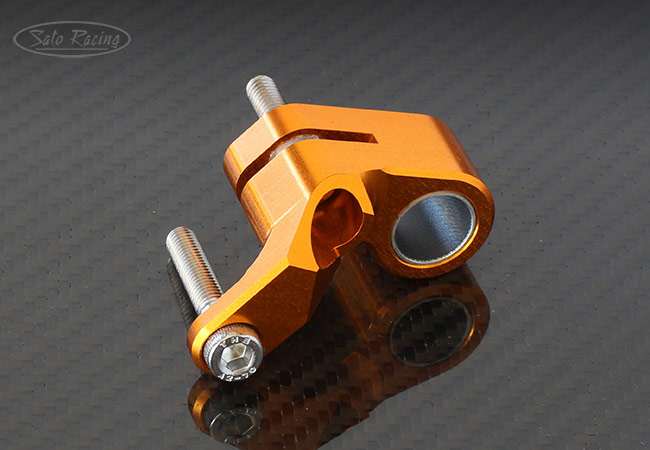

SATO RACING Shift Spindle Holder for '20 CBR1000RR-R

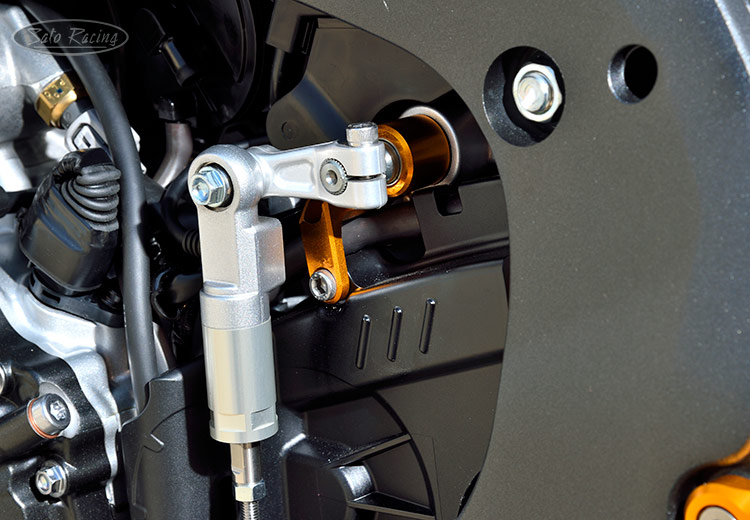

SATO RACING Shift Spindle Holder for '20 CBR1000RR-R


SHIFT SPINDLE HOLDER
[GOLD]
H-CBR120RS-SHDR
$140









------------------------------------------------------------------------------------------




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.




_______________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



------------------------------------------------------------------------------------------

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the
llustrated parts list included with your SATO RACING Rear Sets.

------------------------------------------------------------------------------------------
