BMW S1000RR ( -'14) / HP4
REAR SETS - Version2 (Forward/ Up)

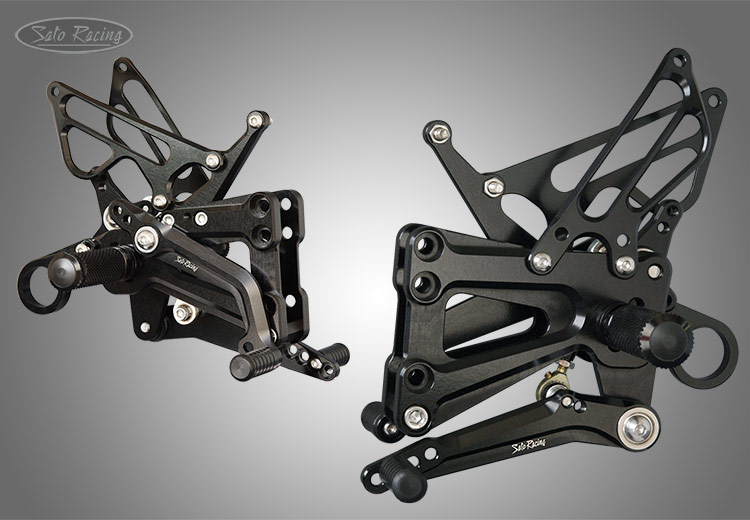

SATO RACING 'Version 2' design Rear Sets for 2009-2014 S1000RR and HP4 feature components made of light-weight high strength billet aluminum anodized in your choice of Black, Silver or Gold. These "Forward/Up"-type Rear Sets have a one-piece step plate design that provides a higher and more forward range of foot peg positions compared to our original S1000RR Rear Sets. As with that model, this model can be set up for stock shift pattern or reverse shift pattern. We offer a kit compatible with the early non-ABS version of S1000RR, in addition to the ABS-equipped models.

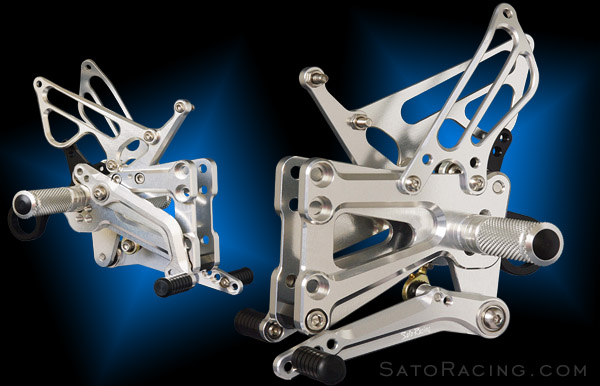

SATO RACING Forward Up Rear Sets for 2014 and earlier S1000RR and HP4

POSITIONS

1 10mm Forward 0mm
2 10mm Forward 10mm Up
3 10mm Forward 20mm Up
4 10mm Forward 30mm Up
5 0mm 0mm
6 0mm 10mm Up
7 0mm 20mm Up
8 0mm 30mm Up
9 0mm 40mm Up

note: all measurements are in relation to stock position (0 mm).

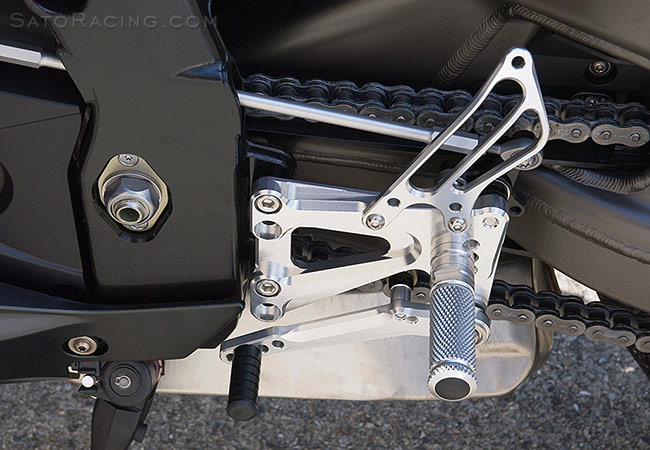

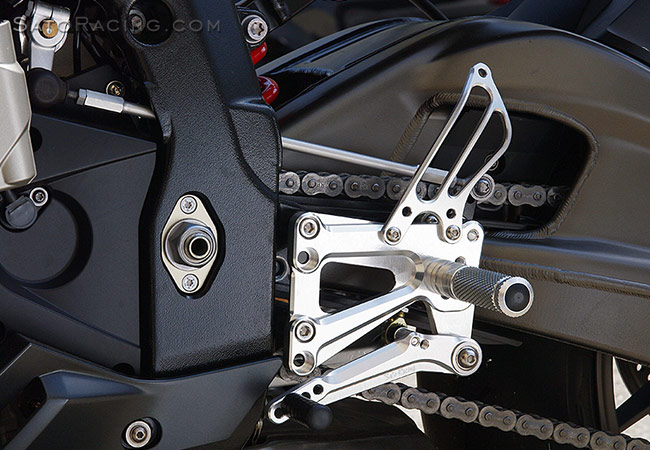

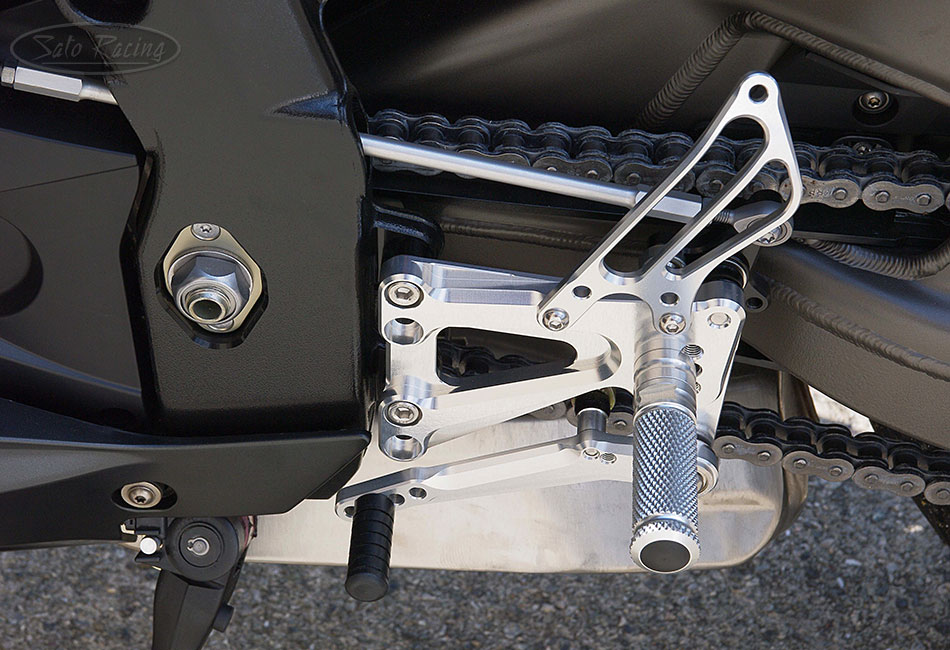

S1000RR with SATO RACING Forward Up Rear Sets in Silver
The Foot Peg and Pedal Tip positions are fully adjustable.
Base Plate position can be adjusted vertically on the frame.

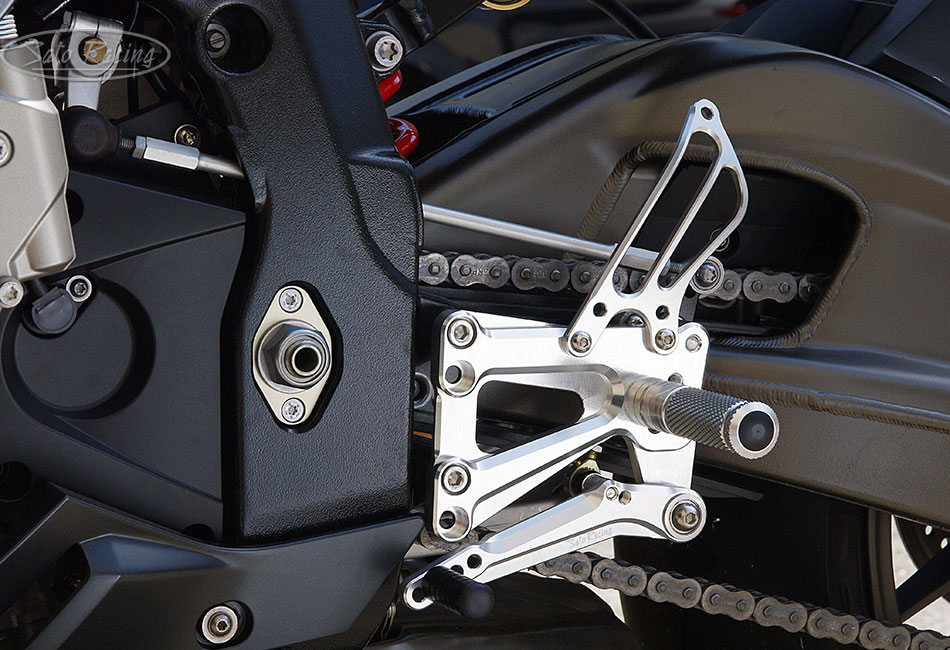

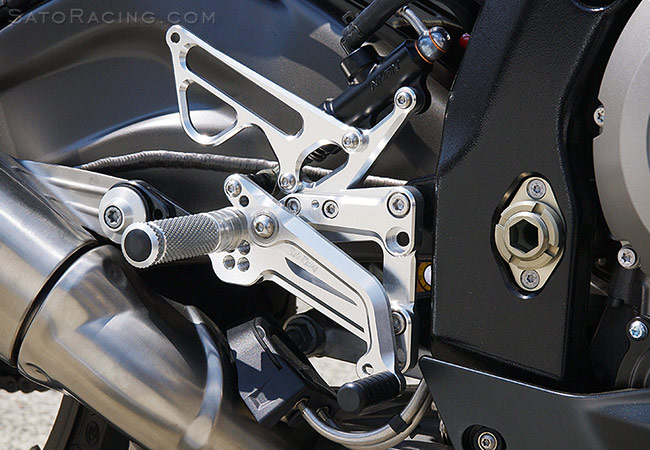

S1000RR with SATO RACING Forward Up Rear Sets in Silver
Our billet aluminum foot pegs have a finely knurled pattern for a great feel.

The standard Pedal Tips are made of tough Delrin. Other styles of Pedal Tips,
including aluminum Pedal Tips with fluted rubber grips, are available options.

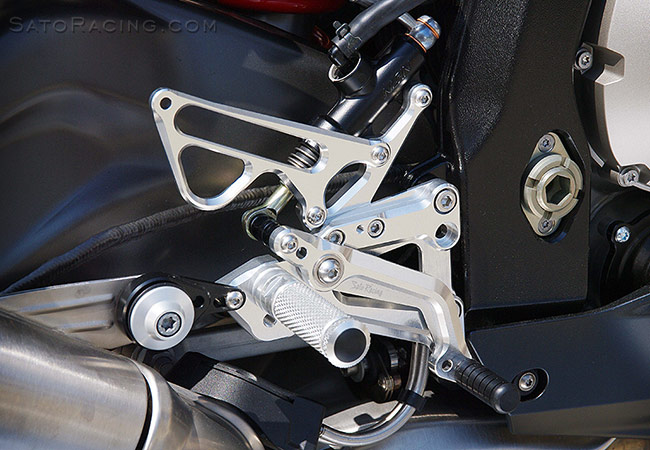

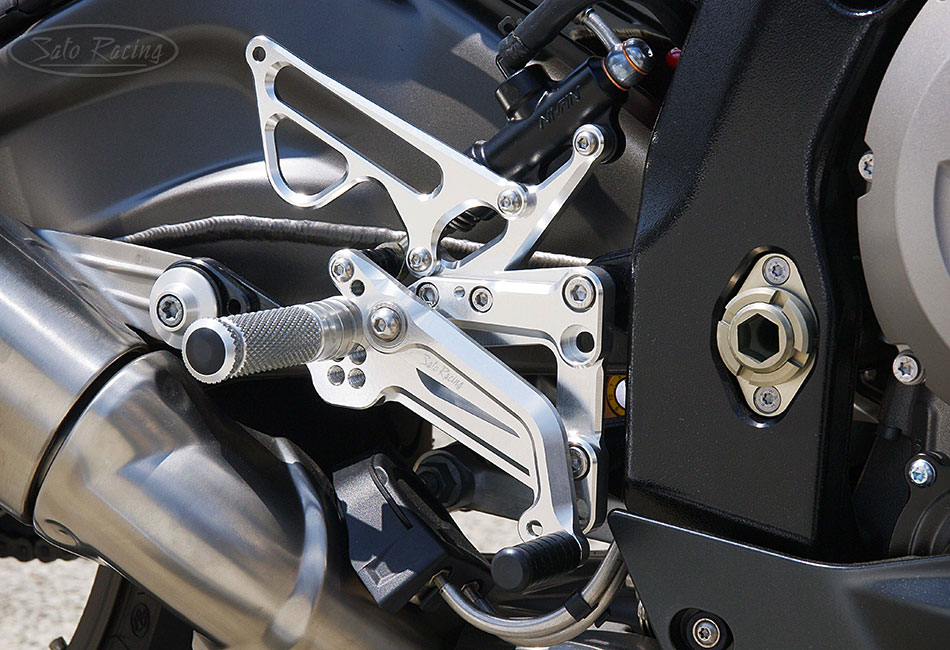

S1000RR with SATO RACING Forward Up Rear Sets in Silver
The shift and brake pedals have double stainless bearings for smooth operation and a premium feel.

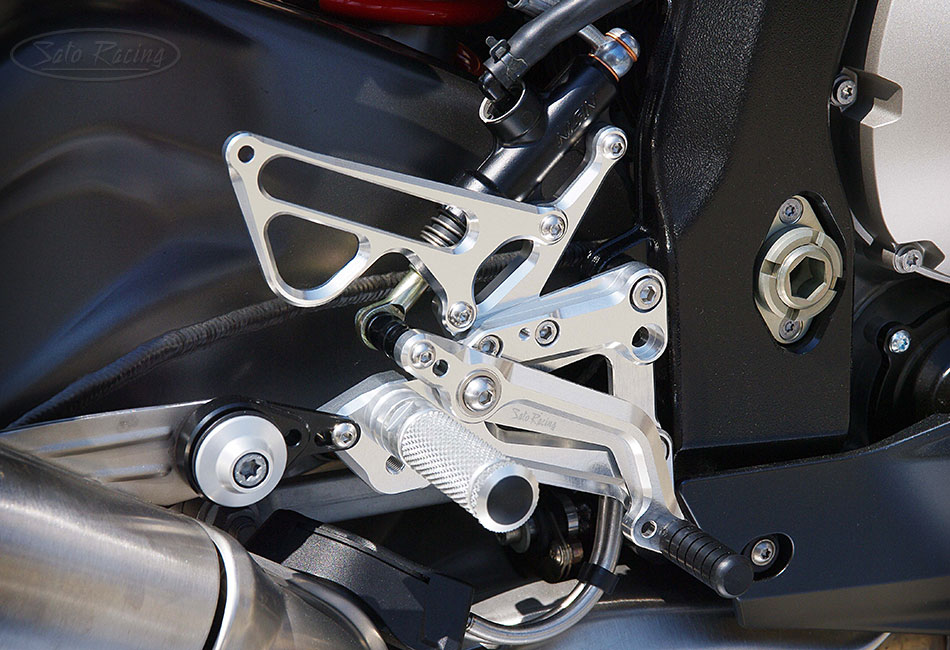

S1000RR with SATO RACING Forward Up Rear Sets in Silver
Quick shifter-compatible shift linkage lets you use either stock or reverse (GP) shift pattern
(see animated GIF below)

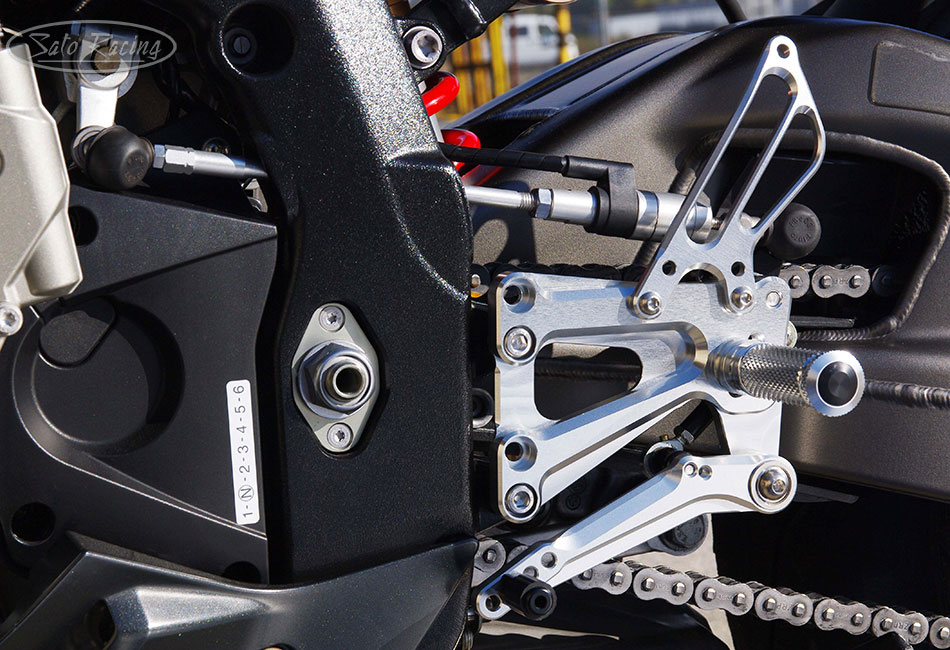

S1000RR with SATO RACING Forward Up Rear Sets in Silver

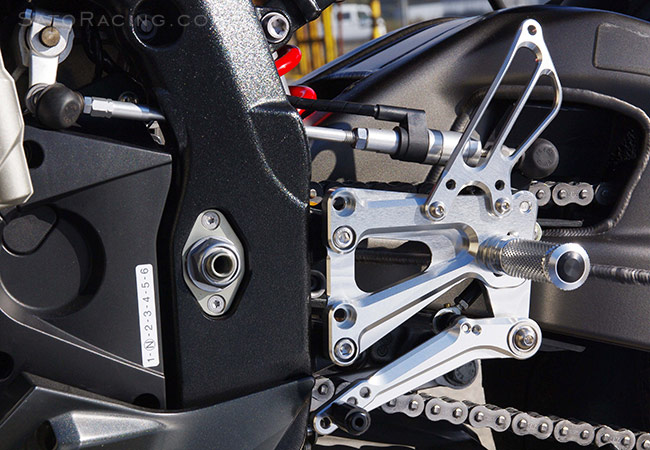

2010 ABS version.  Shown with optional Rubber Pedal Tip (Short style).

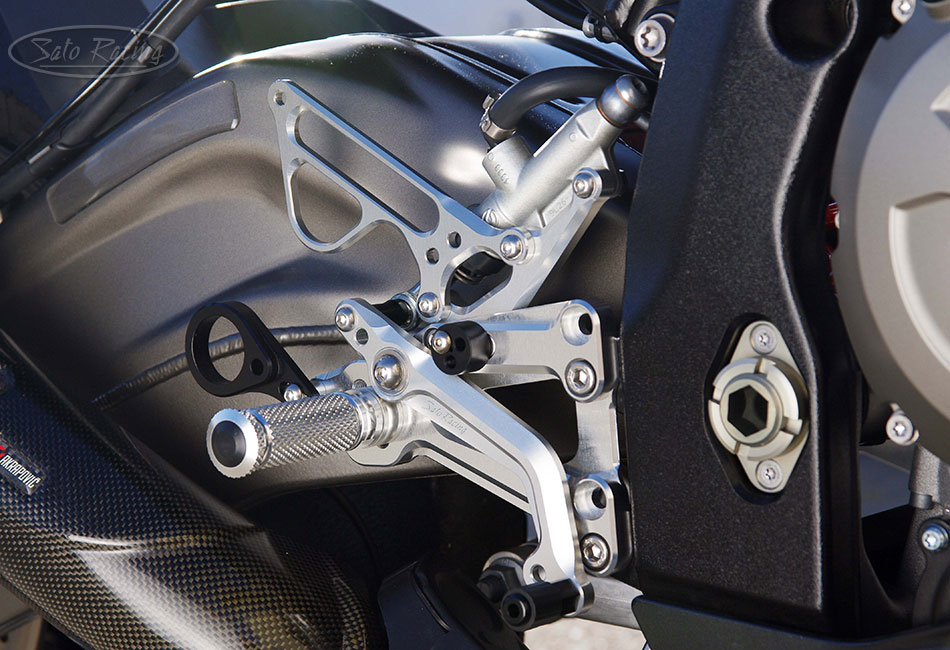

S1000RR with SATO RACING Forward Up Rear Sets in Silver

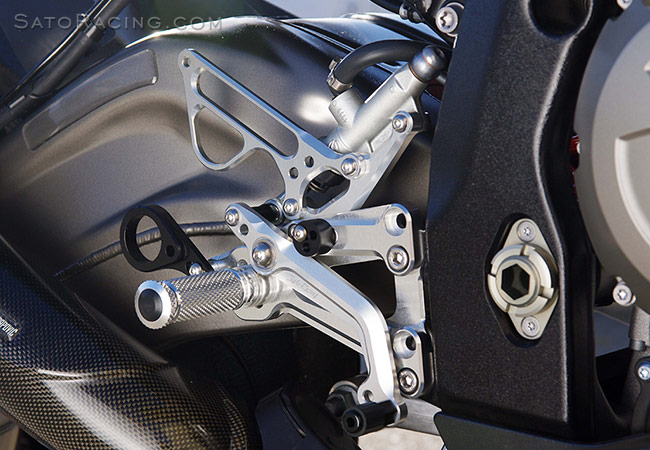

2010 ABS version.  Shown with optional Rubber Pedal Tip (Short style).




You can switch from stock shift to reverse shift pattern
by relocating the shift rod to the opposite hole.




ABS Rear Sets

BLACK BMW-S1RSFA-BK
$630
SILVER BMW-S1RSFA-SV
$630
GOLD BMW-S1RSFA-GD
$630

non-ABS Rear Sets
(for early S1000RR)

BLACK BMW-S1RSF-BK
$630
SILVER BMW-S1RSF-SV
$630
GOLD BMW-S1RSF-GD
$630

(ABS Rear Sets is compatible with the stock brake light switch. A mechanical
brake light switch is included with the non-ABS version of these Rear Sets)




______________________________________________________________________

OPTIONS

______________________________________________________________________





PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



______________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets, or view the PDF:

ABS version  |  Non-ABS version


Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG
(BK/ SV/ GD)
PEG
$42
STUD BOLT M8-40
(Foot Peg bolt)
STBT-40
$4.50
PEDAL TIP (DELRIN) ST-001D18
$15
BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)


______________________________________________________________________

More Sato Racing items for 2009-14 BMW S1000RR

'Race Concept' Rear Sets Rear Sets Direct Shift Pedal
