HONDA CB1000R ('08-'16)
REAR SETS
| SATO RACING Rear Sets for 2008-16 Honda CB1000R are precision CNC-machined from lightweight, high strength billet aluminum and anodized in your choice of Black, Silver (natural metal), or vivid Gold finish. Modular step plate design lets you select from 6 adjustable positions that can bring your feet higher up and further back compared to stock, for a sportier riding position ideally suited for the high speeds and extreme lean angles encountered on the track. Easily switch to GP-style reverse shift pattern too. |
| 1 | 0mm Back (stock position) |
20mm Up (0.8" Up) |
| 2 | 15mm Back (0.6" Back) |
20mm Up (0.8" Up) |
| 3 | 6.5mm Back (0.25" Back) |
30mm Up (1.2" Up) |
| 4 | 21.5mm Back (0.8" Back) |
30mm Up (1.2" Up) |
| 5 | 12.5mm Back (0.5" Back) |
40mm Up (1.6" Up) |
| 6 | 27.5mm Back (1.1" Back) |
40mm Up (1.6" Up) |
note: all measurements are in relation to stock position (0 mm).

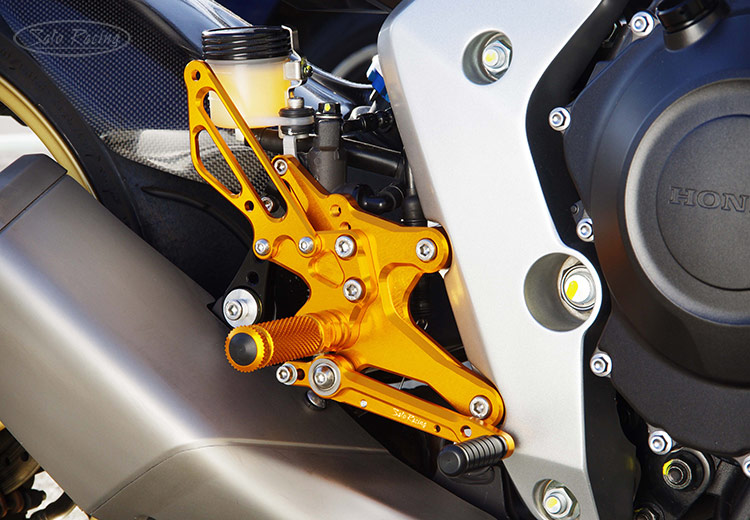

| The shift and brake pedals have miniature double stainless bearings for smooth, precise lever action with a solid feel. These Rear Sets are compatible with the CB1000R's stock brake light switch. |

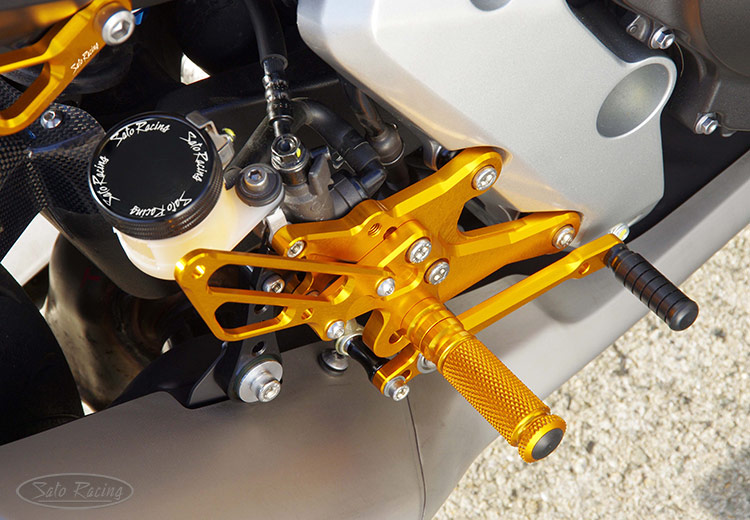

| The foot pegs feature a finely knurled pattern with excellent grip characteristics. The standard Pedal Tips are made of tough Delrin. Additional Pedal Tip styles, such as aluminum with rubber grips, are available as options. Also seen in this photo: Brake Fluid Reservoir Cap part# FC-N52-B |

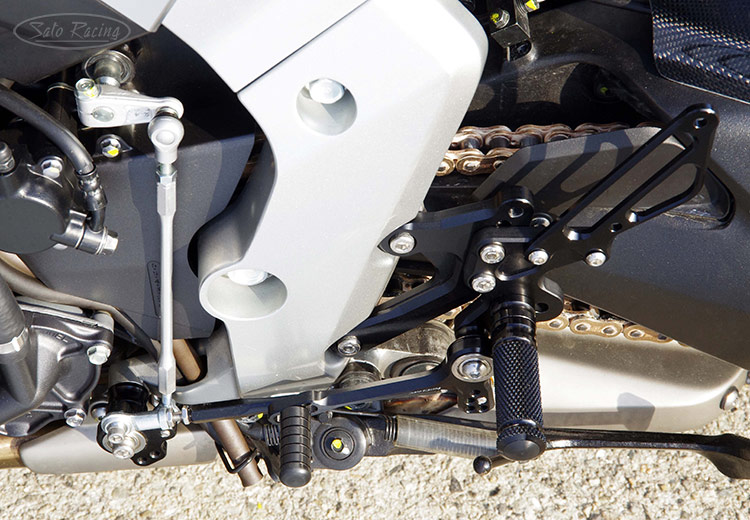

| Modular design means there are 3 adjustable mounting positions for the Step Plate. Additionally, the Foot Peg position is adjustable 2 ways, and the Shift Pedal mounting position on the Step Plate can also be moved forward or back. Even the Pedal Tip mounting point can be changed to your preference, ensuring that you can find the ideal position for your height and riding style. (Note: Vertical shift rod is the stock Honda part) |

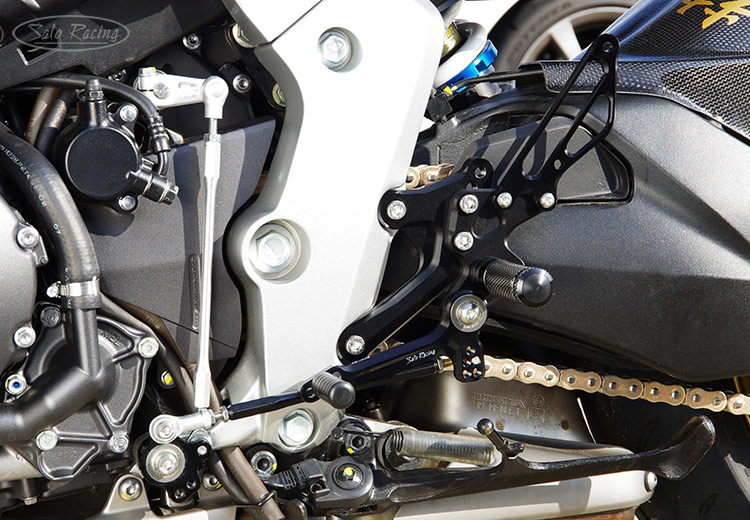

| These Rear Sets can be set up for either stock shift pattern (shown above), or GP-style reverse shift pattern by relocating where the Sato shift rod attaches to the shift link. See the animated GIF below which illustrates this shift link design on another Honda model. |
| BLACK | H-CB1000RS-BK $615 |
 |
| SILVER | H-CB1000RS-SV $615 |
|
| GOLD* | H-CB1000RS-GD $615 |
|
* Click Here for important info about Sato GOLD-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD * | RCPEG-GD $48 |
|
* Click Here for important info about Sato GOLD-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [SILVER] | PEG-SV $42 |
|
 |
FOOT PEG [GOLD] | PEG-GD $42 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
SHIFT ROD 160 [BLACK] (#9) |
SRD-160-B $39 |
|
 |
ROD END COLLAR 3 (#19) |
RDED-CLR3 $6.00 |
|
 |
ROD END COLLAR 23 (#21) |
RDED-CLR23 $8.00 |
|
 |
PEG COLLAR 15 [BLACK] (#23) |
PEGCLR-15B $15 |
|
 |
PEG COLLAR 15 [SILVER] (#23) |
PEGCLR-15S $15 |
|
 |
PEG COLLAR 15 [GOLD] (#23) |
PEGCLR-15G $15 |
|
 |
BEARING COLLAR 10s [BLACK] (#24) |
PEGBGCLR-10SB $10.00 |
|
 |
PEG WASHER - M8 (#27) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 (#28) |
SWS-8 $1.20 |
|
 |
SOCKET HEAD M5-30mm (#29) |
SBT-M530 $1.50 |
|
 |
SOCKET HEAD M6-18mm (#31) |
SBT-M618 $2.00 |
|
 |
SOCKET HEAD M6-20mm (#32) |
SBT-M620 $1.50 |
|
 |
SOCKET HEAD M6-50mm (#33) |
SBT-M650 $2.00 |
|
 |
SOCKET HEAD M8-16mm (#34) |
SBT-M816 $2.00 |
|
 |
SOCKET HEAD M8-20mm (#35) |
SBT-M820 $1.50 |
|
 |
SOCKET HEAD M8-25mm (#36) |
SBT-M830 $2.00 |
|
 |
SOCKET HEAD M8-30mm (#37) |
SBT-M830 $2.00 |
|
 |
SOCKET HEAD M8-50mm (#38) |
SBT-M830 $2.00 |
|
 |
BUTTON HEAD M6-10mm (#40) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-20mm (#41) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M6-25mm (#42, for R-side Pedal Tip) |
BBT-M625 $1.50 |
|
 |
BUTTON HEAD M8-25mm (#43) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-35mm (#44) |
BBT-M835 $2.00 |
|
 |
HEX HEAD M8-40mm (#46, L-side Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
FLAT HEAD M8-40mm (#47, R-side Foot Peg bolt) |
FBT-M840 $2.50 |
|
 |
STUD M6 (#49) | STUD-M6 $2.50 |
|
 |
NUT M5 (#50) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#51) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#52) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#53) |
LNT-6 $1.50 |
|
 |
M6 MALE ROD END (#54) |
RDED-M6 $12.50 |
|
 |
M6 MALE REVERSE ROD END (#55) |
RDED-M6L $12.50 |
|
 |
FEMALE ROD END M6 (#56) |
RDED-F6 $15 |
|
 |
FEMALE ROD END 6-M8 (#57) |
RDED-F6-8 $25 |
|
 |
RETURN SPRING 40 (#58) |
RS-RSP $8.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
