KTM RC390 ('22- )
REAR SETS
| SATO RACING Rear Sets for 2022-23 KTM RC390 features a track-engineered, competition-ready design, with components precision machined out of lightweight, high strength anodized billet aluminum, with stainless steel fasteners. Modular step plate design lets you select from 8 unique foot peg positions in a wide adjustment range, bringing your feet Up and Back compared to stock, for a more aggressive riding position ideally suited for the fast straights and steep lean angles encountered on the track. Our standard Rear Sets provide a stock shift pattern. Reverse Shift Rear Sets are also available, providing a dedicated reverse (GP-style) shift pattern. Choice of all-Black anodized finish, or Gold finish over Black anodized Base Plates. |
POSITIONS
| 1 | 28mm Back | 40mm Up |
| 2 | 40mm Back | 30mm Up |
| 3 | 40mm Back | 40mm Up |
| 4 | 40mm Back | 50mm Up |
| 5 | 40.5mm Back | 40mm Up |
| 6 | 52.5mm Back | 30mm Up |
| 7 | 52.5mm Back | 40mm Up |
| 8 | 52.5mm Back | 50mm Up |
note: all measurements are in relation to stock position (0 mm).

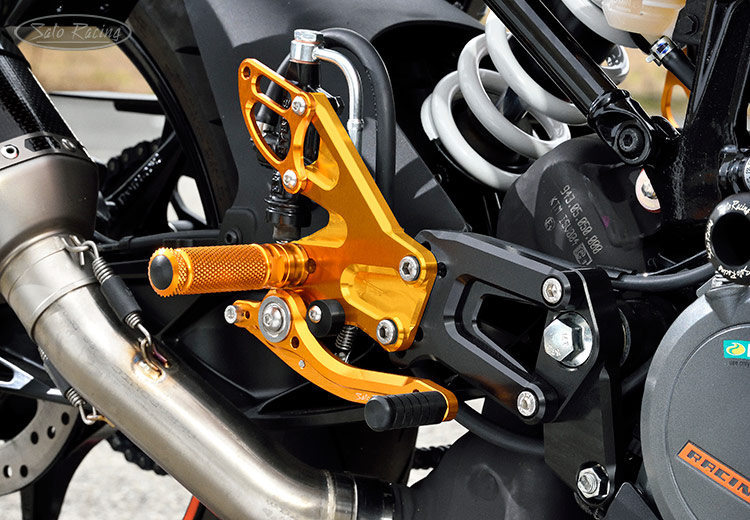

![SATO RACING KTM RC390 '22- Rear Sets [R]-side](pics/KTM-RC39022RS-GD_fitR1_750x520.jpg "SATO RACING KTM RC390 '22- Rear Sets [R]-side")
The shift and brake pedals use double miniature stainless bearings
for smooth, precise lever actuation with a solid feel.

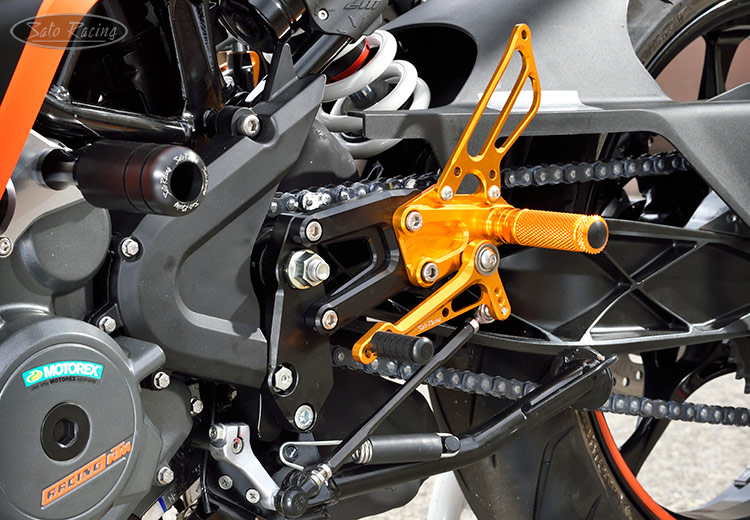

![SATO RACING RC390 '22- Rear Sets [L]-side](pics/KTM-RC39022RS-GD_fitL1_750x520.jpg "SATO RACING RC390 '22- Rear Sets [L]-side")
Standard Rear Sets (stock shift pattern)
The positions of the Step Plate, Foot Peg and Pedal Tip can be
adjusted, so you find the perfect position for your riding style.

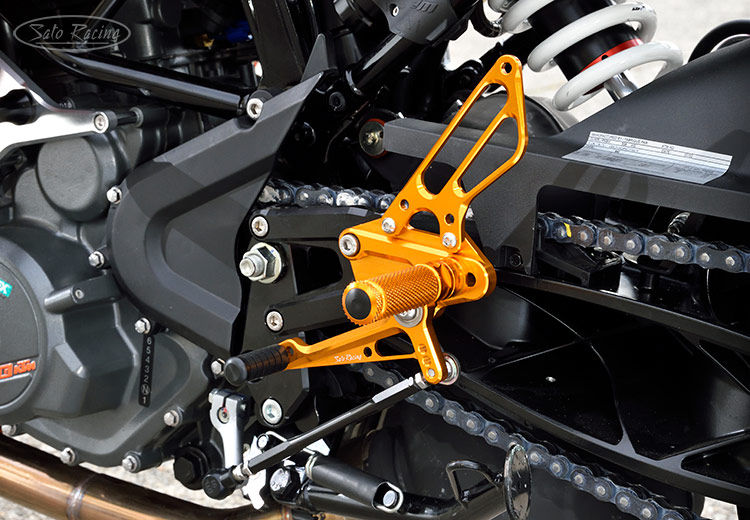

![SATO RACING RC390 '22- Rear Sets [L]-side](pics/KTM-RC39022RS-GD_fitL2_750x520.jpg "SATO RACING KTM RC390 '22- Rear Sets [L]-side")
| The standard Foot Pegs are fixed type (non-folding) and have a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. New Cutout-style Racing Foot Pegs are an available option for this model (See below for more info). |

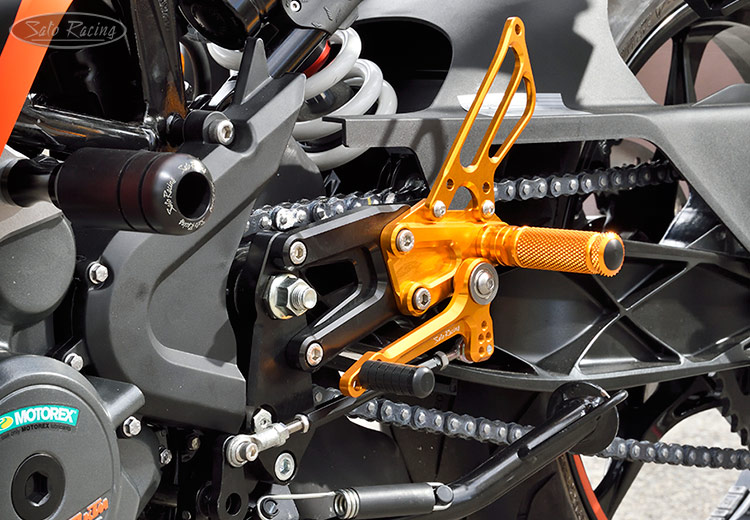

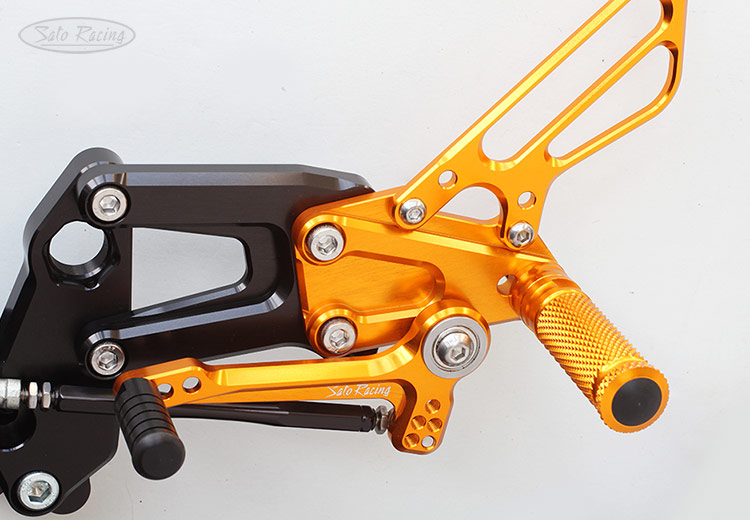

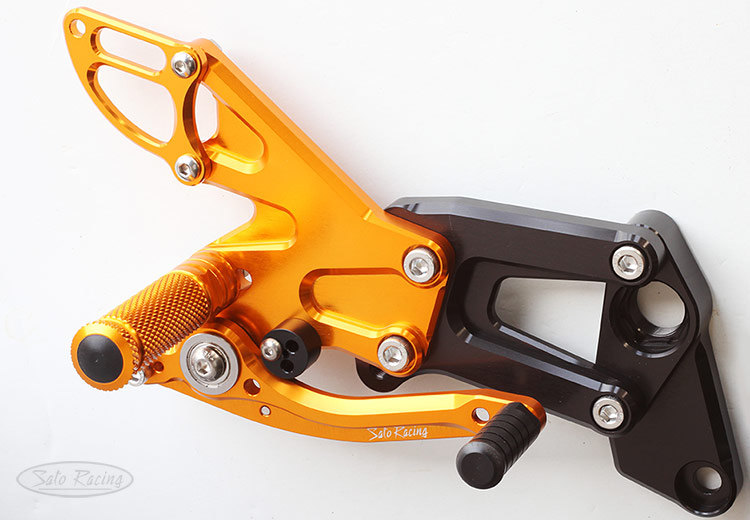

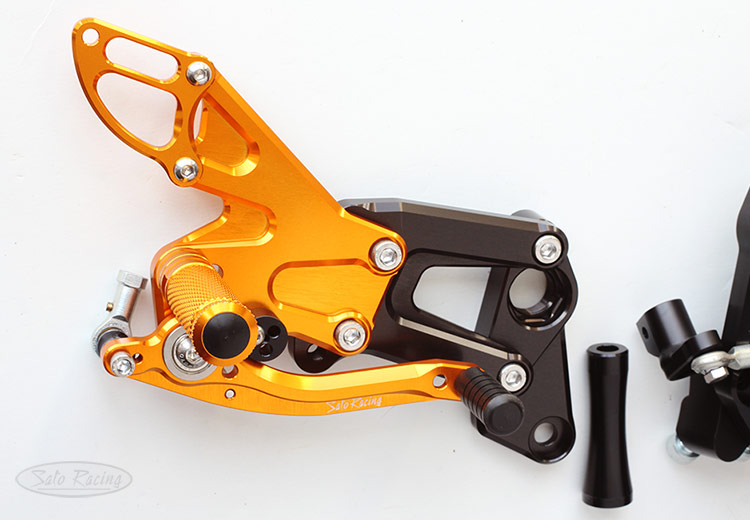

REVERSE SHIFT REAR SETS uses a different shift pedal and
linkage design, providing a dedicated reverse (GP-style) shift pattern.
(Reverse Shift version)
REAR SETS (Standard version)
| BLACK | KTM-RC39022RS-BK $715 |
 |
| GOLD w/ BLACK base plates |
KTM-RC39022RS-GD $715 |
|
REVERSE SHIFT REAR SETS
| BLACK | KTM-RC39022RSR-BK $760 |
|
| GOLD w/ BLACK base plates |
KTM-RC39022RSR-GD $760 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
