MV AGUSTA Brutale 675/ 800/ 800 Dragster
(quickshifter-equipped models)

REAR SETS

SATO RACING Rear Sets for MV Brutale 675/ 800/ 800 Dragster/RR

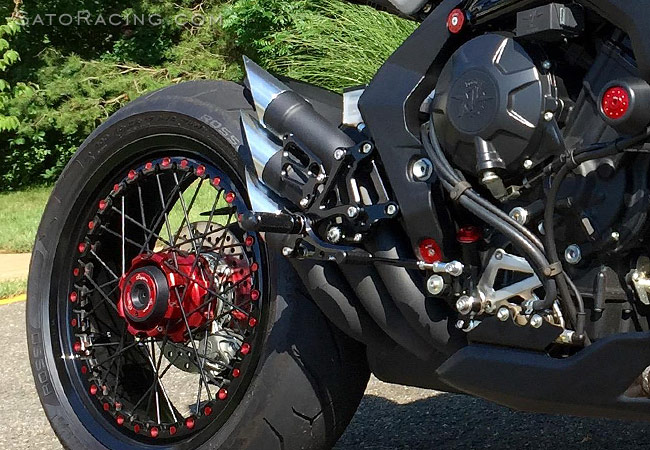

                                                                                                                                                Photo courtesy of T. Lincoln

SATO RACING Rear Sets for 2012 and up* MV Agusta Brutale 675/ 800/ 800 Dragster/RR are made from billet aluminum anodized in your choice of all Black, or vivid Gold finish with contrasting Black base plates and shift pedal. The shift pedal and integrated brake pedal have double stainless bearings for smooth movement and a high quality feel. Choose from 4 adjustable positions that place your feet higher up compared to the stock rear sets. These Rear Sets can be easily switched from stock shift pattern to reverse (GP) shift pattern.

*
NOTE: Confirmed to fit '12-'14 Brutale 675/ 800. Full compatibility with later model years is unconfirmed.

POSITIONS

1 0mm 25mm Up
2 12.5mm Back 25mm Up
3 10mm Back 37.5mm Up
4 22.5mm Back 37.5mm Up

note: all measurements are in relation to stock position (0 mm).

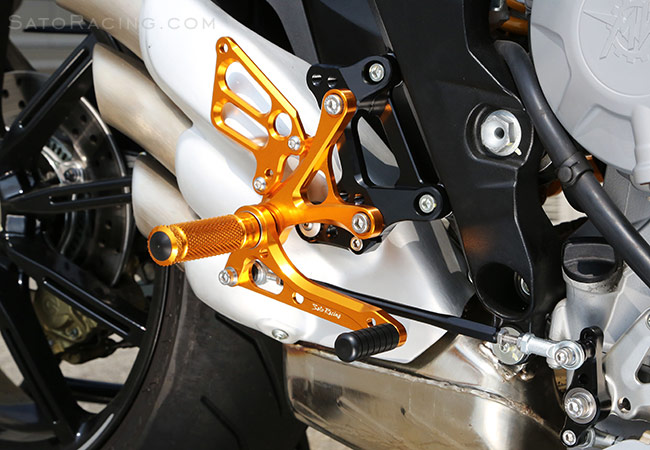

SATO RACING Rear Sets for MV Brutale 675/ 800/Dragster
Both ends of the brake pedal assembly use double-stainless bearings
for smooth, precise lever action and a solid pedal feel.

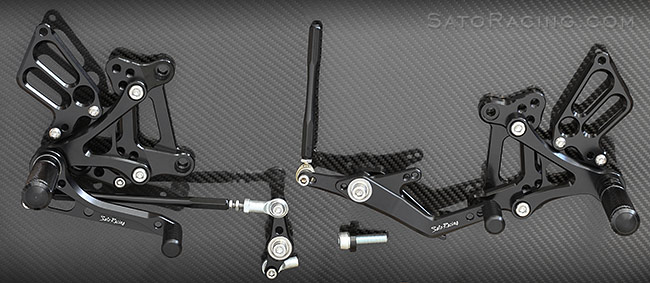

SATO RACING Rear Sets for MV Brutale 675/ 800/Dragster
Foot pegs have a deeply knurled pattern for excellent grip characteristics.

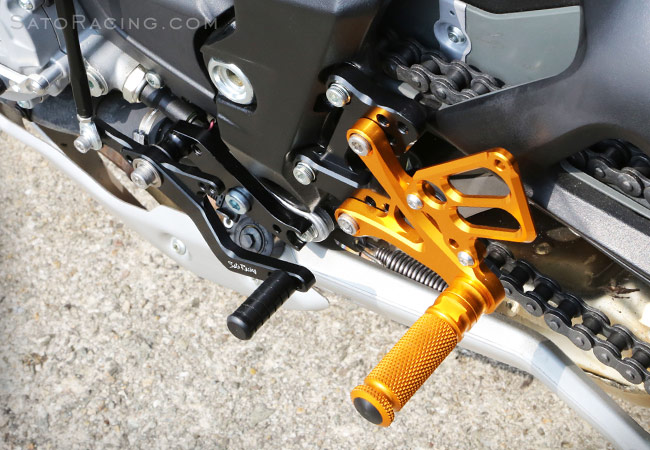

SATO RACING Rear Sets for MV Brutale 675/ 800/Dragster

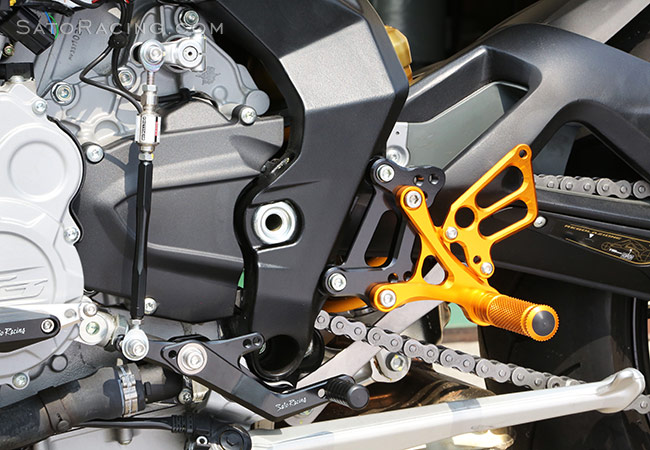

Rear Sets shown set up for stock shift pattern. You can switch to reverse
(GP) shift pattern by relocating the shift rod to the opposite end of the pedal.

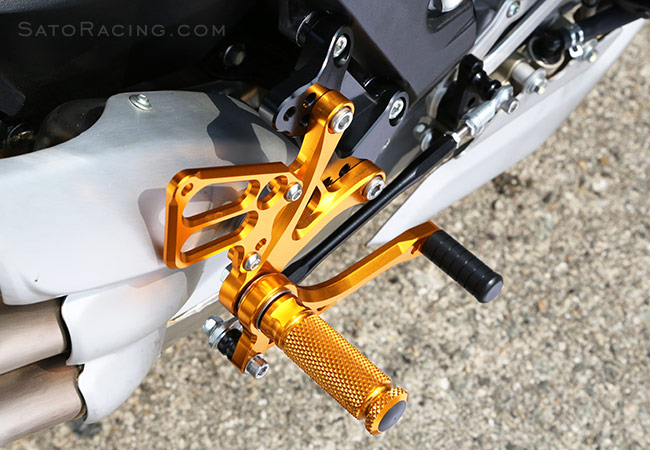

SATO RACING Rear Sets for MV Brutale 675/ 800/Dragster

SATO RACING Rear Sets for MV Brutale 675/ 800/Dragster



BLACK MV-DRAGRS-BK
$695
GOLD
w/ Black base plates/ shift pedal
MV-DRAGRS-GD
$695


Click Here for important info about Sato color-anodized parts.




Replacement Parts

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list included with your Sato Rear Sets.
