SUZUKI GSX-R1000/R ('17-)
| SATO RACING 'Race Concept'-edition Rear Sets are pure, no-compromise racing rear sets designed for track-only bikes. Our 'Race Concept' Rear Sets for 2017+ Suzuki GSX-R1000/R are a track-tested design directly based on prototype sets originally developed for various race teams in Japan, including entries in the 2017 Suzuka 8 Hours and other endurance races. These race-spec Rear Sets are CNC-machined from high strength billet aluminum and anodized in your choice of Black with Gold accents, or Gold with Black base plates and shift pedal assembly. Modular step plate design lets you choose from 8 adjustable foot peg positions in an aggressive range that brings your feet significantly higher up and further back compared to stock, to help you achieve the kind of riding position best-suited to the fast straights and steep lean angles you may encounter on the track. These Rear Sets can be set up for either stock shift pattern or reverse (GP style) shift pattern. Available options for these Rear Sets include a Shift Spindle Holder which reinforces the shift shaft for more precise shift action. NOTE: Not for recommended street use. Not compatible with the stock brake light switch. Since it is designed for use with racing brake setups, compatibility with the stock ABS brakes is not tested for. For more 'street'-friendly Rear Sets, see our standard GSX-R1000/R Rear Sets. |

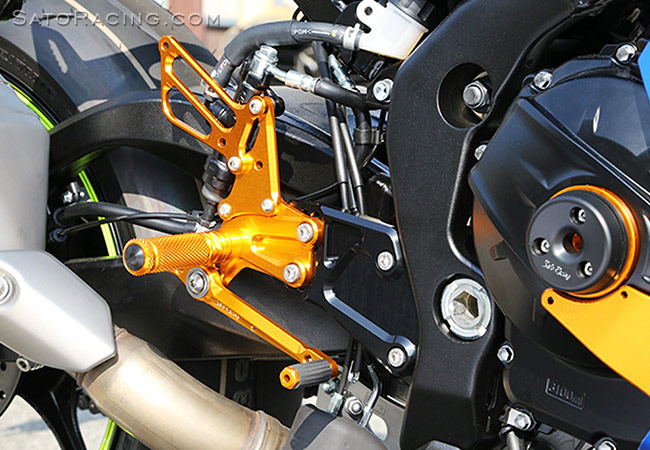

![SATO RACING 'Race Concept' Rear Sets for Suzuki GSX-R1000/R '17+ [R]-side](pics/17GSXR1000_raceconcept_rearsetsGD_fitR1.jpg "SATO RACING 'Race Concept' Rear Sets for Suzuki GSX-R1000/R '17+ [R]-side")
The pedals utilize double stainless bearings for smooth, precise movement and a solid feel.
The standard Pedal Tips are Gold-anodized aluminum with fluted rubber grips. Additional
Pedal Tip styles, such as folding-style Pedal Tips, are available as options. More Details.

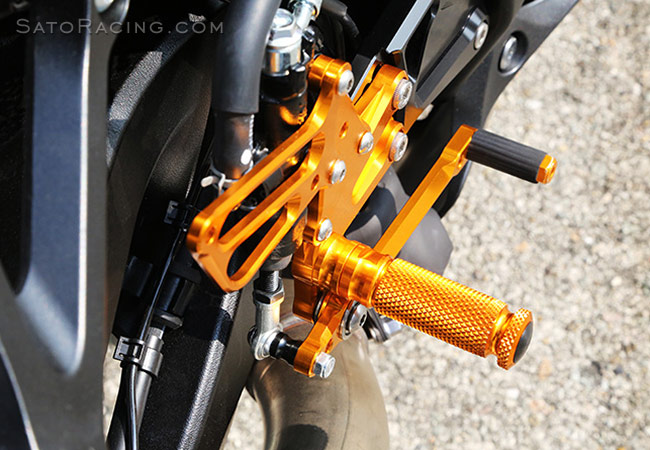

![SATO RACING 'Race Concept' Rear Sets for Suzuki GSX-R1000/R '17+ [R]-side](pics/17GSXR1000_raceconcept_rearsetsGD_fitR2.jpg "SATO RACING 'Race Concept' Rear Sets for Suzuki GSX-R1000/R '17+ [R]-side")
The modular racing-style Base Plate design provides 8 adjustable positions.
| 1 | 30mm Back | 40mm Up |
| 2 | 30mm Back | 50mm Up |
| 3 | 30mm Back | 60mm Up |
| 4 | 40mm Back | 40mm Up |
| 5 | 40mm Back | 50mm Up |
| 6 | 40mm Back | 60mm Up |
| 7 | 50mm Back | 50mm Up |
| 8 | 50mm Back | 60mm Up |
note: all measurements are in relation to stock position (0 mm).

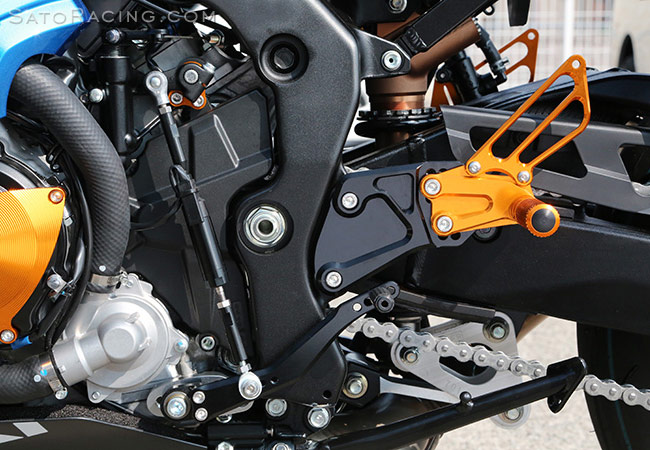

![SATO RACING 'Race Concept' Rear Sets for Suzuki GSX-R1000/R '17 [L]-side](pics/17GSXR1000_raceconcept_rearsetsGD_fitL1.jpg "SATO RACING 'Race Concept' Rear Sets for Suzuki GSX-R1000/R '17 [L]-side")
The shift pedal has multiple adjustment points for fine-tuning the shifter feel.
You can switch to reverse (GP) shift pattern by flipping the stock shift arm.
(Rear Sets shown installed together with the optional Shift Spindle Holder.)

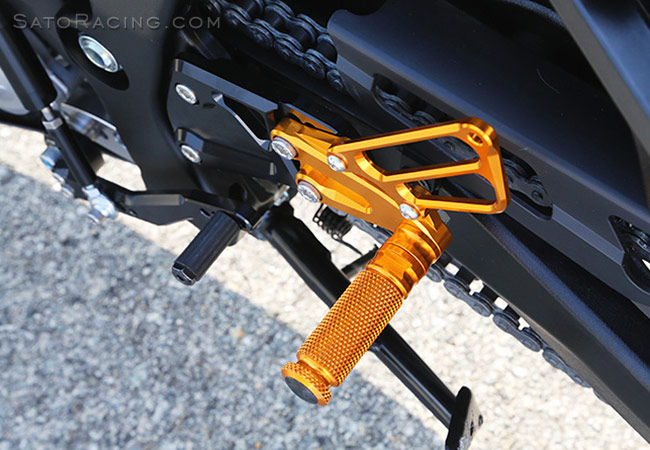

![SATO RACING 'Race Concept' Rear Sets for Suzuki GSX-R1000/R '17+ [L]-side](pics/17GSXR1000_raceconcept_rearsetsGD_fitL2.jpg "SATO RACING 'Race Concept' Rear Sets for Suzuki GSX-R1000/R '17+ [L]-side")
The Foot Pegs have a finely knurled pattern for great grip and a comfortable, intuitive feel.
| BLACK w/ Gold accents |
S-GSX117RCRS-BK $615 |
 |
| GOLD w/ BLACK Base Plates / Shifter |
S-GSX117RCRS-GD $615 |
|
Click Here for important info about Sato color-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
OPTIONS
SUZUKI GSX-R1000/R ('17- )
SHIFT SPINDLE HOLDER
| SATO RACING Shift Spindle Holder for 2017-22 Suzuki GSX-R1000/R reinforces the stock shift spindle shaft, reducing lateral movement and excessive play during shifting. Works great with Sato Racing Rear Sets. Gold anodized billet aluminum with a Teflon-coated bushing. |
| GOLD | S-GSX117RS-SHDR $99 |
|
Click Here for important info about Sato color-anodized parts.
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $65 |
|
 |
GOLD | RCPEG-GD $65 |
|
Click Here for important info about Sato color-anodized parts.
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $52 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
More Sato Racing items for 2017+ Suzuki GSX-R1000/R
|
