HONDA CBR125R ('11-'16)
REAR SETS

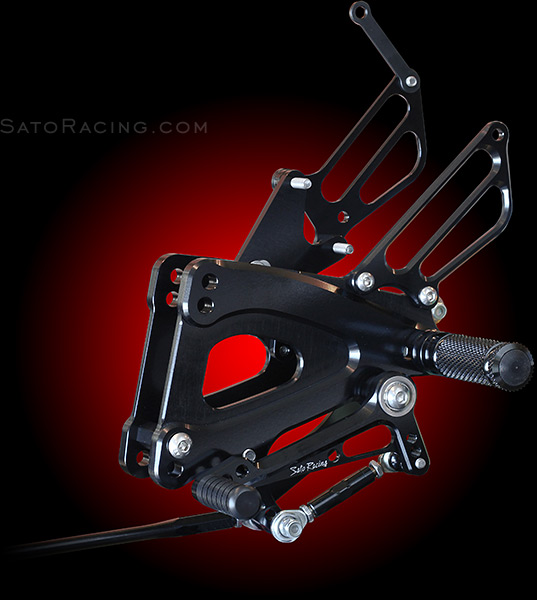

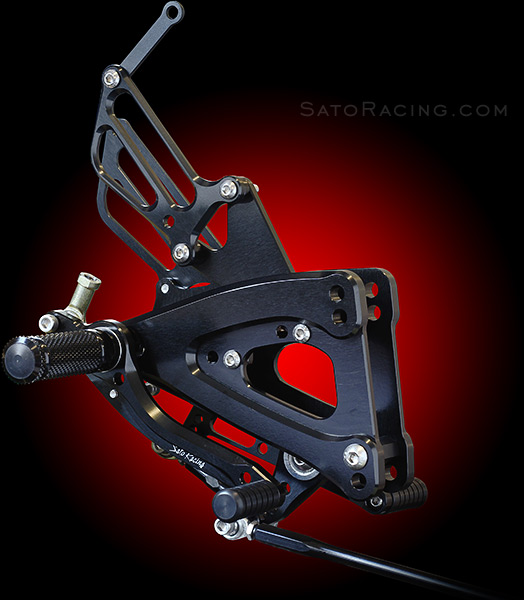

| SATO RACING Rear Sets for 2011-16 Honda CBR125R features a track-tested design, with parts precision CNC-machined out of high strength anodized billet aluminum, with stainless steel hardware. Adjustable foot pegs lets you select from 4 positions in a range that brings your feet significantly higher up and further back compared to stock, providing a sportier, more aggressive riding position, so you can get the most out of your CBR125R's perfomance capabilities. Choice of all-Black anodized finish, or Silver or Gold anodized finish over contrasting Black base plates. |
| 1 | 37.5mm Back | 47.5mm Up |
| 2 | 50mm Back | 47.5mm Up |
| 3 | 40mm Back | 60mm Up |
| 4 | 52.5mm Back | 60mm Up |
note: all measurements are in relation to stock position (0 mm).

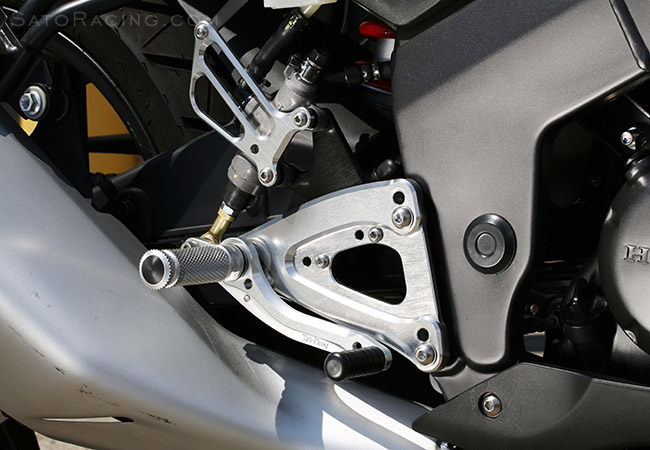

![Sato Racing CBR125R Rear Sets [R]-side](pics/CBR125R_RS_SV_R1.jpg "Sato Racing CBR125R Rear Sets [R]-side")
| The shifter and brake use miniature double stainless bearings for smooth, precise lever actuation with a solid feel. On the Silver and Gold anodized sets, the Base Plates and Master Stay are Black, which gives the right side Heel Guard a cool floating appearance. |

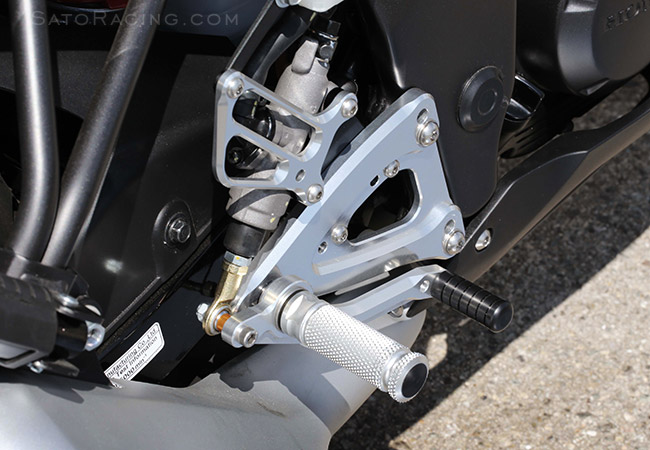

![Sato Racing CBR125R Rear Sets [R]-side](pics/CBR125R_RS_SV_R2.jpg "Sato Racing CBR125R Rear Sets [R]-side")
Our design is fully compatible with the stock brake light switch.
![Sato Racing CBR125R Rear Sets [L]-side](pics/CBR125R_RS_SV_L1.jpg "Sato Racing CBR125R Rear Sets [L]-side")
|
Provides a dedicated stock shift pattern. (Reverse / GP shift is not an option with this model). A multi-link shift rod setup is utilized so this set can achieve a range of positions Up and Back compared to stock, while still retaining excellent shifter feel. |
![Sato Racing CBR125R Rear Sets [L]-side](pics/CBR125R_RS_SV_L2.jpg "Sato Racing CBR125R Rear Sets [L]-side")
|
The Foot Pegs are fixed (non-folding), and feature a finely knurled grip pattern for a
comfortable, intuitive feel. Foot Pegs are adjustable 4 ways so you can find the ideal position for your riding style. The standard Pedal Tips are made of tough, abrasion-resistant Delrin plastic. Additional styles of Pedal Tips, such as aluminum Pedal Tips with rubber grips, are also available. |
| BLACK | H-C125RS-BK $495 |
 |
| SILVER | H-C125RS-SV $495 |
|
| GOLD | H-C125RS-GD $495 |
|
(Uses stock brake light switch)
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $65 |
|
 |
SILVER | RCPEG-SV $65 |
|
 |
GOLD | RCPEG-GD $65 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $52 |
|
Have questions or prefer to order by phone? You can call us to place an order -
SATO RACING offers a full selection of replacement parts for our Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.
