YAMAHA FZ-09 / MT-09/ SP '17-'20
REAR SETS (For Quickshifter)
| SATO RACING Rear Sets for OEM Yamaha quickshifter-equipped 2017-20 Yamaha FZ-09 / MT-09/ MT-09SP features components precision machined out of high strength anodized billet aluminum, with stainless steel fasteners. Modular design lets you select from a wide range of adjustable positions that place your feet higher and further back compared to stock, for enhanced control and improved handling at the limit. Choice of an all-Black anodized finish, or Gold anodized finish with contrasting Black base plates and shift pedal assembly. 2 versions of these Rear Sets are available: Standard version Rear Sets, which provide a stock shift pattern, and Reverse Shift Rear Sets, which have a dedicated reverse (GP-style) shift pattern. NOTE: These Rear Sets are designed for use with the OEM quickshifter. If you have a 2017+ model without the quickshifter, our standard FZ-09 / MT-09 Rear Sets (part# Y-MT09RS) will work. |
POSITIONS
(Standard shift version)
| 1 | 2.5mm Back | 37.5mm Up |
| 2 | 10mm Back | 47.5mm Up |
| 3 | 10mm Back | 57.5mm Up |
| 4 | 20mm Back | 57.5mm Up |
| 5 | 15mm Back | 37.5mm Up |
| 6 | 22.5mm Back | 47.5mm Up |
| 7 | 22.5mm Back | 57.5mm Up |
| 8 | 32.5mm Back | 57.5mm Up |
note: all measurements are in relation to stock position (0 mm).
![SATO RACING Yamaha FZ-09 / MT-09/SP '17-'20 Rear Sets [R]-side](pics/Y-MT0917RS-GD_fitR1.jpg "SATO RACING Yamaha FZ-09 / MT-09/SP '17-'20 Rear Sets [R]-side")
The shift and brake pedals utilize double stainless bearings for smooth, precise lever actuation.

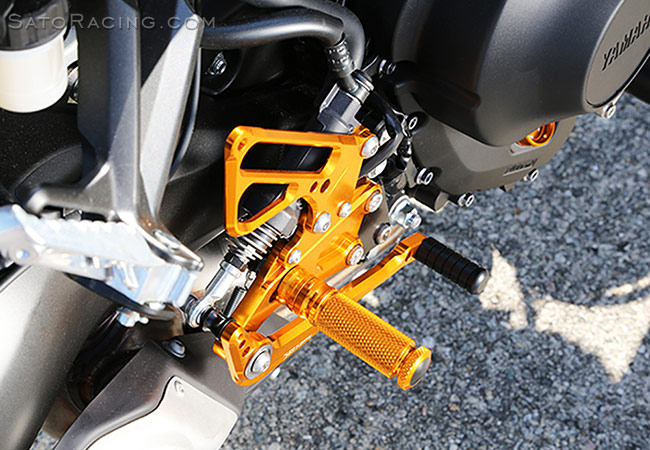

![SATO RACING Yamaha FZ-09 / MT-09 '17-'20 Rear Sets [R]-side](pics/Y-MT0917RS-GD_fitR2.jpg "SATO RACING Yamaha FZ-09 / MT-09 '17-'20 Rear Sets [R]-side")
Knurled footpegs provide excellent grip, along with a confortable, intuitive feel.

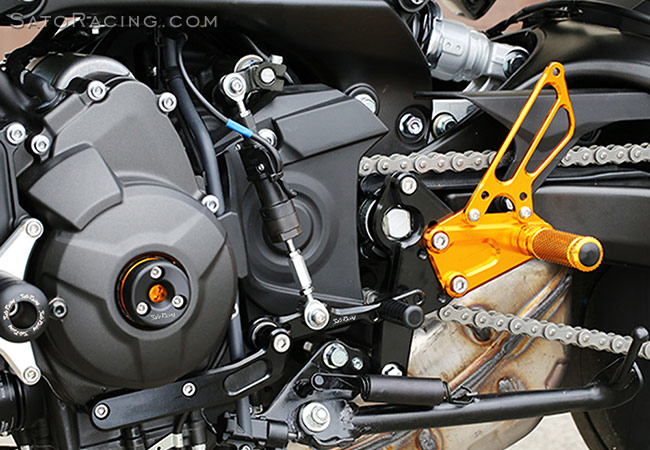

![SATO RACING Yamaha FZ-09 / MT-09 '17-'20 Rear Sets [L]-side](pics/Y-MT0917RS-GD_fitL1.jpg "SATO RACING Yamaha FZ-09 / MT-09 '17-'20 Rear Sets [L]-side")
Modular design lets you adjust the position of the Step Plate 4 ways. Foot Peg and Pedal Tip
positions are also adjustable. (The base plates and shift pedal assembly come in Black only.)

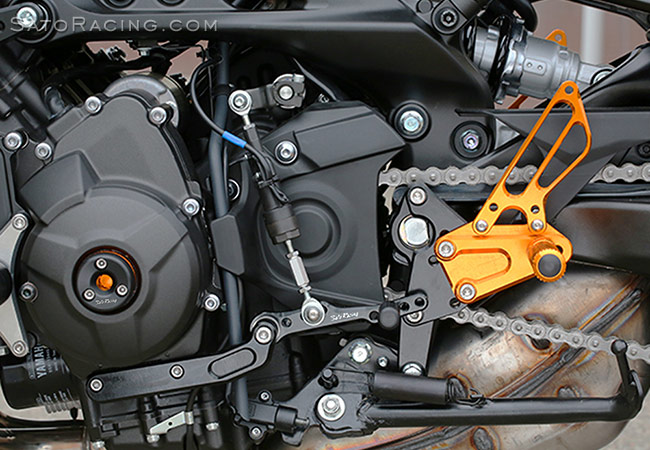

![SATO RACING Yamaha FZ-09 / MT-09 '17-'20 Rear Sets [L]-side](pics/Y-MT0917RS-GD_fitL2.jpg "SATO RACING Yamaha FZ-09 / MT-09 '17-'20 Rear Sets [L]-side")
The shift pedal has multiple adjustment points for fine-tuning the shift stroke and shift pedal feel.
Rear Sets (standard version)
| BLACK | Y-MT0917RS-BK $760 |
 |
| GOLD w/ Black Base Plates / Shift Pedal |
Y-MT0917RS-GD $760 |
|
Click Here for important info about Sato color-anodized parts.
REVERSE SHIFT REAR SETS
| Our Reverse Shift Rear Sets for quickshifter-equipped 2017-20 Yamaha FZ-09/ MT-09/SP features an integrated GP-style shift pedal that provides a dedicated reverse shift pattern. Modular step plate design lets you choose from 6 adjustable positions. |
POSITIONS
| 1 | 10mm Back | 47.5mm Up |
| 2 | 10mm Back | 57.5mm Up |
| 3 | 20mm Back | 57.5mm Up |
| 4 | 22.5mm Back | 47.5mm Up |
| 5 | 22.5mm Back | 57.5mm Up |
| 6 | 32.5mm Back | 57.5mm Up |
note: all measurements are in relation to stock position (0 mm).

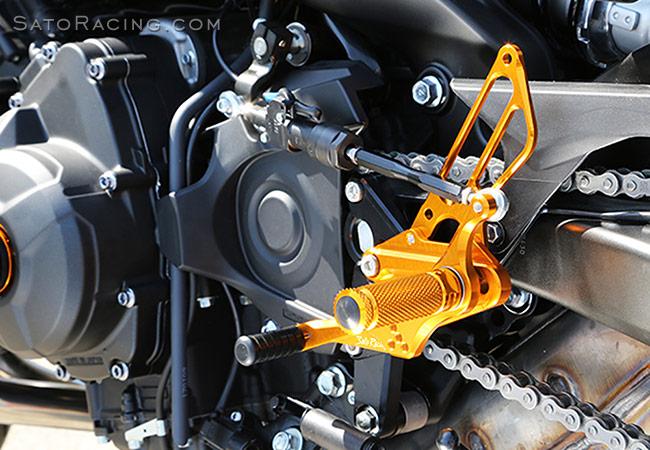

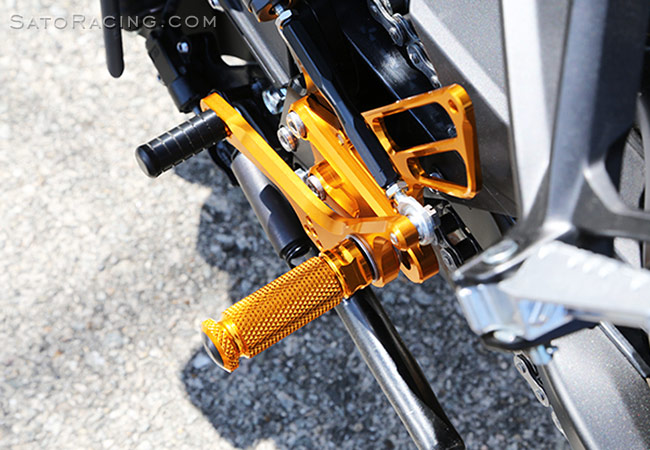

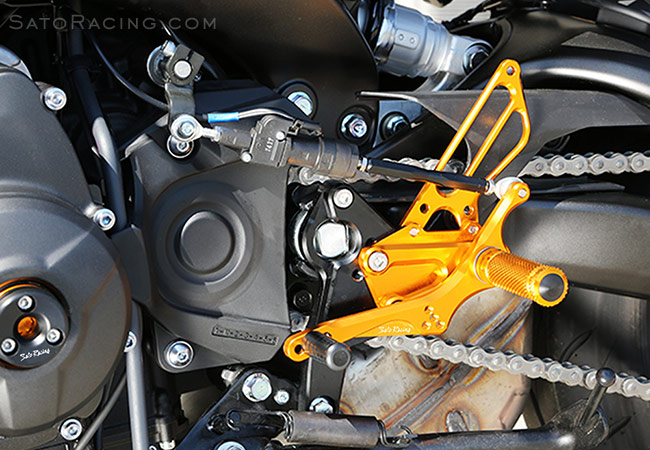

![SATO RACING Yamaha FZ-09 / MT-09/SP '17-'20 Reverse Shift Rear Sets [L]-side](pics/Y-MT0917RSR-GD_fitL1.jpg "SATO RACING Yamaha FZ-09 / MT-09/SP '17-'20 Reverse Shift Rear Sets [L]-side")
![SATO RACING Yamaha FZ-09 / MT-09/SP '17-'20 Reverse Shift Rear Sets [L]-side](pics/Y-MT0917RSR-GD_fitL2.jpg "SATO RACING Yamaha FZ-09 / MT-09/SP '17-'20 Reverse Shift Rear Sets [L]-side")
![SATO RACING Yamaha FZ-09 / MT-09/SP '17-'20 Reverse Shift Rear Sets [L]-side](pics/Y-MT0917RSR-GD_fitL3.jpg "SATO RACING Yamaha FZ-09 / MT-09/SP '17-'20 Reverse Shift Rear Sets [L]-side")
Reverse Shift Rear Sets
| BLACK | Y-MT0917RSR-BK $695 |
|
| GOLD w/ Black Base Plates |
Y-MT0917RSR-GD $695 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $52 |
|
 |
GOLD | RCPEG-GD $52 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of replacement parts for these Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the illustrated
parts list included with your SATO RACING Rear Sets, or view the PDF parts list:
Stock Shift version | Reverse Shift version
Some replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to the stock shift version
part# Y-MT0917RS unless otherwise specified)
 |
FOOT PEG (BK / GD) |
PEG $48 |
|
 |
PEDAL TIP (DELRIN) (#16) |
ST-001D18 $16.50 |
|
 |
[L] HEEL GUARD (BK / GD) (L-side #1) |
HG-3L $50 |
|
 |
[R] HEEL GUARD (BK / GD) (R-side #2) |
HG-23R $58 |
|
 |
BRAKE ROD COLLAR 15 (R-side #17) |
RDED-CLR15 $8.00 |
|
 |
PEG COLLAR 12 (BK / GD) (#18) |
PEGCLR-12 $15 |
|
 |
BEARING COLLAR 15 [BLACK] (L-side #19) |
PEGBGCLR-15SB $12.50 |
|
 |
SOCKET HEAD M5-35mm (R-side #20) |
SBT-M535 $2.00 |
|
 |
SOCKET HEAD M6-35mm (L-side #21) |
SBT-M635 $1.50 |
|
 |
SOCKET HEAD M8-15mm (#22) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M8-45mm (L-side #23) |
SBT-M845 $2.00 |
|
 |
BUTTON HEAD M6-10mm (#24) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-18mm (L-side #25) |
BBT-M618 $2.00 |
|
|
BUTTON HEAD M6-20mm (#26, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M8-25mm (R-side #27) |
BBT-M825 $1.50 |
|
 |
HEX HEAD M6-30mm (R-side #28) |
HBT-M630 $2.00 |
|
 |
HEX HEAD M5-6mm (R-side #29) |
HBT-M56 $2.00 |
|
 |
HEX BOLT M8-40mm (#30, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEG WASHER - M8 (R-side #31) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 (#32) |
SWS-8 $1.20 |
|
 |
NUT M5 (R-side #33) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#34) |
JNT-6 $1.75 |
|
 |
FLANGE NUT M8 (L-side #35) |
FNT-8 $1.50 |
|
 |
MALE ROD END M6 (L-side #36) |
RDED-M6 $12.50 |
|
 |
FEMALE ROD END 6-M8 (R-side #37) |
RDED-F6-8 $25 |
|
 |
PULL SWITCH STAY 16 (R-side #38) |
PSTAY-16 $9.50 |
|
 |
RETURN SPRING 40 |
RS-RSP $8.00 |
|
 |
SHIFT ROD 80 [BLACK] (Reverse Shift #10) |
SRD-80-B $39 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
