aprilia  RSV4 APRC  (non-ABS, '11-'13)
REAR SETS

SATO RACING Rear Sets for 2011-13 Aprilia RSV4 APRC (non-ABS) features components precision CNC-machined from high strength billet aluminum and anodized in your choice of Black, Silver, or Gold finish. The shift and brake pedals feature double stainless bearings for smooth, precise lever action. The shift pedal is optimized to perform well with the stock quickshifter. Deeply knurled footpegs provide optimal grip even in wet conditions. Modular step plate design lets you choose from 12 adjustable foot peg positions, ranging from stock-equivalent to more aggressive positions that bring your feet up and further back compared to stock.

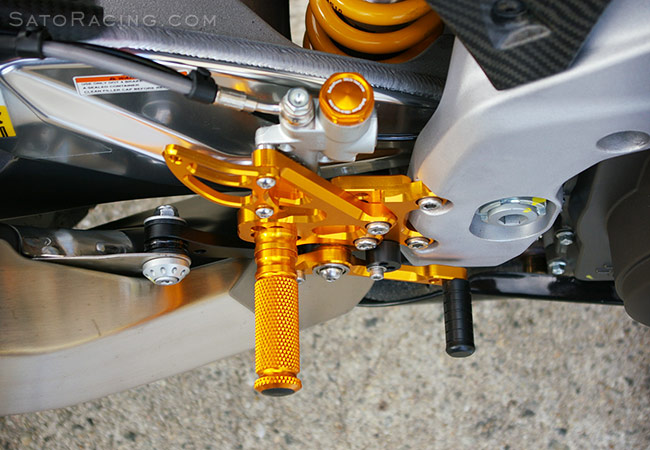

SATO RACING Aprilia RSV4 APRC '11- Rear Sets [R]-side

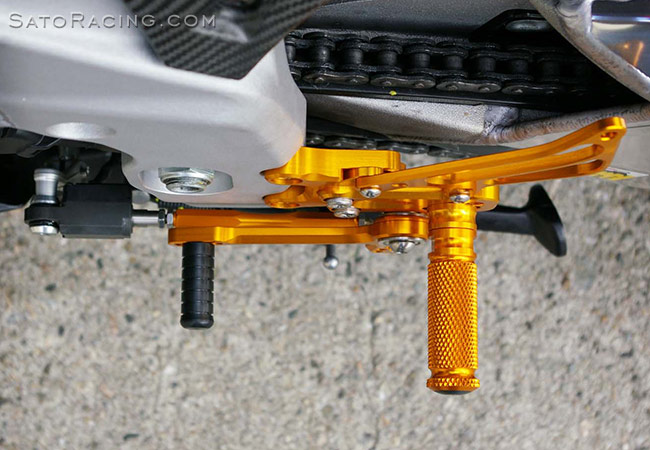

SATO RACING Aprilia RSV4 APRC '11 Rear Sets [L]-side
Shift rod linkage and exhaust hanger (not pictured)
are also included with these Rear Sets.


POSITIONS

1 0mm 0mm
2 0mm 10mm Up
3 0mm 20mm Up
4 10mm Back 10mm Up
5 10mm Back 20mm Up
6 10mm Back 30mm Up
7 10mm Back 40mm Up
8 20mm Back 20mm Up
9 20mm Back 30mm Up
10 20mm Back 40mm Up
11 30mm Back 30mm Up
12 30mm Back 40mm Up

note: all measurements are in relation to stock position (0 mm).

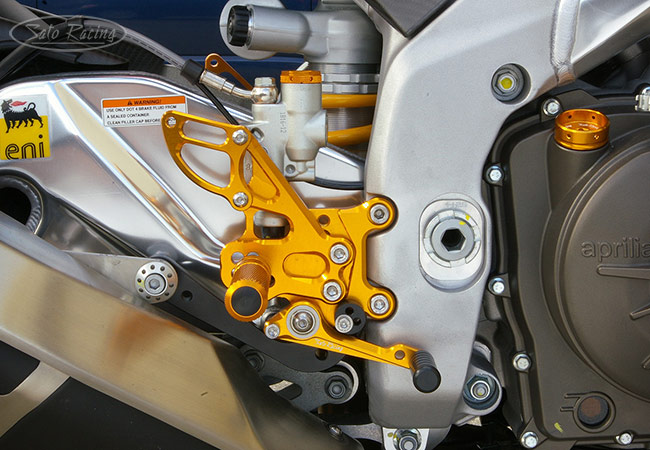

Sato Racing Aprilia RSV4 APRC '11- Rear Sets [R]-side
The Step Plate, Foot Peg, and Pedal Tip can be independently adjusted
in several ways to help you find the best possible foot position.

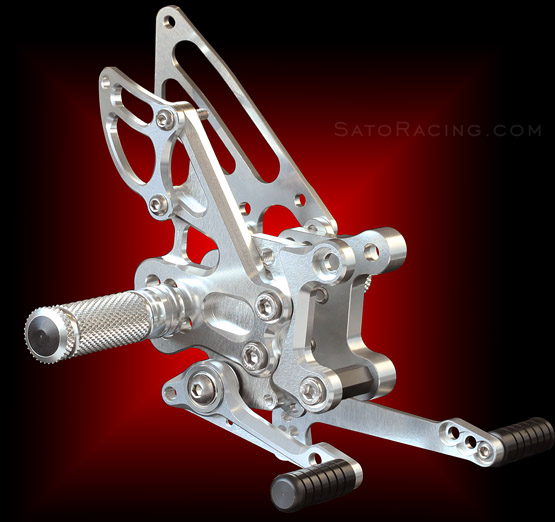

SATO RACING Aprilia RSV4 APRC '11-'13 Rear Sets [R]-side

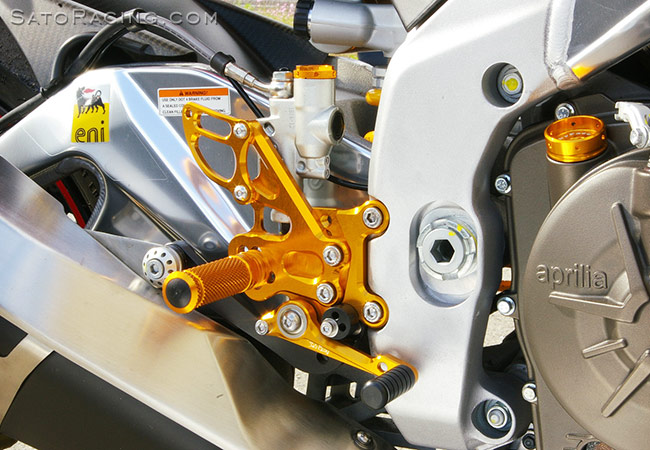

SATO RACING Aprilia RSV4 APRC '11-'13 Rear Sets [R]-side
The Foot Pegs have a finely knurled pattern for non-slip grip and a comfortable, intuitive feel.

The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles,
such as aluminum Pedal Tips with fluted rubber sleeves, are an available option:  Details

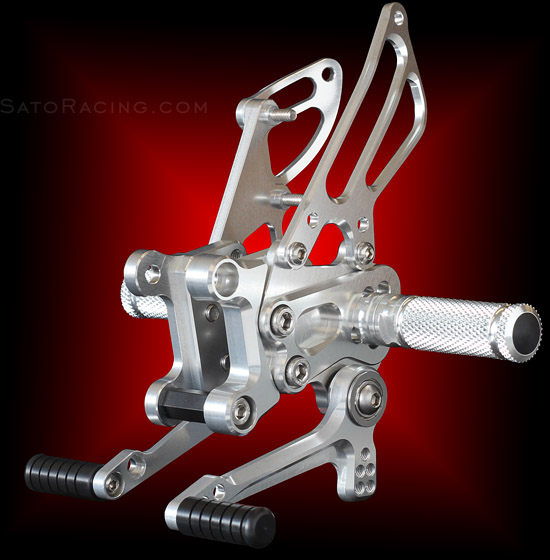

Sato Racing Aprilia RSV4 APRC '11-'13 Rear Sets [L]-side
Rotating the shift rod will let you adjust the rest height of the shift pedal. The shift stroke
can also be fine-tuned by changing the mounting position of the shift rod at the pedal.

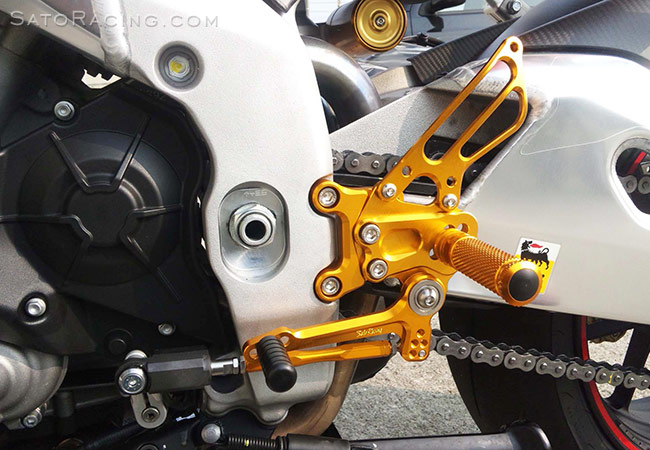

Sato Racing Aprilia RSV4 APRC '11-'13 Rear Sets [L]-side
These Rear Sets provide a standard (stock) shifting pattern.
Reverse shift pattern is not an option on this model.

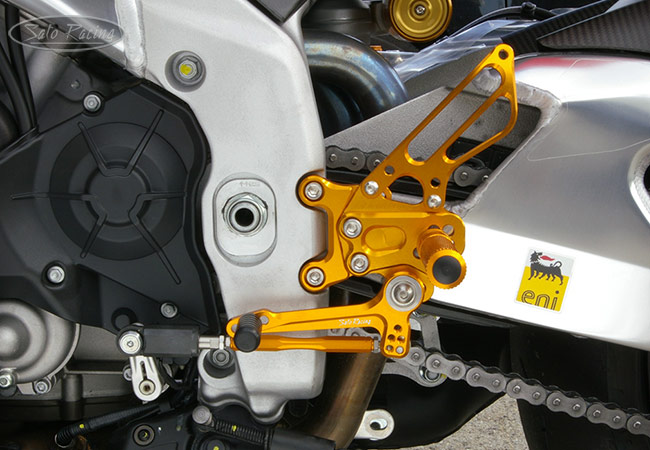

Sato Racing Aprilia RSV4 APRC '11-'13 Rear Sets [L]-side



Online Special -
Originally $645, price has been reduced to $515 on all remaining stock! (Clearance pricing - All sales are final) *

BLACK A-RSV411RS-BK
$645   $515
SILVER A-RSV411RS-SV
$645   $515
GOLD A-RSV411RS-GD
$645		 SOLD OUT

(Brake light switch included in kit)





________________________________________________________________________________

OPTIONS

________________________________________________________________________________


REAR BRAKE RESERVOIR CAP

This high-quality Brake Cap for the rear brake fluid reservoir is precision CNC-machined out of solid billet aluminum and features a finely knurled grip pattern around the rim, with white laser etched Sato Racing logo script on top. The holes around the rim can be used to attach a safety wire. Goes great with our Rear Sets!

SATO RACING Rear Brake Fluid Cap FC-B3-B on an Aprilia Tuono V4R
NOTE: This model is currently available in Black or Silver anodized finish.

Rear Brake Cap FC-B3


BLACK FC-B3-B
$47
SILVER FC-B3-S
$47




________________________________________________________________________________



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

Black BLACK RCPEG-BK
$52
Silver SILVER RCPEG-SV
$52
Gold GOLD RCPEG-GD
$52

Click Here for important info about Sato color-anodized parts.




__________________________________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

__________________________________________________________________________________



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]		 TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



___________________________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:  Parts List


Some replacement parts for these Rear Sets
can be purchased in our Online Store:

PEG FOOT PEG
(BK/ SV/ GD)		 PEG
$48
STUD BOLT M8-45mm)
(#33, Foot Peg bolt)		 STBT-45
$4.50
PEDAL TIP PEDAL TIP (DELRIN)
(#10)		 ST-001D18
$16.50
BUTTON HEAD M6-20mm
(#28, for Pedal Tip)		 BBT-M620
$1.50
SPD-0912 SHIFT PEDAL
(BK/ SV/ GD) (L-side #11)		 SPD-0912
$80
SRD-100 SHIFT ROD 100
(BK/ SV/ GD) (L-side #12)		 SRD-100
$39
BPD-15 BRAKE PEDAL
(BK/ SV/ GD) (R-side #13)		 BPD-15
$85
BPD-STOPPER PEDAL STOPPER 12.5
(DELRIN) (R-side #14)		 BPD-STOPPER
$15.00
RDED-CLR3 ROD END COLLAR 3
(L-side #16)		 RDED-CLR3
$6.00
RDED-CLR20 COLLAR 20-6
(R-side #18)		 RDED-CLR20
$8.00
PWS-8 SMALL WASHER - M8
(#22)		 PWS-8
$1.00
SOCKET HEAD M6-20mm
(L-side #24)		 SBT-M620
$1.50
SOCKET HEAD M6-45mm
(R-side #25)		 SBT-M645
$2.00
SBT-M815 SOCKET HEAD M8-15mm
(#26)		 SBT-M815
$1.50
BBT-M610 BUTTON HEAD M6-10mm
(#27)		 BBT-M610
$1.50
BBT-M825 BUTTON HEAD M8-25mm
(#30)		 BBT-M825
$1.50
STUD-M6 STUD M6
(L-side #32)		 STUD-M6
$2.50
JNT-6 JAM NUT M6
(L-side #34)		 JNT-6
$1.75
REVERSE JAM NUT M6
(L-side #35)		 JNT-6L
$2.50
LNT-6 LOCK NUT M6
(R-side #36)		 LNT-6
$1.50
FNT-8 FLANGE NUT M8
(#37)		 FNT-8
$1.50
RDED-M6L REVERSE
MALE ROD END M6
(L-side #38)		 RDED-M6L
$12.50
FEMALE ROD END M6
(R-side #39)		 RDED-F6
$15.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
