BMW K1200R ('05-'08)
REAR SETS

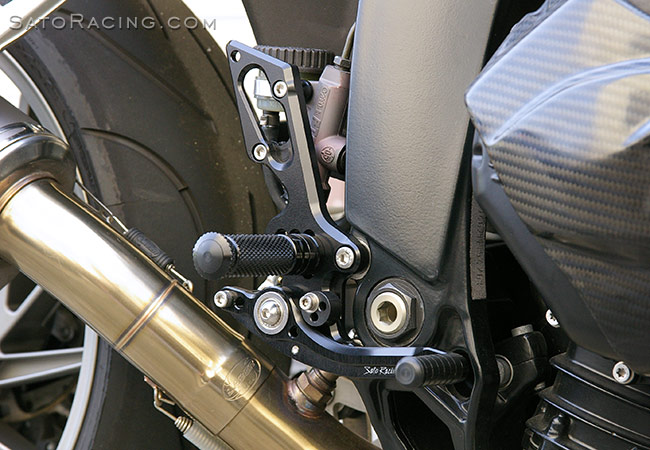

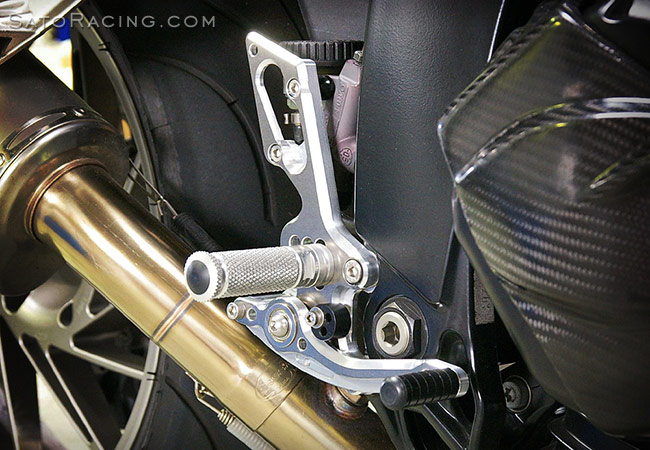

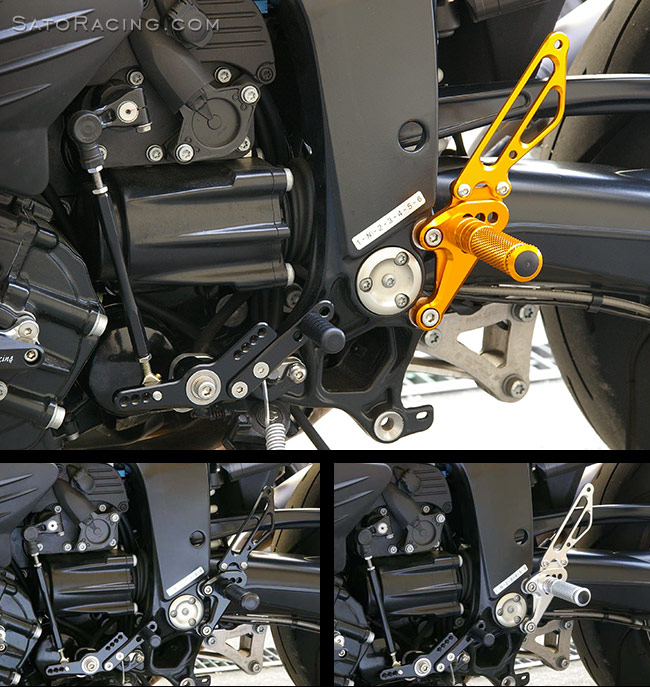

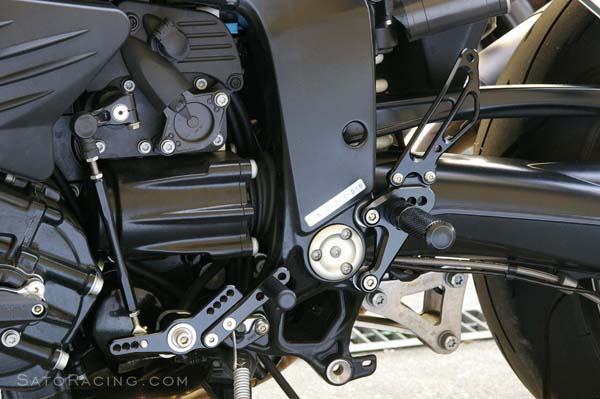

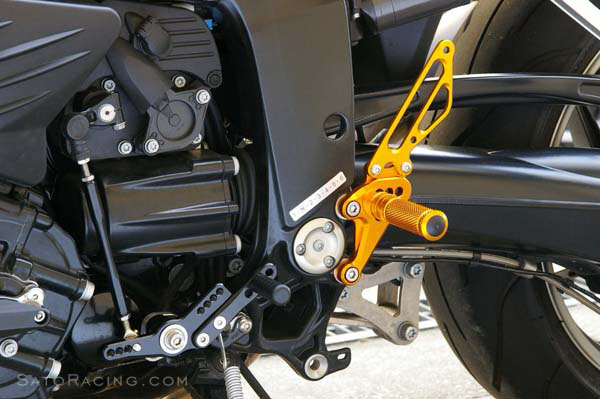

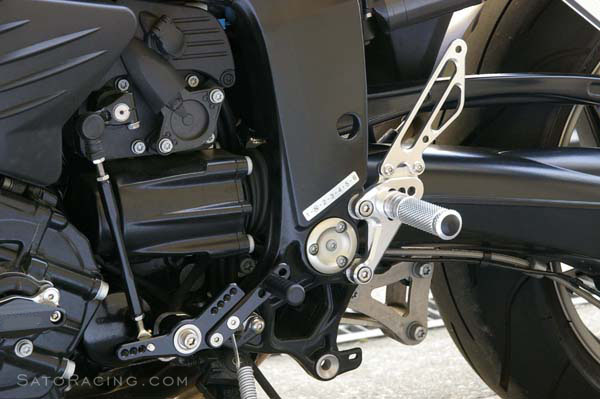

| SATO RACING Rear Sets for BMW K1200R (all years) are CNC-machined from high grade billet aluminum and anodized in your choice of all-Black finish, or Silver or Gold finish with a contrasting Black shift pedal assembly. The shift and brake pedals utilize double stainless bearings for a smooth pedal feel and precice operation. Foot peg position is adjustable, giving you a choice of 6 positions. These Rear Sets can be easily switched from stock shift pattern to reverse (GP) shift pattern. |
| 0mm | 0mm |
| 0mm | 10mm Up |
| 0mm | 20mm Up |
| 10mm Back | 10mm Up |
| 10mm Back | 20mm Up |
| 20mm Back | 20mm Up |
note: all measurements are in relation to stock position (0 mm).
The foot pegs feature a deep knurled pattern for excellent grip and feel.
The positions of both the foot pegs and the pedal tips are adjustable.
You can adjust the rest height of the brake pedal by rotating the pedal stopper.
These Rear Sets are compatible with the stock mechanical brake light switch.
| The adjustable shift pedal has attachment holes for the shift rod on both ends - Change from stock shift to reverse shift pattern by relocating the shift rod to the opposite side of the pedal. (The Shift Pedal comes in Black only.) |
| LAST CHANCE - This model has ended its production run and we are now down to just a few sets of each color in our inventory. We have also lowered the price of the GOLD version to help move them! If you have always wanted to try out these excellent Rear Sets on your K1200R, now may be your last opportunity! Don't miss out! * |
 |
BLACK | BMW-K12RS-BK $615 |
 |
 |
SILVER | BMW-K12RS-SV $615 |
|
 |
GOLD | BMW-K12RS-GD |
|
* (Clearance item pricing - no exchanges / returns)
Click Here for important info about Sato GOLD-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (L-side #9 / R-side #7) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) |
ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SHIFT PEDAL SPD8 [BLACK] (L-side #6) |
SPD-8B $30 |
|
 |
BASE PLATE COLLAR 6 (L-side #11) |
BPCLR-6 $8.00 |
|
 |
SHIFT ROD 100 (BLACK) (L-side #12) |
SRD-100-B $39 |
|
 |
SOCKET HEAD M8-20mm (L-side #14 / R-side #17) |
SBT-M820 $1.50 |
|
 |
FLANGE HEAD M6-20mm (L-side #15) |
FGBT-M620 $2.00 |
|
 |
BUTTON HEAD M6-10mm (L-side #16) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-25mm (L-side #18 / R-side #19) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-40mm (L-side #19) |
BBT-M840 $2.00 |
|
 |
FLAT HEAD M6-10mm (L-side #21) |
FBT-M610 $1.50 |
|
 |
SPLIT WASHER M8 (L-side #23 / R-side #22) |
SWS-8 $1.20 |
|
 |
REVERSE JAM NUT M6 (L-side #24) |
JNT-6L $2.50 |
|
|
JAM NUT M6 (L-side #25) |
JNT-6 $1.75 |
|
 |
MALE ROD END M6 (L-side #26) |
RDED-M6 $12.50 |
|
 |
PEDAL STOPPER (DELRIN) (R-side #6) |
BPD-STOPPER $15.00 |
|
 |
SOCKET HEAD M5-20mm (R-side #12) |
SBT-M520 $2.00 |
|
 |
SOCKET HEAD M6-55mm (R-side #14) |
SBT-M655 $3.00 |
|
 |
PEG WASHER - M8 (R-side #21) |
PWS-8 $1.00 |
|
 |
LOCK NUT M6 (R-side #25) |
LNT-6 $1.50 |
|
 |
FEMALE ROD END M6 (R-side #26) |
RDED-F6 $15.00 |
|
 |
RETURN SPRING COLLAR (R-side #27) |
RS-RSCLR $12.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
