BMW S1000RR / HP4 ('09-'14)
REAR SETS (Standard version)

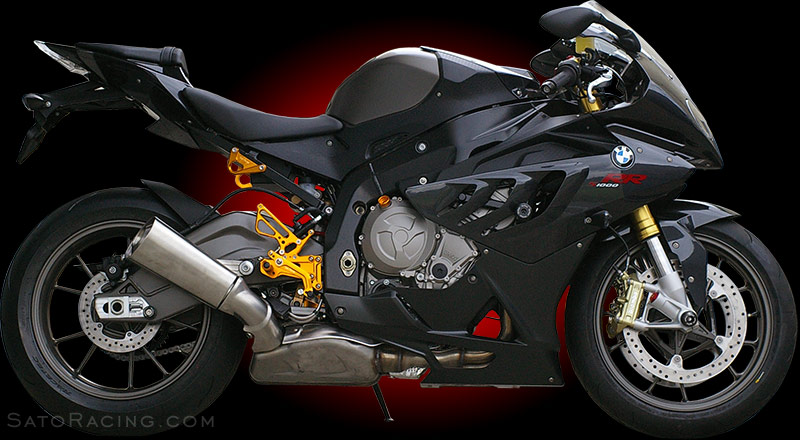

2009 BMW S1000RR with SATO RACING Rear Sets, Racing Hooks, Sliders and other parts

SATO RACING Rear Sets (standard version) for 2014 and earlier BMW S1000RR and HP4 feature components precision machined out of high strength billet aluminum and anodized in your choice of Black, Silver or Gold finish. Modular base plate ./ step plate design provides 20 adjustable positions, ranging from stock equivalent to more aggressive positions that move your feet further back compared to stock. Can be set up for stock shift or GP-style reverse shift pattern. We offer a kit for the early non-ABS version of S1000RR, in addition to the ABS-equipped models.

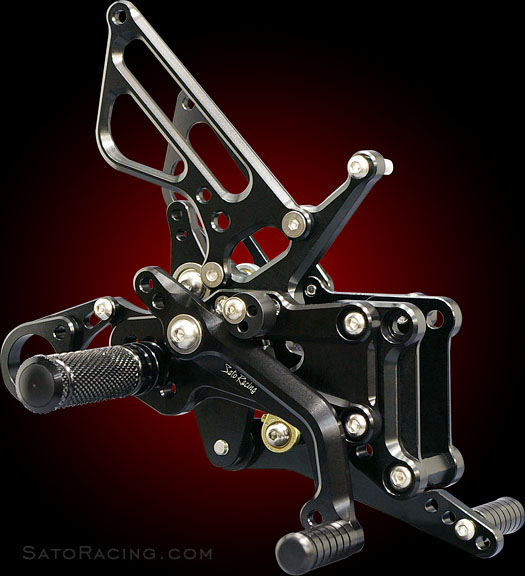

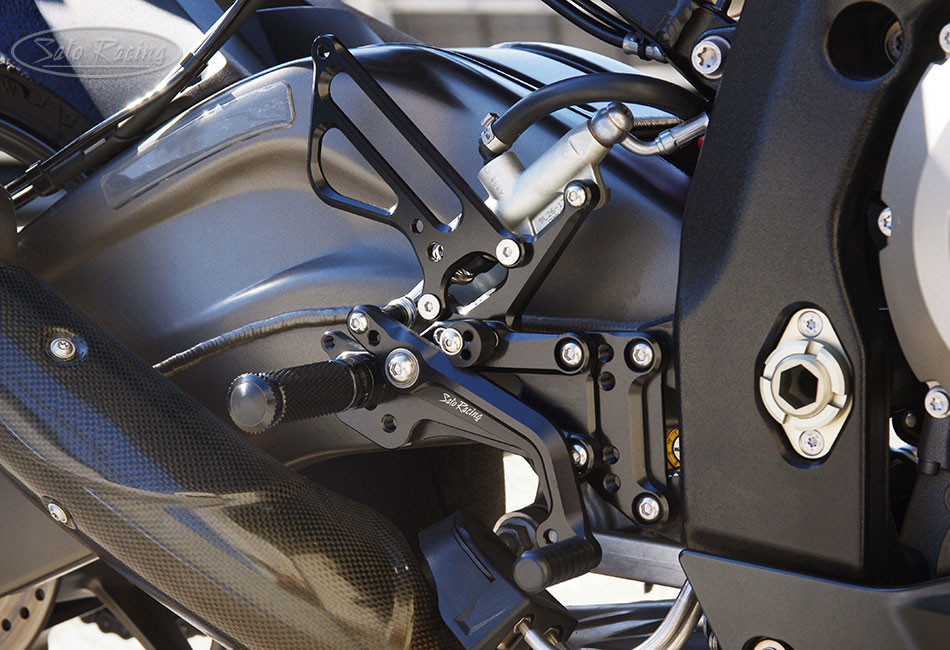

SATO RACING Rear Sets for S1000RR R-side

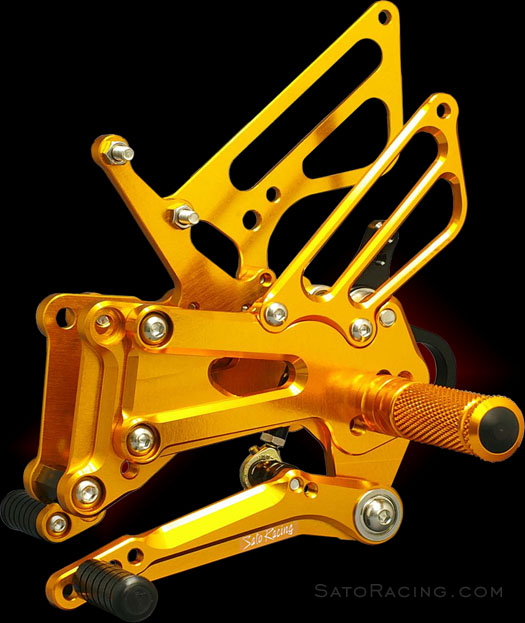

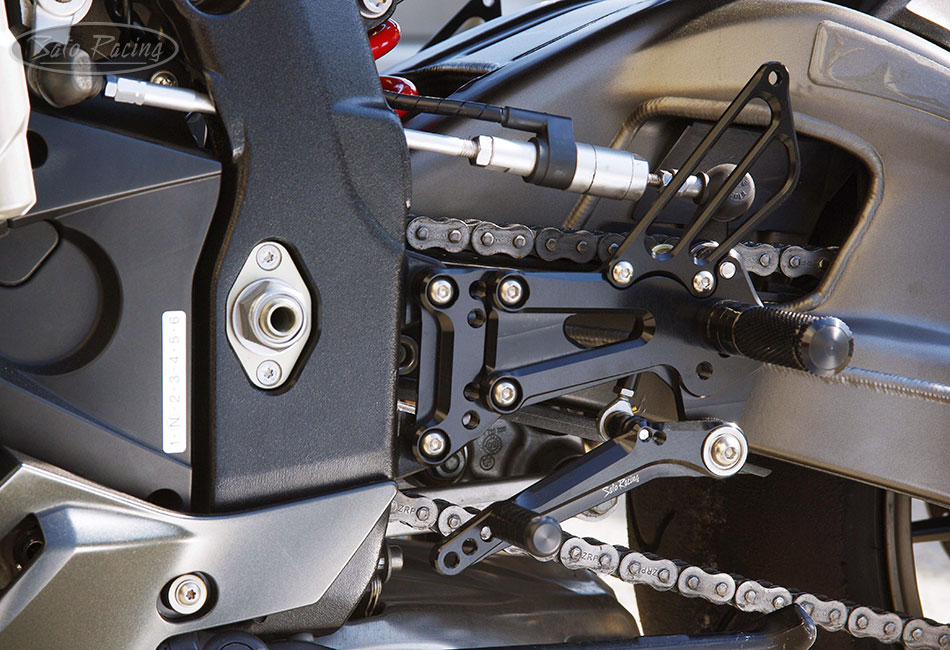

SATO RACING Rear Sets for S1000RR L-side

POSITIONS

1 0 mm 0 mm
2 10mm Back 10mm Up
3 10mm Back 20mm Up
4 20mm Back 10mm Up
5 20mm Back 20mm Up
6 0 mm 12.5mm Up
7 10mm Back 22.5mm Up
8 10mm Back 32.5mm Up
9 20mm Back 22.5mm Up
10 20mm Back 32.5mm Up
11 13mm Back 12.5mm Up
12 23mm Back 22.5mm Up
13 23mm Back 32.5mm Up
14 33mm Back 22.5mm Up
15 33mm Back 32.5mm Up
16* 0 mm 12.5mm Down
17* 10mm Back 2.5mm Down
18* 10mm Back 7.5mm Down
19* 20mm Back 2.5mm Down
20* 20mm Back 7.5mm Down
note: all measurements are in relation to stock position (0 mm).
*Positions 16-20 can be achieved by switching the left and right side base plates.

We also make 'Forward/ Up' Rear Sets for S1000RR that features a single piece base plate design with a slightly different range of positions.

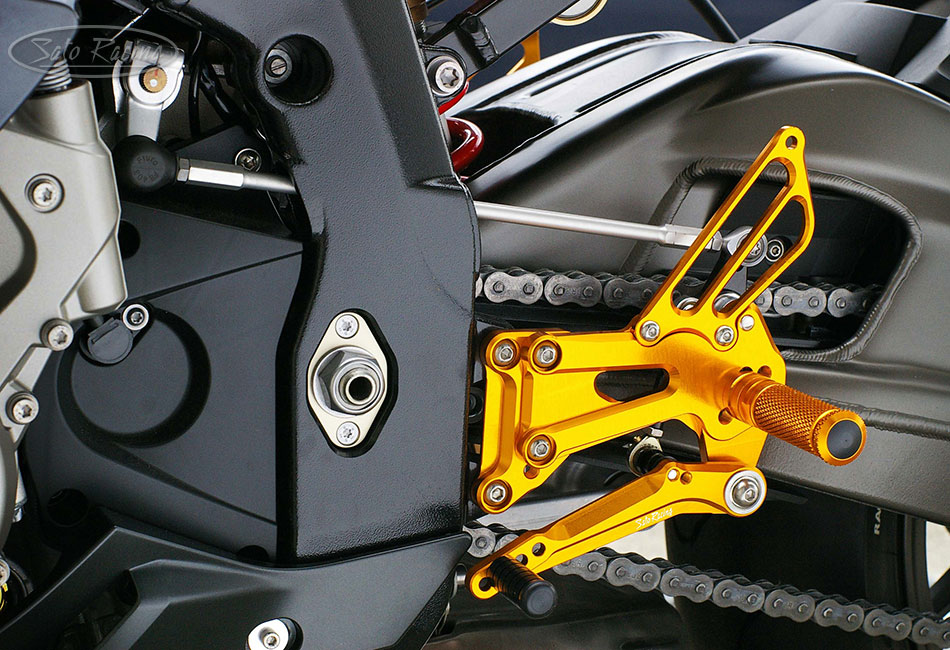

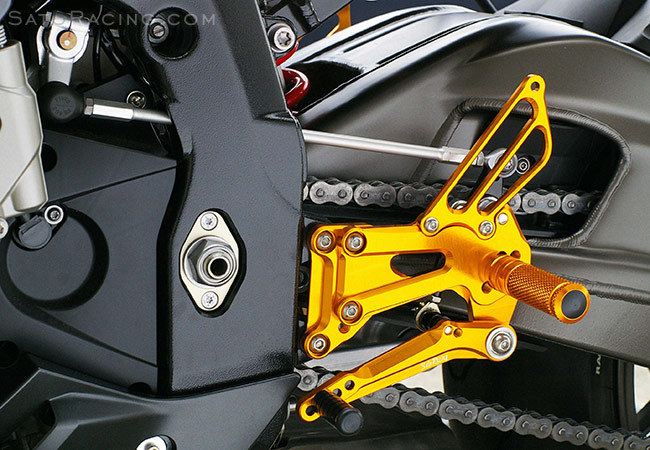

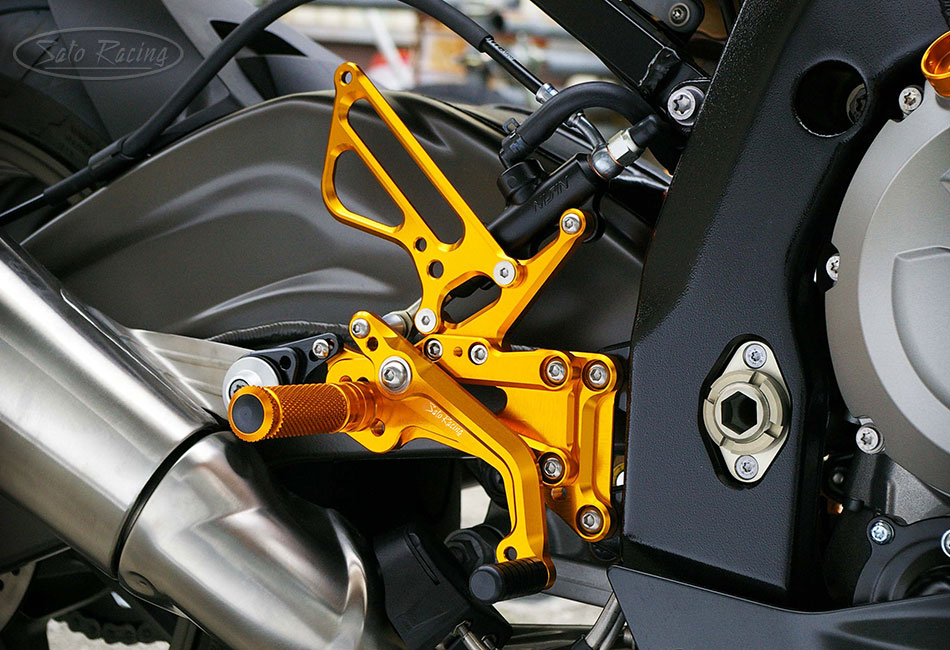

SATO RACING S1000RR '09-'14 Rear Sets in GOLD
Positions of Base Plates, Foot Pegs and Pedal Tips are adjustable.

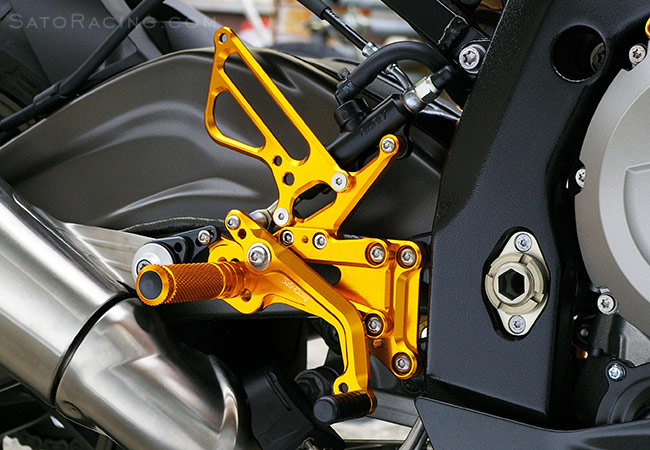

SATO RACING S1000RR '09-'14 Rear Sets in GOLD
Foot Pegs are finely knurled for excellent no-slip grip characteristics.
(2009 non-ABS S1000RR shown)

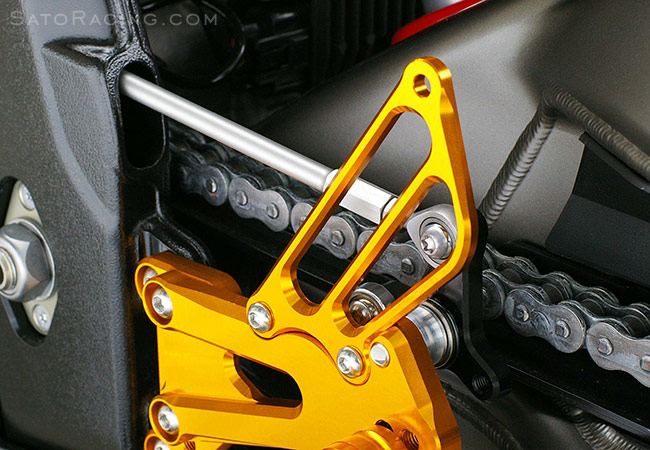

Sato Racing BMW S1000RR Rear Sets [L]-side

Shift linkage can be set up for either stock or reverse (GP-style) shift pattern, using the S1000RR's existing shift rod assembly and frame pass-through. Also compatible with the stock quickshifter on later S1000RR models.

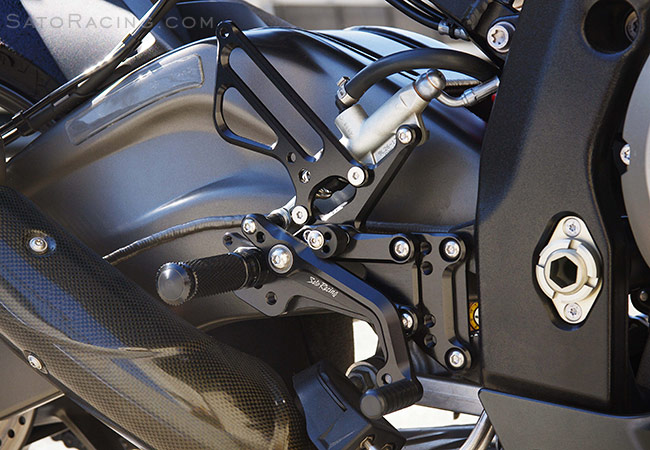

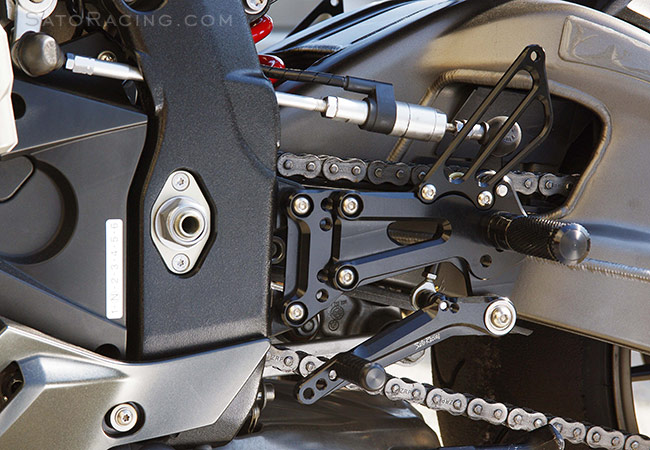

SATO RACING S1000RR '09-'14 Rear Sets in BLACK

SATO RACING S1000RR '09-'14 Rear Sets in BLACK
(2010 ABS version, shown installed without the canister bracket)


animation - stock shift and reverse shift pattern>
You can switch from stock shift to reverse shift pattern
by relocating the shift rod to the opposite hole.




ABS Rear Sets

BLACK BMW-S1RSA-BK
$650
SILVER BMW-S1RSA-SV
$650
GOLD BMW-S1RSA-GD
$650


non-ABS Rear Sets
(for early S1000RR)

BLACK BMW-S1RS-BK
$650
SILVER BMW-S1RS-SV
$650
GOLD BMW-S1RS-GD
$650

(ABS Rear Sets is compatible with the stock brake light switch. A mechanical
brake light switch is included with the non-ABS version of these Rear Sets)





________________________________________________

OPTIONS

________________________________________________




PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



____________________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list included with
your Sato Racing Rear Sets, or view the PDF:
ABS version Rear Sets | Non-ABS version Rear Sets

Some replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to the ABS version unless otherwise specified.)

FOOT PEG
(BK/ SV/ GD)
PEG
$42
PEG COLLAR 15
(BK/ SV/ GD) (#9)
PEGCLR-15
$15
STBT-40 STUD BOLT M8-40
(Foot Peg bolt)
STBT-40
$4.50
PEDAL TIP (DELRIN) ST-001D18
$15
BBT-M620 BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50
[L] HEEL GUARD
(BK/ SV/ GD) (L-side #3)
HG-2L
$50
RDED-CLR19 ROD END COLLAR 19 (BK)
(L-side #10)
RDED-CLR19
$8.00
SOCKET HEAD M6-35mm
(L-side #13)
SBT-M635
$1.75
BUTTON HEAD M6-10mm
(L-side #14)
BBT-M610
$1.50
BBT-M615 BUTTON HEAD M6-15mm
(L-side #15)
BBT-M615
$1.50
BBT-M815 BUTTON HEAD M8-15mm
(L-side #17 / R-side #19)
BBT-M815
$1.50
BBT-M820 BUTTON HEAD M8-20mm
(L-side #18 / R-side #20)
BBT-M820
$1.50
BBT-M825 BUTTON HEAD M8-25mm
(L-side #19 / R-side #21)
BBT-M825
$1.50
BBT-M835 BUTTON HEAD M8-35mm
(L-side #20)
BBT-M835
$2.00
PWS-8 PEG WASHER M8
(L-side #21)
PWS-8
$1.00
REVERSE JAM NUT M6
(L-side #22)
JNT-6L
$2.50
JAM NUT M6
(L-side #23)
JNT-6
$1.75
RDED-M6L M6 MALE
REVERSE ROD END

(L-side #24)
RDED-M6L
$12.50
M6 MALE ROD END
(L-side #25)
RDED-M6
$12.50
SRD-40 SHIFT ROD 40
(BK/ SV/ GD) (L-side #26)
SRD-40
$35
BPCLR-4 BASE PLATE COLLAR 4
(L-side #27)
BPCLR-4
$8.00
RDED-CLR23 ROD END COLLAR 23 (BK)
(R-side #10)
RDED-CLR23
$15.00
BPD-STOPPER PEDAL STOPPER (DELRIN)
(R-side #11)
BPD-STOPPER
$15.00
BGCLR-SUS BEARING COLLAR SUS
(R-side #12)
BGCLR-SUS
$6.50
SBT-M610 SOCKET HEAD M6-10mm
(R-side #14)
SBT-M610
$1.50
BUTTON HEAD M5-20mm
(R-side #15)
BBT-M520
$2.00
BBT-M625 BUTTON HEAD M6-25mm
(R-side #16)
BBT-M625
$1.50
BBT-M650 BUTTON HEAD M6-50mm
(R-side #18)
BBT-M650
$2.50
FBT-M615 FLAT HEAD M6-15mm
(R-side #22)
FBT-M615
$1.50
FBT-M630 FLAT HEAD M6-30mm
(R-side #23)
FBT-M630
$2.00
LNT-6 LOCK NUT M6
(R-side #24)
LNT-6
$1.50
FEMALE ROD END M6
(R-side #25)
RDED-F6
$15.00
RS-RSCLR RETURN SPRING COLLAR
(R-side #26)
RS-RSCLR
$12.00
RS-RSP2 RETURN SPRING 20
(R-side #27)
RS-RSP2
$8.00
CANBT-BMW1 HANGER BRACKET
(R-side #30)
CANBT-BMW1
$60
BBT-M615 BUTTON HEAD M6-15mm
(R-side #31)
BBT-M615
$1.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)


____________________________________________________________________________

More Sato Racing items for 2009-14 BMW S1000RR

Oil Cap Forward/ Up Rear Sets Racing Hooks
