SATO RACING | Rear Sets - Honda CB300R / CB250R ('18- )

HONDA CB300R / CB250R ('18- )
REAR SETS

SATO RACING Rear Sets for 2018-23 Honda CB300R / CB250R features an extensively track-engineered design, with components precision machined from high strength anodized billet aluminum, with stainless steel bolts and hardware. You can select from 4 adjustable foot peg positions in a range that is higher up and further back compared to stock, for a less upright, more racebike-like position ideally suited for performance riding. Choice of all-Black anodized finish, or Silver or Gold anodized finish over contrasting Black anodized base plates.

SATO RACING Rear Sets for Honda CB300R / CB250R [R]-side
The shifter and brake lever utilize double miniature stainless bearings
for smooth, precise lever actuation with a solid, high-quality feel.

SATO RACING Rear Sets for Honda CB300R / CB250R [R]-side
Fully compatible with the stock brake light pull switch. ABS-friendly design.

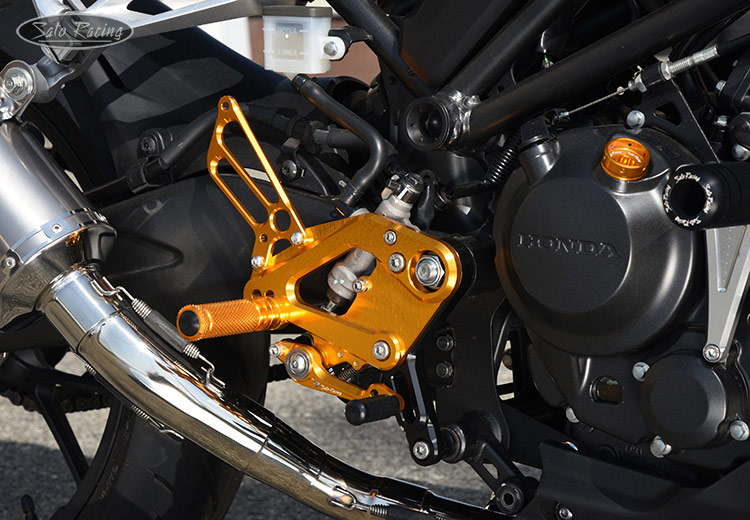

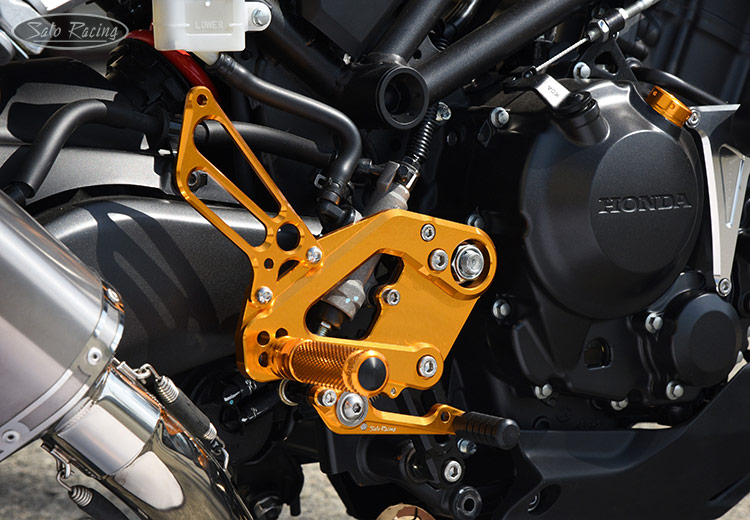

SATO RACING Rear Sets for Honda CB300R / CB250R [R]-side
Rear Sets shown installed together with our Engine Sliders, Oil Filler Cap and Axle Caps.

POSITIONS

1	55mm Back	35mm Up
2	55mm Back	47mm Up
3	67mm Back	35mm Up
4	67mm Back	47mm Up

note: all measurements are in relation to stock position (0 mm).

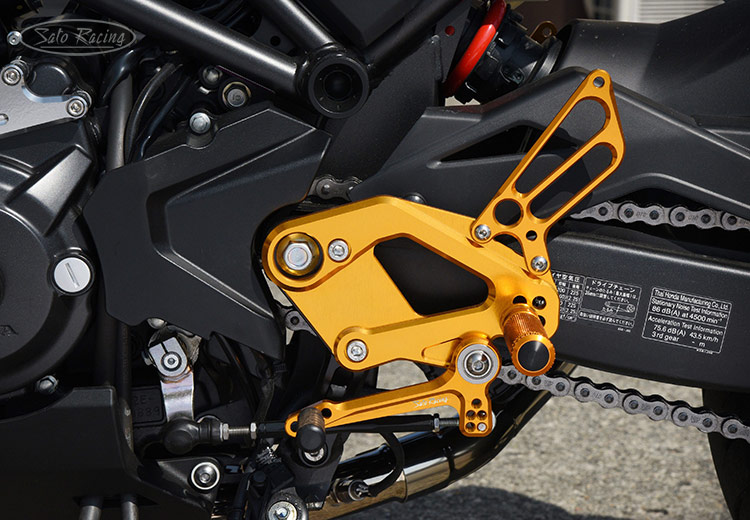

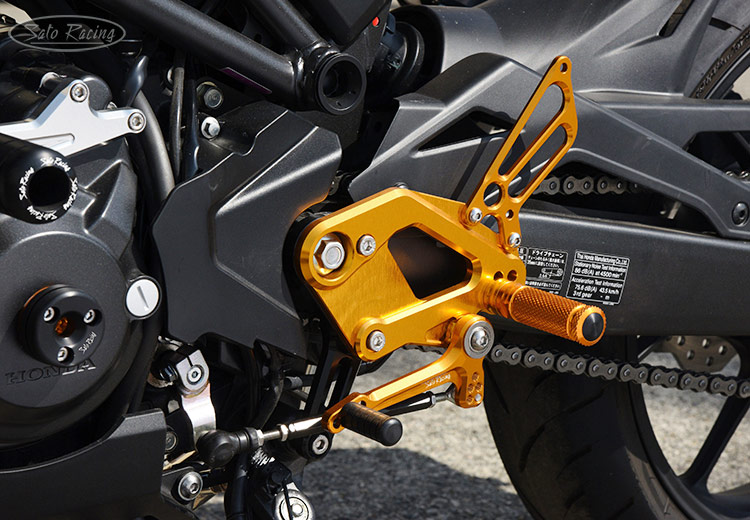

SATO RACING Rear Sets for Honda CB300R / CB250R [L]-side
These Rear Sets provide a stock shifting pattern.
(Reverse/ GP shift is not an option for this model).

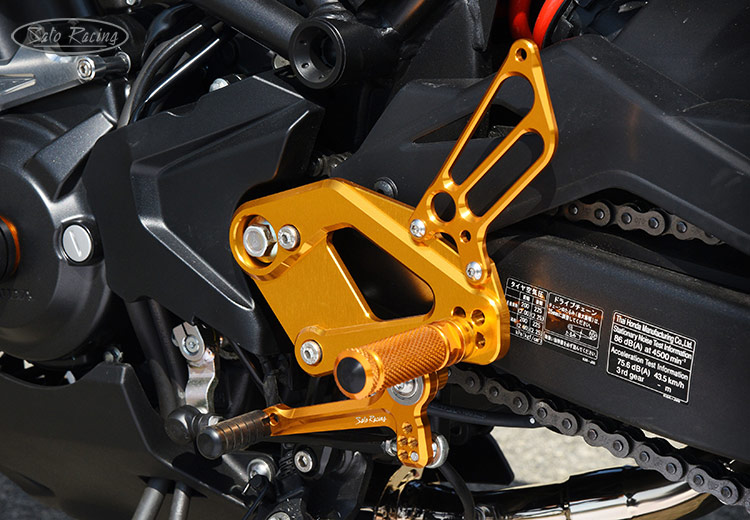

SATO RACING Rear Sets for Honda CB300R / CB250R [L]-side
For maximum rigidity, the stock swingarm pivot bolt is utilized to attach the Step Plates.

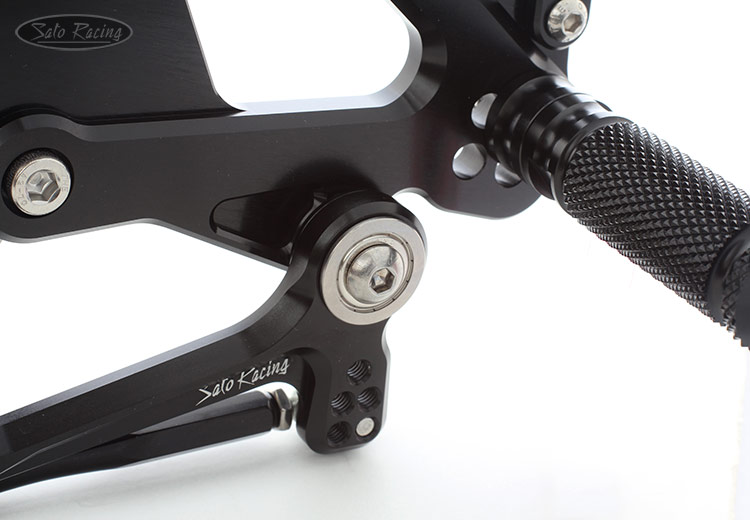

SATO RACING Rear Sets for Honda CB300R / CB250R [L]-side
The base of the shift pedal has multiple attachment points for
attaching the shift rod, useful for adjusting the shift stroke.

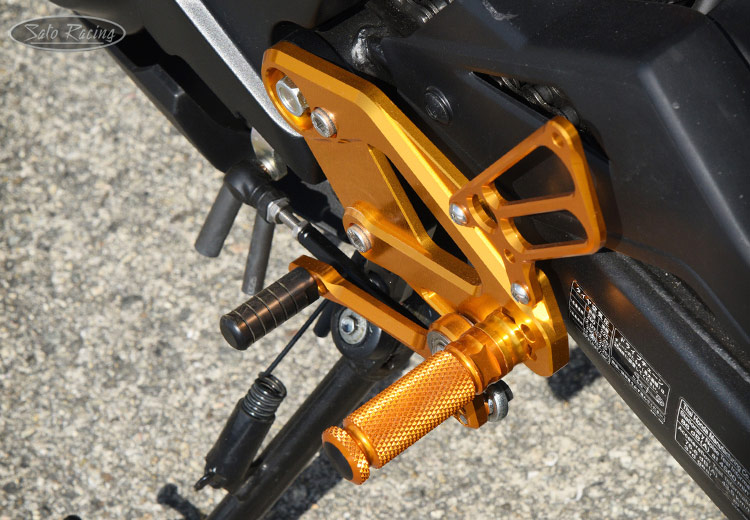

SATO RACING Rear Sets for Honda CB300R / CB250R [L]-side
The Foot Pegs have a finely knurled pattern for optimal grip. The mounting positions
of both the Foot Pegs and the Pedal Tips (toe pegs) can be adjusted to your preference.

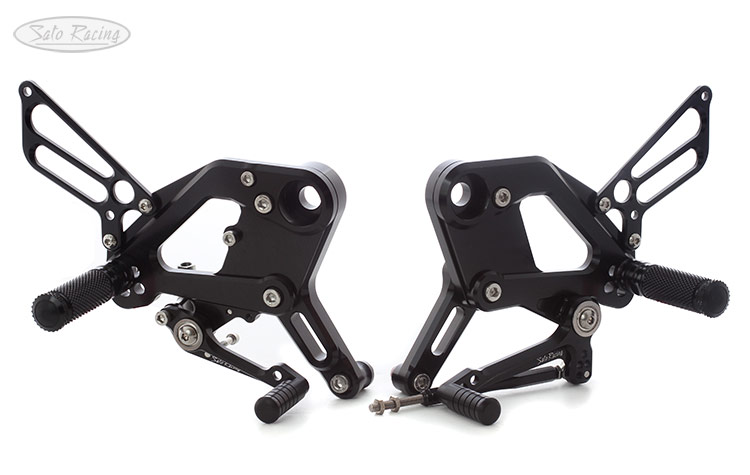

SATO RACING Black-anodized Rear Sets for Honda CB300R / CB250R
Choice of all-Black anodized finish, or Silver or Gold over Black base plates.

SATO RACING Black-anodized Rear Sets for Honda CB300R / CB250R

BLACK	H-CB25018RS-BK $610
SILVER	H-CB25018RS-SV $610
GOLD	H-CB25018RS-GD $610

Click Here for important info about Sato color-anodized parts.

OPTIONS

HONDA CB300R (+ various)
OIL FILLER CAP

SATO RACING Oil Filler Cap part# H-OFCAP-R makes a nice accent for our CB300R Rear Sets! It is precision machined out of billet aluminum alloy. Holes in the outer rim can be used to attach a safety wire. Choice of Black, Silver or Gold anodized finish. (Use with the stock O-ring)

Options include a compact Quickwrench Tool for designed for this Oil Cap that you can keep on your keyring.

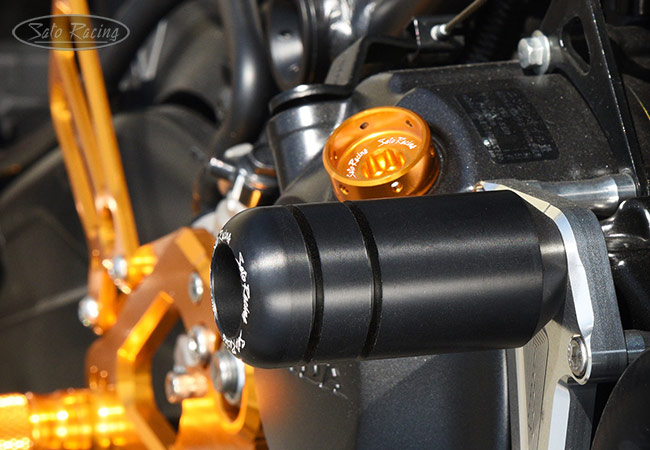

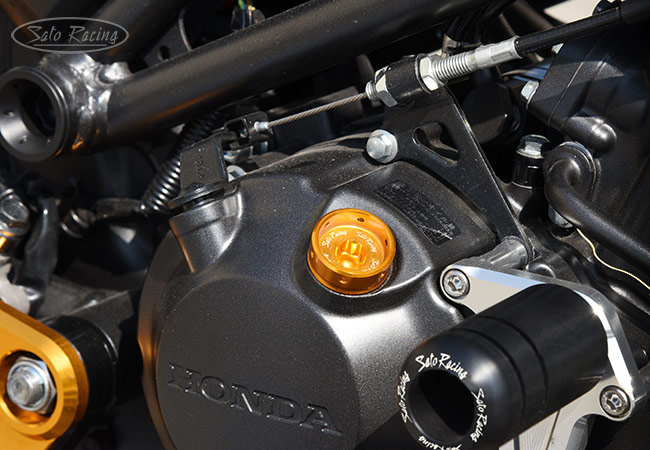

SATO Oil Filler Cap on a 2019 Honda CB300R

Oil Filler Caps for Honda - Choice of Black, Silver or Gold

	BLACK	H-OFCAP-RB $50
	SILVER	H-OFCAP-RS $50
	GOLD	H-OFCAP-RG $50

QUICK-WRENCH
for SATO Oil Cap

OFCAP-TOOL
$32

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $52
	GOLD	RCPEG-GD $52

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of replacement parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated parts list included
with your Sato Racing Rear Sets, or view the PDF parts list: L-side | R-side

Some replacement parts for these Rear Sets
can be purchased in our online store:

	FOOT PEG (BK / SV/ GD)	PEG $48
	HEX HEAD M8-40mm (Foot Peg bolt)	HBT-M840 $2.00
	PEDAL TIP (DELRIN)	ST-001D18 $15
	LOW SOCKET HEAD M6-20mm (for Pedal Tip)	LSBT-M620 $4.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
