SATO RACING | REAR SETS - Triumph T595, T509, 955i, Speed Triple (-'10)

TRIUMPH
T595, T509, 955i, SPEED TRIPLE ('02-'10)
REAR SETS

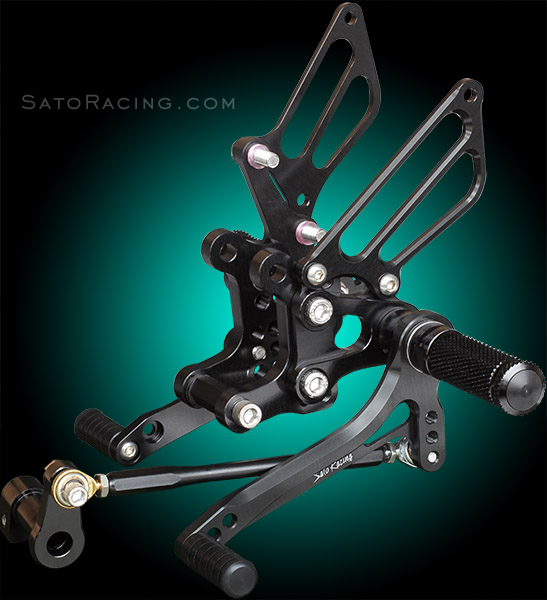

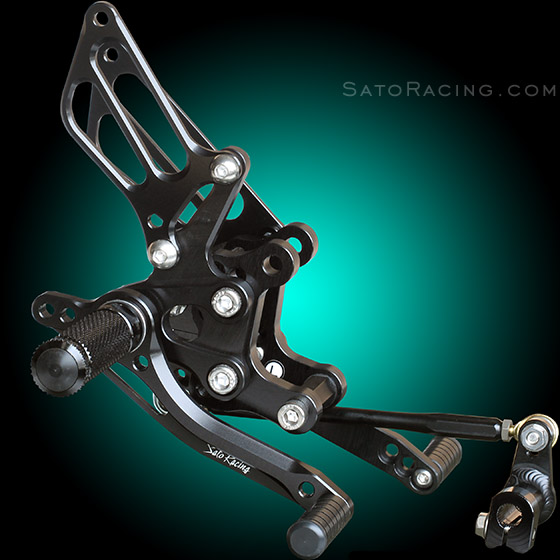

SATO RACING Rear Sets for 1997-2005 Triumph T595 / T509 / 955i / Daytona and 2002-10 Speed Triple* features a track-optimized design, with parts precision CNC-machined from lightweight billet aluminum with a deep Black anodized finish, and fastened together with stainless steel bolts. The shifter and brake utilize miniature double stainless bearings for smooth, precise lever actuation. Foot Pegs are fixed (non-folding) and feature a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. The Pedal Tips (toe pegs) are made of high density, abrasion-resistant Delrin. Modular adjustable design provides 6 unique foot positions, ranging from stock equivalent to more aggressive positions that bring your feet higher and further back, so you can find the ideal position for your riding style. A brake light switch is included with the kit.

SATO RACING Rear Sets for Triumph T595/ T509/ 955i/ Speed Triple (-'10)

POSITIONS

1	0 mm	0 mm
2	0 mm	10mm Up
3	0 mm	20mm Up
4	10mm Back	0 mm
5	10mm Back	10mm Up
6	10mm Back	20mm Up

note: all measurements are in relation to stock position (0 mm).

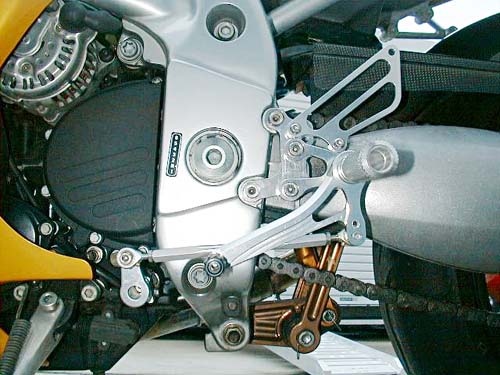

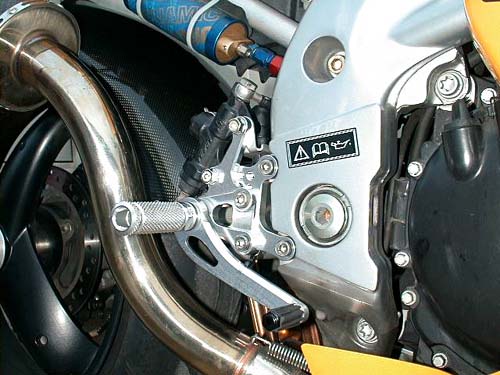

Note: the following install photos depict the original version of these rear sets. The current design version has an updated lever design along with a few other cosmetic changes. (See photos at top of page)

SATO RACING Rear Sets for Triumph T595/ T509/ 955i/ Speed Triple (-'10)
NOTE: A R-side heel guard (not pictured) is included with this kit.

SATO RACING Rear Sets for Triumph T595/ T509/ 955i/ Speed Triple (-'10)

These Rear Sets are designed for stock shift pattern. Reverse shift pattern is not an option on this model.

BLACK

T-595RS-BK
$580

(A brake light switch is included with the kit.)

*NOTE: Installation on '05-'10 Speed Triple requires a longer master brake hose.

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List

Some replacement parts for these Rear Sets
can be purchased in our online store:

	FOOT PEG (BK/ SV/ GD)	PEG $42
	STUD BOLT LONG (M8x65mm) (L-side peg bolt)	STBT-L $4.50
	STUD BOLT SHORT (M8x55mm) (R-side peg bolt)	STBT-S $4.50
	PEG WASHER - M8 (L-side #9 / R-side #15)	PWS-8 $1.00
	PEDAL TIP (DELRIN)	ST-001D18 $15
	BUTTON HEAD M6-20mm (for Pedal Tip)	BBT-M620 $1.50
	SOCKET HEAD M8-15mm (#2)	SBT-M815 $1.50
	M6 MALE ROD END (L-side #6)	RDED-M6 $12.50
	ROD END COLLAR 3 (L-side #7)	RDED-CLR3 $6.00
	[L] HEEL GUARD (BK/ SV/ GD) (L-side #13)	HG-2L $60
	JAM NUT M6 (L-side #17)	JNT-6 $1.75
	REVERSE JAM NUT M6 (L-side #18)	JNT-6L $2.50
	M6 MALE REVERSE ROD END (L-side #19)	RDED-M6L $12.50
	FLANGE NUT M8 (L-side #20 / R-side #11)	FNT-8 $1.50
	FLANGE HEAD M6-20mm (L-side #22)	FGBT-M620 $2.00
	WASHER M6 (L-side $24 / R-side #13)	WS-6 $1.00
	BRAKE ROD M40 (R-side #4)	BRD-M40 $13.50
	BEARING COLLAR SUS (R-side #8)	BGCLR-SUS $6.50
	BUTTON HEAD M8-30mm (R-side #12)	BBT-M830 $2.00
	E-CLIP M6 (R-side #14)	ECP-6 $1.50
	BRAKE LIGHT SWITCH (P-1.25)	BSW-125 $25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
