aprilia RS660 / Tuono 660  ('21-)
REAR SETS

SATO RACING Rear Sets for 2021-22 aprilia RS660 and Tuono 660 features a track-engineered design, with components precision crafted out of light-weight, high strength anodized billet aluminum. Adjustable design provides 5 foot peg positions in useful range for spirited riding. Choice of Black, Silver or Gold anodized finish.

2 versions of these Rear Sets are available:
A-660RS works with the standard shift linkage (no quickshifter).
A-660SRS is designed for use with the OEM quickshifter.

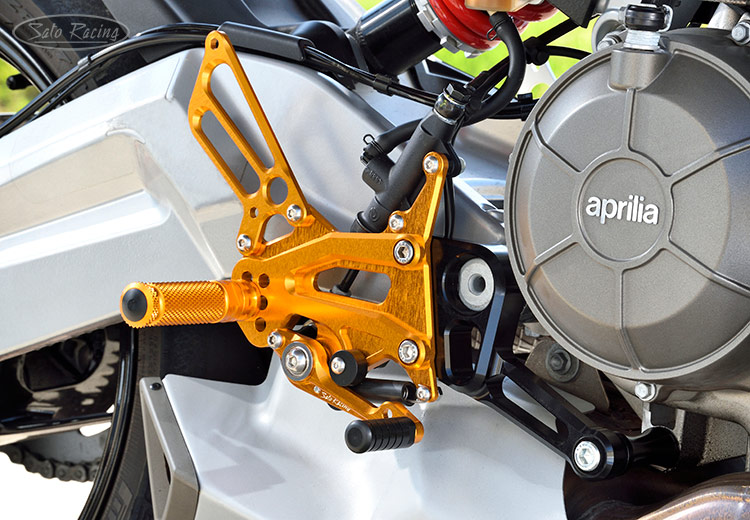

SATO RACING Aprilia RS660 Rear Sets [R]-side in Gold
The shift and brake pedals use miniature double stainless bearings for smooth, precise lever actuation.
This set is fully compatible with the stock brake light switch and ABS.

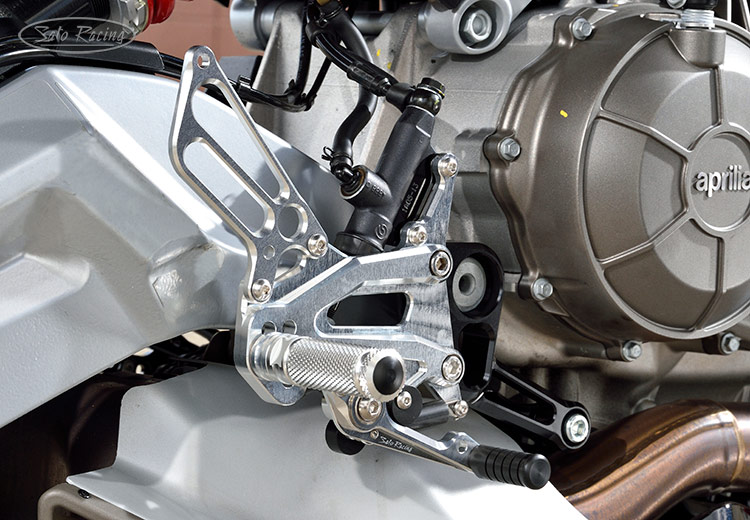

SATO RACING Aprilia RS660 Rear Sets [R]-side in Silver
The shift and brake pedals use miniature double stainless bearings for smooth, precise lever actuation.
The Base Plates have a contrasting black anodized finish, giving the controls a floating appearance.

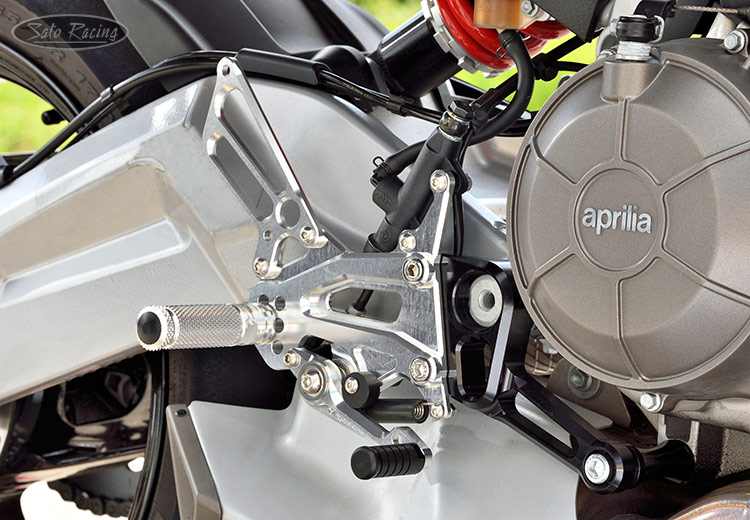

SATO RACING Aprilia RS660 Rear Sets [R]-side in Silver
You can adjust the positions of the Foot Peg and the Pedal Tip. The Foot Pegs
have a knurled pattern for great grip, along with a comfortable, intuitive feel.



The Shift Lever is double-ended so it can be set up for either stock or reverse (GP-style) shift pattern.

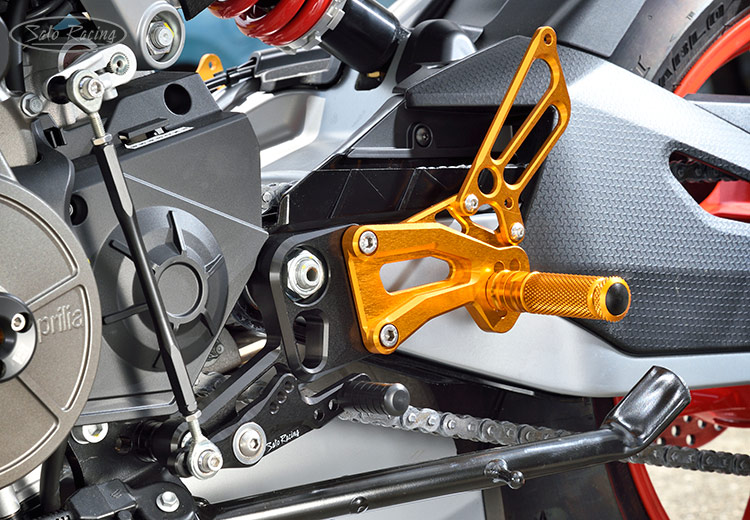

(Rear Sets part# A-660RS-GD for standard shift linkage shown above.)

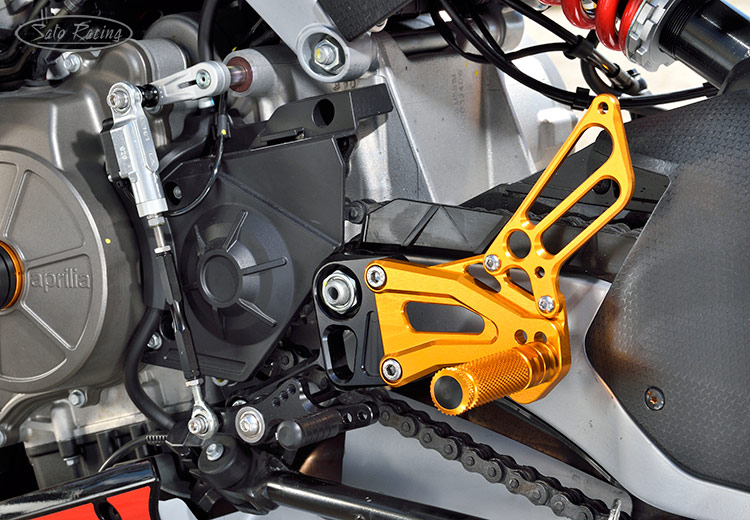

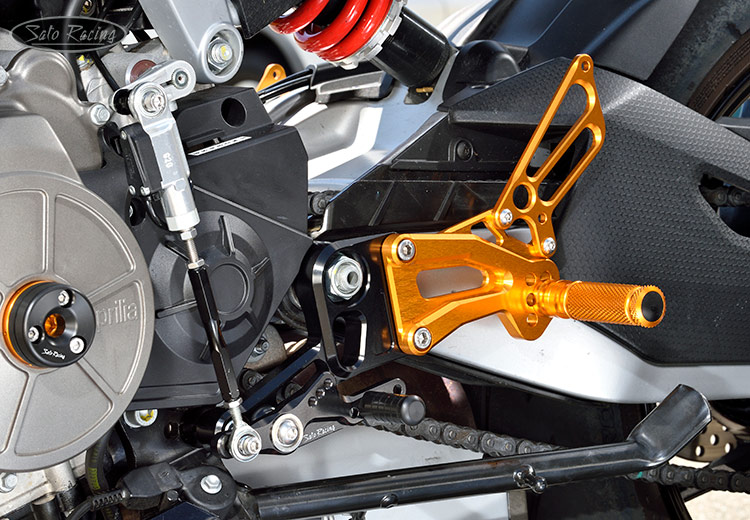

Quickshifter-compatible Rear Sets part# A-660SRS-GD


The standard Pedal Tips are made of tough black Delrin. Additional Pedal Tip styles, such as
aluminum Pedal Tips with fluted rubber sleeves, are an available option:  More Details

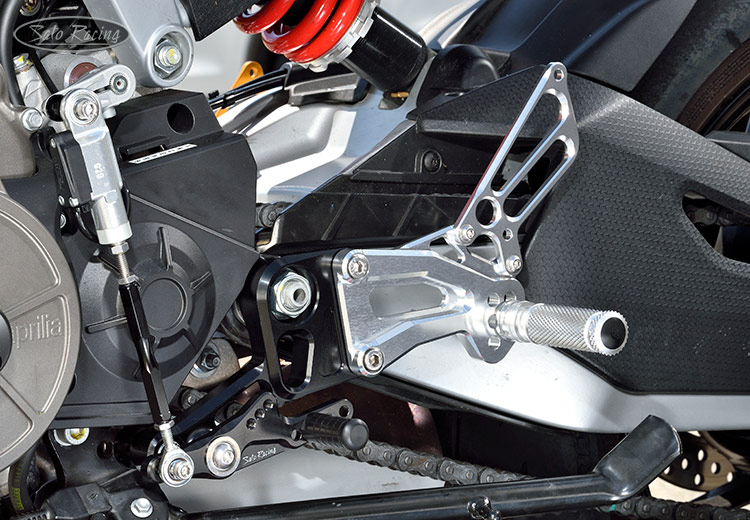

SATO RACING Aprilia RS660 / Tuono660  ('21) Rear Sets [L]-side in Silver




REAR SETS for standard shifter

BLACK A-660RS-BK
$765
SILVER A-660RS-SV
$765
GOLD * A-660RS-GD
$765


REAR SETS for quickshifter

BLACK A-660SRS-BK
$765
SILVER A-660SRS-SV
$765
GOLD A-660SRS-GD
$765



Click Here for important info about Sato color-anodized parts.

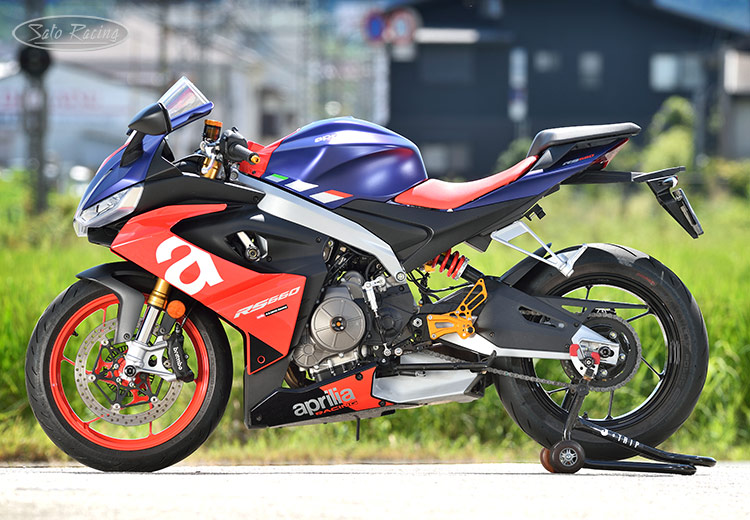

2021 Aprilia RS660 with SATO RACING Rear Sets, Sliders and other parts.
2021 Aprilia RS660 with SATO RACING Rear Sets, Sliders and other parts.




OPTIONS



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



_____________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list PDF file:
L-SIDE (quickshifter version)    |    R-SIDE


Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG
(BK/ SV/ GD)
PEG
$42
PEG COLLAR 15
(BK/ SV/ GD) (#19)
PEGCLR-15
$15
HEX HEAD M8-40mm
(#27, Foot Peg bolt)
HBT-M840
$2.00
PEDAL TIP (DELRIN)
(#13)
ST-001D18
$15
LSBT-M620 LOW SOCKET HEAD
M6-20mm
(#28, for Pedal Tip)
LSBT-M620
$4.00
HG-6L [L] HEEL GUARD
(BK/ SV/ GD) (L-side #1)
HG-6L
$60
HG-6R [R] HEEL GUARD
(BK/ SV/ GD) (R-Side #2)
HG-6R
$60
SRD-80 SHIFT ROD 80
[BLACK] (L-side #9)
SRD-80-B
$39
SBT-M618 SOCKET HEAD M6-18mm
(L-side #22)
SBT-M618
$2.00
SBT-M625 SOCKET HEAD M6-25mm
(R-side #23)
SBT-M625
$1.50
BBT-M610 BUTTON HEAD M6-10mm
(#32)
BBT-M610
$1.50
BUTTON HEAD M6-45mm
(R-side #33)
BBT-M645
$1.75
BUTTON HEAD M8-25mm
(#34)
BBT-M825
$1.50
STUD M6
(#35)
STUD-M6
$2.50
NUT M5   (R-side #36) NUT-5
$1.50
JAM NUT M6
(#37)
JNT-6
$1.75
REVERSE JAM NUT M6
(#38)
JNT-6L
$2.50
LNT-6 LOCK NUT M6
(R-side #40)
LNT-6
$1.50
SPLIT WASHER M8
(#42)
SWS-8
$1.20
M6 MALE
REVERSE ROD END

(L-side #43)
RDED-M6L
$12.50
FEMALE ROD END M6
(R-side #44)
RDED-F6
$12.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)


_____________________________________________________________________

More Sato Racing items for Aprilia RS660 / Tuono 660

Swingarm Spools Racing Hooks Frame Sliders
