YAMAHA YZF-R6 ('03-'05)
REAR SETS

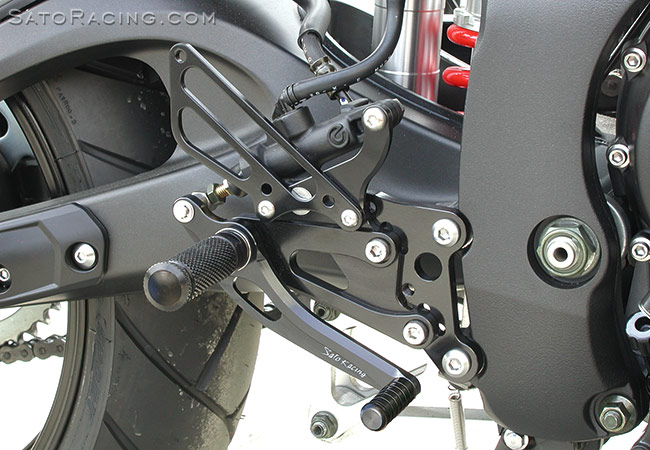

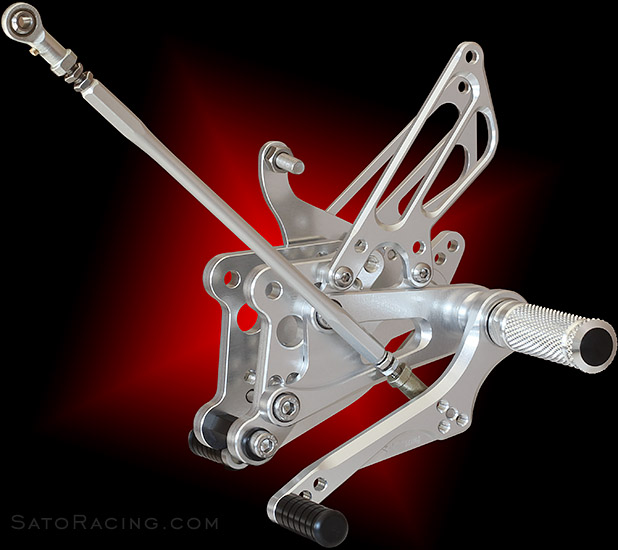

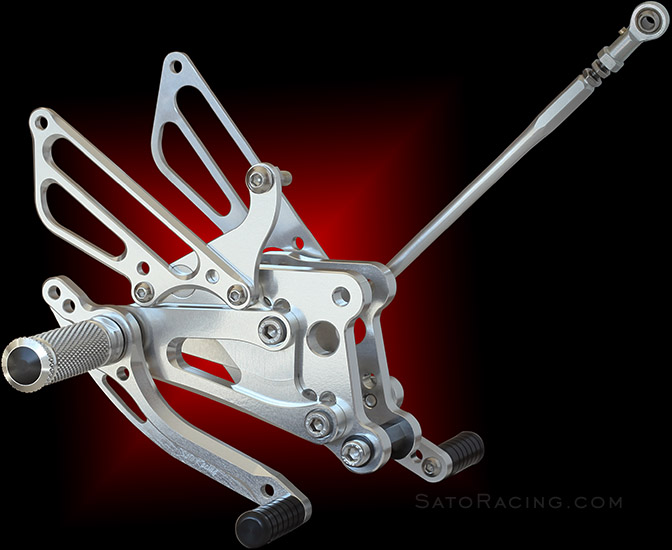

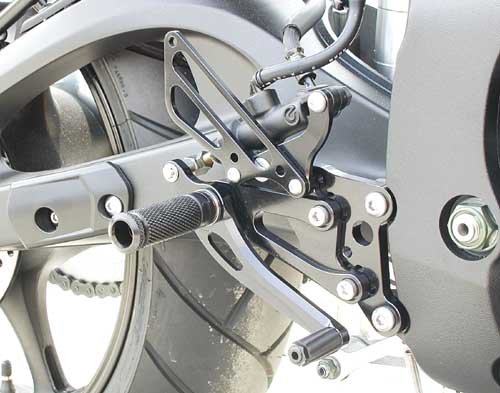

| SATO RACING Rear Sets for 2003-05 YZF-R6 (along with 2006 R6S) are CNC-machined from high grade billet aluminum anodized in a deep Black finish. The shift and brake pedals feature double stainless bearings for smooth movement and solid pedal feel. Deeply knurled footpegs provide optimal grip even in wet conditions. Modular step plate design lers you choose from 6 adjustable positions. You can switch from stock shift pattern to reverse shift pattern by rotating the stock change arm. (Note: the photos below show these Rear Sets in Silver. These Rear Sets are currently available in Black only) |
| 1 | 10mm Forward | 0 mm |
| 2 | 0 mm | 0 mm |
| 3 | 0 mm | 10mm Up |
| 4 | 10mm Back | 10mm Up |
| 5 | 10mm Back | 20mm Up |
| 6 | 20mm Back | 20mm Up |
note: all measurements are in relation to stock position (0 mm).

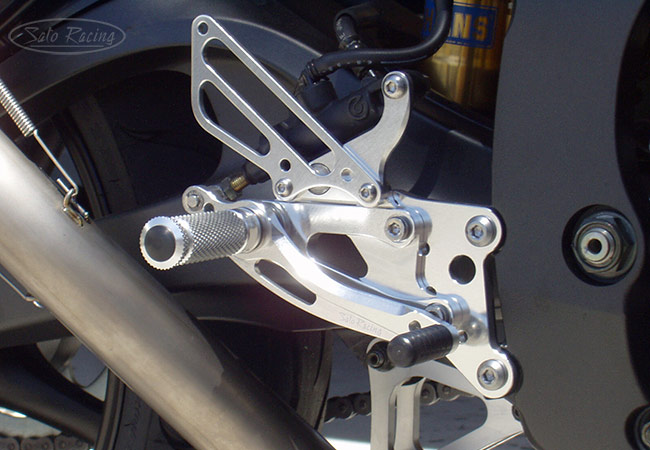

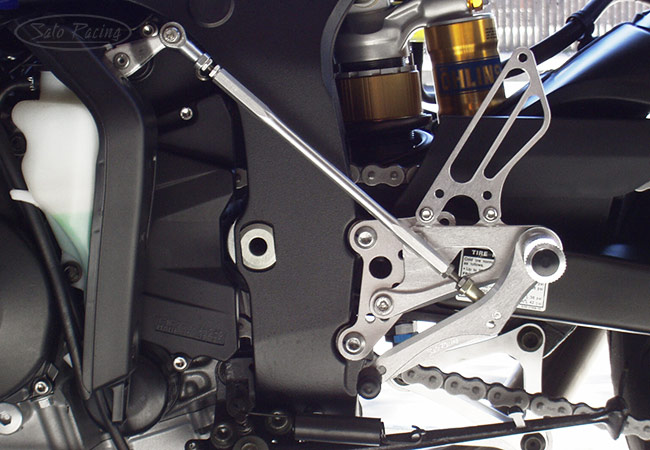

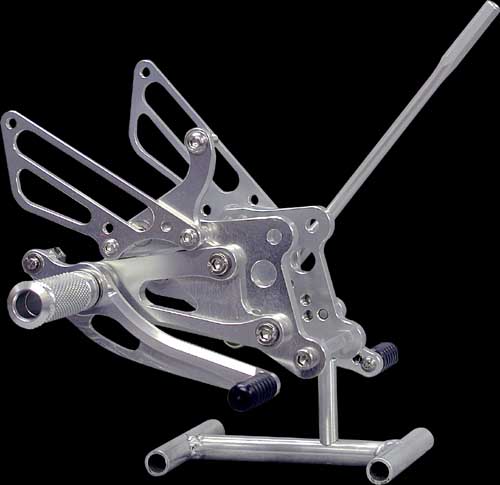

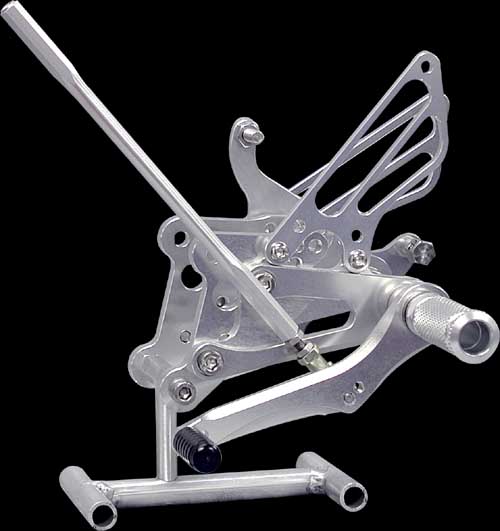

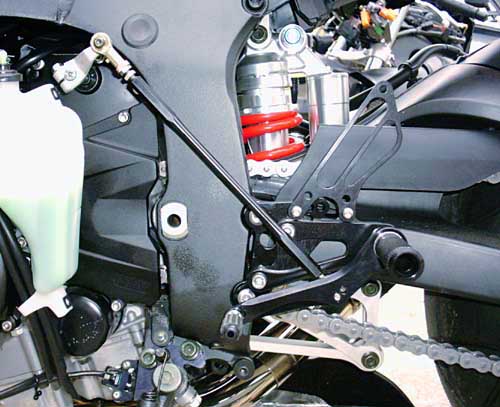

NOTE: The following install photos show the original version of our R6 Rear Sets.
Our latest version of these Rear Sets have an updated brake pedal design, along with
other cosmetic differences. (see photos above).

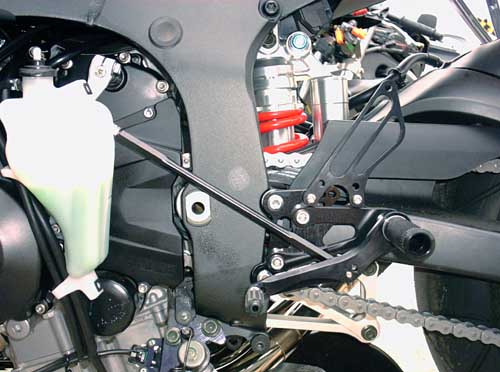

You can switch from stock shift to reverse shift pattern
by rotating the change arm.
| BLACK | Y-R603RS-BK $520 |
 |
(Brake light switch is included in kit)
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some common replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG [BLACK] | PEG-BK $38 |
|
 |
FOOT PEG [SILVER] | PEG-SV $38 |
|
 |
FOOT PEG [GOLD] | PEG-GD $38 |
|
 |
STUD BOLT LONG (M8-65mm) (L-side peg bolt) |
STBT-L $4.50 |
|
 |
STUD BOLT SHORT (M8-55mm) (R-side peg bolt) |
STBT-S $4.50 |
|
 |
FLANGE NUT M8 (for peg bolt) |
FNT-8 $1.50 |
|
 |
BEARING COLLAR SUS (R-side #7) |
BGCLR-SUS $6.50 |
|
 |
PEG WASHER - M8 (L-side #9 / R-side #19) |
PWS-8 $1.00 |
|
 |
PEDAL TIP (DELRIN) |
ST-001D $15 |
|
 |
BUTTON HEAD M6-25mm (L-side #5) |
BBT-M625 $1.50 |
|
 |
BUTTON HEAD M6-20mm (L-side #4 / R-side #5) |
BBT-M620 $1.50 |
|
 |
ROD END COLLAR 3 (L-side #19) |
RDED-CLR3 $6.00 |
|
 |
WASHER M6 (R-side #15) |
WS-6 $1.00 |
|
 |
E-CLIP M6 (R-side #13) |
ECP-6 $1.50 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
Some additional parts such as Shift Rod, Rod Ends and related hardware can be found HERE.
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
