HONDA CBR600RR ('09-'12, non-ABS)
REAR SETS

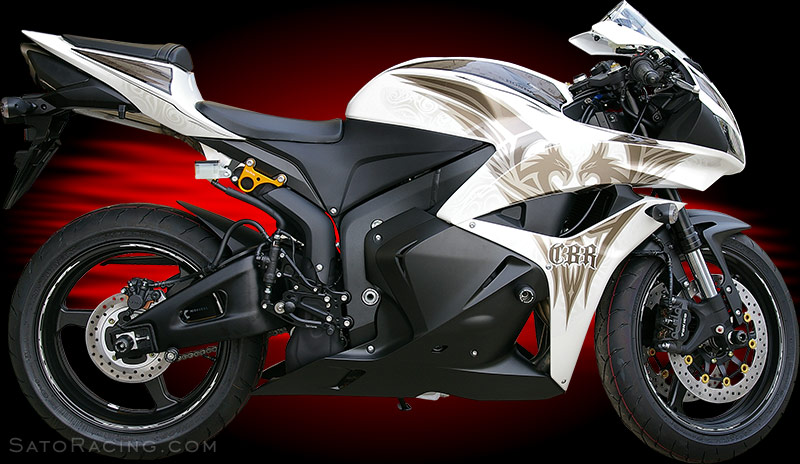

2009 Honda CBR600RR with SATO RACING Rear Sets, Frame Sliders and other parts

SATO RACING Rear Sets for 2009-12 Honda CBR600RR features an extensively track-tested design, with components precision machined out of light-weight, high strength billet aluminum in your choice of Black, Silver or vivid Gold anodized finish. Modular adjustable design lets you select from 12 positions, ranging from stock-equivalent position to more aggressive positions that bring your feet higher up and further back compared to stock. These Rear Sets can be set up for stock shift pattern or reverse (GP) shift pattern.

Options include a Shift Spindle Holder that adds extra strength and rigidity to the shift linkage for heavy duty shift action.

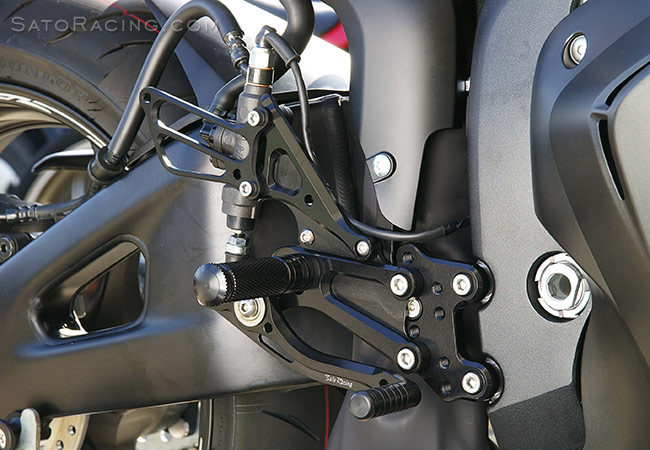

SATO RACING Honda CBR600RR '09-'12 Rear Sets [R]

The shift and brake pedals utilize double miniature stainless bearings for smooth, precise lever actuation with a solid feel. The foot pegs are finely knurled for optimal grip, along with a comfortable, intuitive feel.

The standard Pedal Tips are made of abrasion-resistant black Delrin. Additional Pedal Tip styles, such as aluminum Pedal Tips with fluted rubber grips, are also available.

SATO RACING Honda CBR600RR '09-'12 Rear Sets [R]

The modular design of these Rear Sets provides a wide range of adjustable positions so you can find the ideal position that best suits your stature and your riding style.

A brake light switch that attaches to the master cylinder is included with the Rear Sets.
(A right side heel guard, not pictured here, is also included with these Rear Sets).

POSITIONS

1 0mm 0mm
2 0mm 10mm Up
3 10mm Back 10mm Up
4 3mm Back 15mm Up
5 3mm Back 25mm Up
6 13mm Back 25mm Up
7 23mm Back 15mm Up
8 23mm Back 25mm Up
9 33mm Back 25mm Up
10 26mm Back 30mm Up
11 26mm Back 40mm Up
12 36mm Back 40mm Up

note: all measurements are in relation to stock position (0 mm).

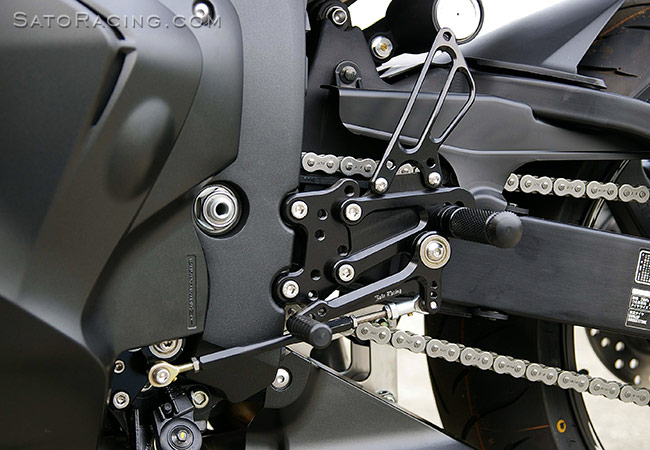

SATO RACING Honda CBR600RR '09-'12 Rear Sets [L]-side

Multiple adjustment holes on the shift pedal let you fine tune the shift stroke. (Note: The latest design version of our Rear Sets has a different shift pedal design than is shown in these photos, with a few additional adjustment holes).

An optional Shift Spindle Holder works well with these Rear Sets, reinforcing the stock shift spindle to help to reduce excessive play or binding in the shift linkage.

SATO RACING Honda CBR600RR '09-'12 Rear Sets [L]-side

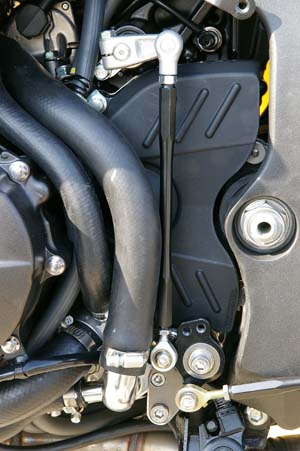

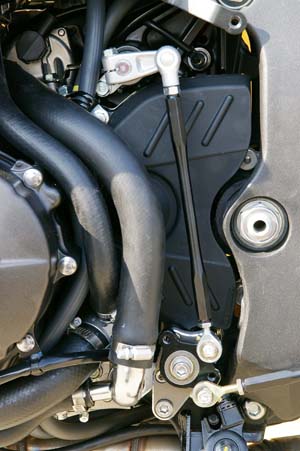

You can eet it up for stock shift pattern to 'GP-style' reverse shift pattern by changing the mounting points of the shift rods on the shift link.    (See photos below)

stock shiftreverse shift
STOCK SHIFT                                  REVERSE SHIFT



Note: These Rear Sets are designed for CBR600RR with standard brakes.
They will NOT work with models that have the optional ABS.
(For ABS version, click HERE)


BLACK H-CBR609RS-BK
$595
SILVER H-CBR609RS-SV
$595
GOLD H-CBR609RS-GD
$595

(Brake light switch is included in kit)


Click Here for important info about Sato color-anodized parts.





OPTIONS


Honda CBR600RR ('07-'23)
SHIFT SPINDLE HOLDER

Reduces excessive lateral play in the shift spindle for more precise shift action in heavy duty track use. Works great with SATO CBR600RR Rear Sets. Gold anodized billet aluminum with a Teflon-coated bushing.

SATO RACING CBR600RR '07-'20 Shift Spindle Holder

SATO RACING CBR600RR '07-'20 Shift Spindle Holder


GOLD H-CBR613RS-SHDR
$90


___________________________________________________________________________________



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.




___________________________________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



___________________________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
  Parts List


Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG
(BK/ SV/ GD)
PEG
$42
PEG COLLAR 12
(BK/ SV/ GD)
PEGCLR-12
$15
HEX HEAD M8-40mm
(Foot peg bolt)
HBT-M840
$2.00
PEDAL TIP (DELRIN) ST-001D18
$15
BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50
SK-2 SHIFT LINK
(L-side #7)
SK-2
$58
ROD END COLLAR 3
(L-side #10)
RDED-CLR3
$6.00
RDED-CLR10 ROD END COLLAR 10
(L-side #13)
RDED-CLR10
$8.00
PEGBGCLR-5 BEARING COLLAR 5
(L-side #14)
PEGBGCLR-5
$15.00
SRD-120 SHIFT ROD 120
(BK/ SV/ GD)   (L-side #16)
SRD-120
$39
SRD-160-B SHIFT ROD 160
(BLACK)   (L-side #17)
SRD-160-B
$39
SOCKET HEAD M6-20mm
(L-side #19)
SBT-M620
$1.50
SOCKET HEAD M6-30mm
(L-side #20)
SBT-M630
$1.50
SOCKET HEAD M6-40mm
(L-side #21 / R-side #13)
SBT-M640
$2.00
SOCKET HEAD M6-80mm
(L-side #22)
SBT-M680
$3.50
SBT-M815 SOCKET HEAD M8-15mm
(L-side #23 / R-side #14)
SBT-M815
$1.50
SBT-M820 SOCKET HEAD M8-20mm
(L-side #24)
SBT-M820
$1.50
BBT-M610 BUTTON HEAD M6-10mm
(L-side #25 / R-side #16)
BBT-M610
$1.50
BBT-M825 BUTTON HEAD M8-25mm
(L-side #27 / R-side #18)
BBT-M825
$1.50
BBT-M830 BUTTON HEAD M8-30mm
(L-side #28)
BBT-M830
$2.00
SPLIT WASHER M8
(L-side #29 / R-side #21)
SWS-8
$1.20
PWS-8 PEG WASHER M8
(L-side #30)
PWS-8
$1.20
STUD-M6 STUD M6   (L-side #31) STUD-M6
$2.50
JNT-6 JAM NUT M6
(L-side #32)
JNT-6
$1.75
JNT-6L REVERSE JAM NUT M6
(L-side #33)
JNT-6L
$2.50
RDED-M6 MALE ROD END M6
(L-side #34)
RDED-M6
$12.50
RDED-M6L M6 MALE
REVERSE ROD END

(#35)
RDED-M6L
$12.50
RDED-F6 FEMALE ROD END M6
(L-side #36)
RDED-F6
$15
BASE PLATE COLLAR 10
(R-side #10)
BPCLR-10
$8.00
SBT-M830 SOCKET HEAD M8-30mm
(R-side #15)
SBT-M830
$1.50
FBT-M610 FLAT HEAD M6-10mm
(R-side #19)
FBT-M610
$1.50
FBT-M615 FLAT HEAD M6-15mm
(R-side #20)
FBT-M615
$1.50
NUT-M6 NUT M6   (R-side #23) NUT-6
$1.00
[R] HEEL GUARD
(BK/ SV/ GD) (R-side #24)
HG-1R
$50
BBT-M625 BUTTON HEAD M6-25mm
(R-side #25)
BBT-M625
$1.50
BEARING COLLAR SUS
(R-side #26)
BGCLR-SUS
$6.50
BRAKE LIGHT SWITCH
(P-1.25)

BSW-125
$25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
