KTM 1290 SUPER DUKE R ('20- )
REAR SETS
| SATO RACING
Rear Sets for 2020+ KTM 1290 Super Duke R features components precision CNC-machined out of high strength billet aluminum and anodized
in your choice of a deep Black or vivid Gold finish. Provides 4 adjustable foot peg positions in a range that brings your feet up higher
compared to stock, so you can find the ideal position for your riding style. Available options include a Shift Spindle Holder that reinforces the shift spindle shaft for heavy duty shift action. |
POSITIONS
| 1 | 13mm Back | 13mm Up |
| 2 | 13mm Back | 25mm Up |
| 3 | 25mm Back | 25mm Up |
| 4 | 25mm Back | 37mm Up |
note: all measurements are in relation to stock position (0 mm).

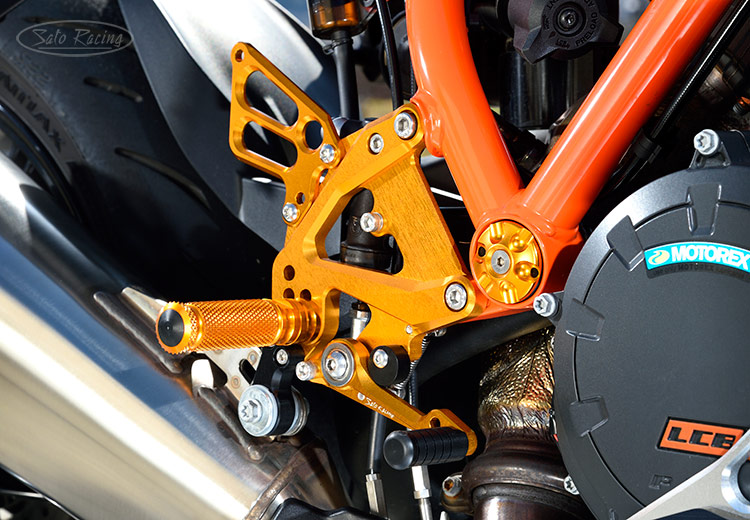

![SATO RACING KTM 1290 Super Duke R 2020 Rear Sets [R]-side](pics/KTM-129020RS-GD_fitR1_750x520.jpg "SATO RACING KTM 1290 Super Duke R 2020 Rear Sets [R]-side")
The shift and brake pedals utilize miniature double stainless bearings
for smooth, precise lever actuation with a solid, high quality feel.

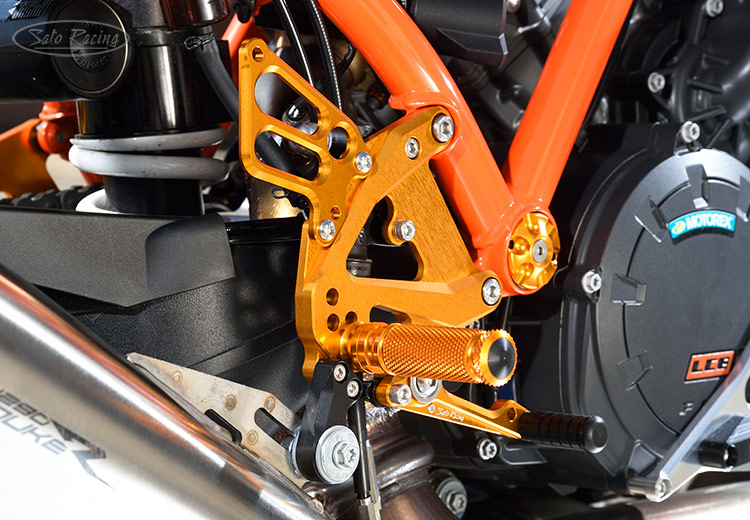

![SATO RACING KTM 1290 Super Duke R 2020 Rear Sets [R]-side](pics/KTM-129020RS-GD_fitR2_750x520.jpg "SATO RACING KTM 1290 Super Duke R 2020 Rear Sets [R]-side")
Foot Pegs feature a finely knurled pattern for a comfortable feel along with excellent grip.
The standard Pedal Tips are made of tough Delrin. We also offer other Pedal Tip options,
including Rubber-sleeved aluminum Pedal Tips. Click Here for details.

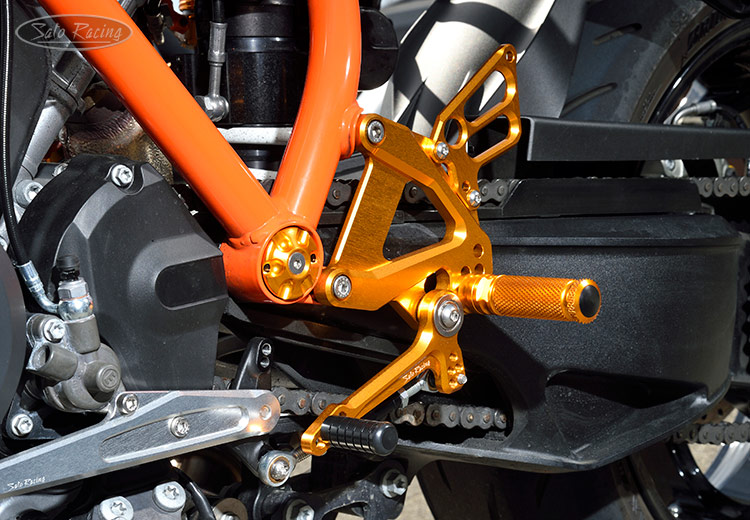

![SATO RACING KTM 1290 Super Duke R 2020 Rear Sets [L]-side](pics/KTM-129020RS-GD_fitL1_750x520.jpg "SATO RACING KTM 1290 Super Duke R 2020 Rear Sets [L]-side")
The multiple adjustment holes on the shift pedal let you fine-tune the shift stroke.
(Rear Sets shown installed with optional Shift Spindle Holder.)

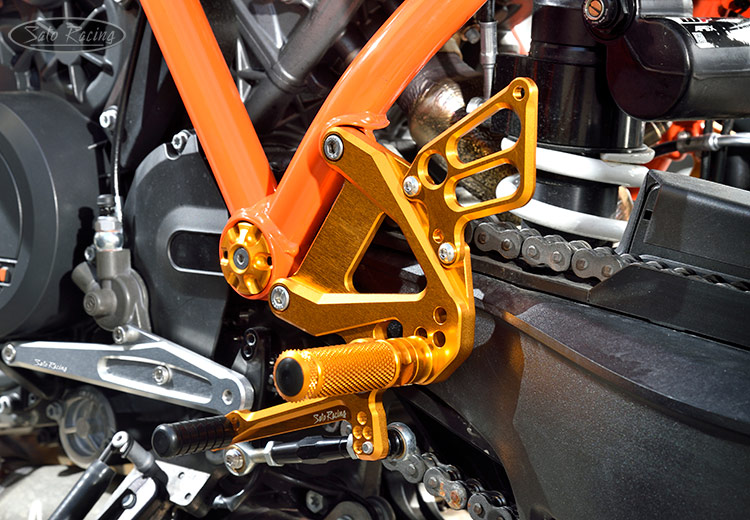

![SATO RACING KTM 1290 Super Duke R 2020 Rear Sets [L]-side](pics/KTM-129020RS-GD_fitL2_750x520.jpg "SATO RACING KTM 1290 Super Duke R 2020 Rear Sets [L]-side")
| BLACK | KTM-129020RS-BK $585 |
 |
| GOLD | KTM-129020RS-GD $585 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
KTM 1290 Super Duke R ('20- )

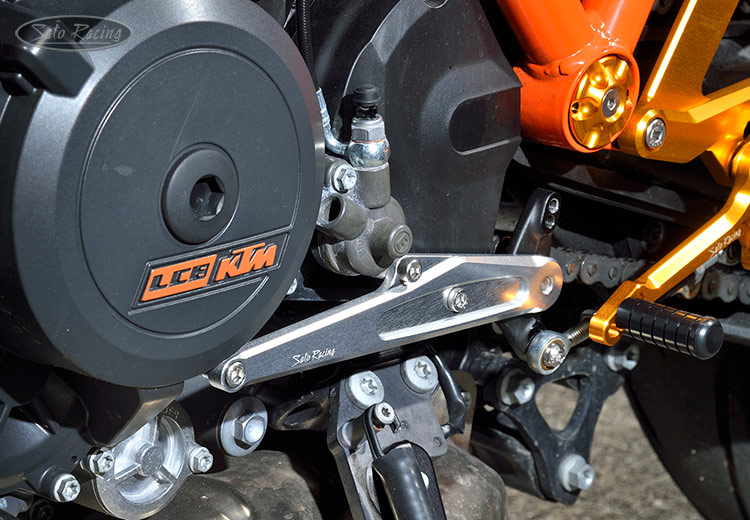

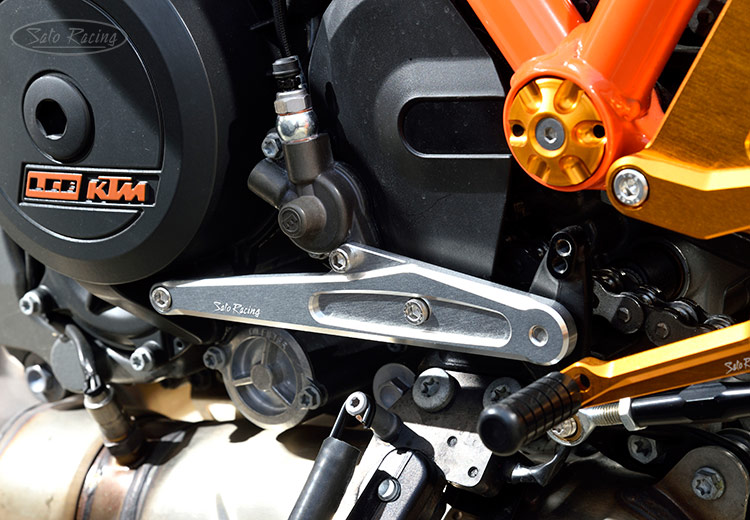

SHIFT SPINDLE HOLDER
| SATO RACING Shift Spindle Holder for 2020+ Super Duke R helps reduce excessive lateral movement of the shift spindle during shifting, adding strength and rigidity to the shift linkage for smoother operation and extra durability in heavy-duty use. Made of high strength anodized billet aluminum with miniature stainless bearings and stainless steel bolts. |
| SILVER | KTM-129020RS-SHDR $115 |
|
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
