DUCATI  Monster 1100 EVO  (2011-13)
REAR SETS

SATO RACING Rear Sets for 2011-13 Ducati Monster 1100 EVO features a track-engineered design, with components precision machined out of high strength billet aluminum with your choice Black, Silver or vivid Gold anodized finish. Modular adjustable design lets you choose from 11 foot peg positions, ranging from near-stock equivalent to up to 40mm higher than stock. You can easily set it up for stock shift pattern or GP-style reverse shift pattern. ABS compatible.

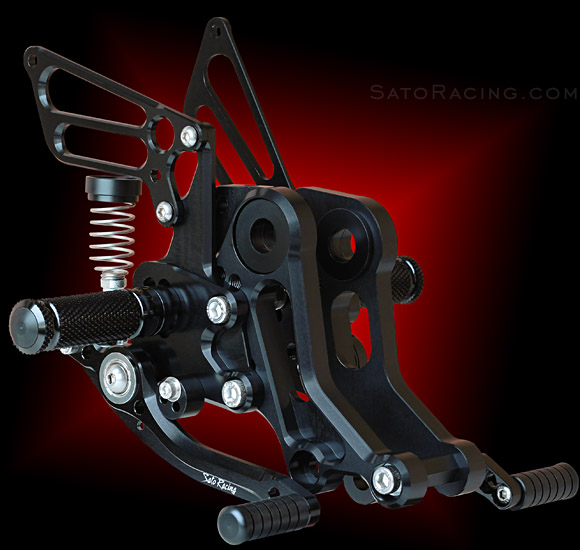

SATO RACING Ducati Monster 1100 EVO Rear Sets [R]-side

SATO RACING Ducati Monster 1100 EVO Rear Sets [R]-side

POSITIONS

1 10mm Forward 5mm Up
2 10mm Forward 15mm Up
3 10mm Forward 25mm Up
4 10mm Forward 34mm Up
5 0mm 15mm Up
6 0mm 20mm Up
7 0mm 25mm Up
8 0mm 30mm Up
9 0mm 40mm Up
10 10mm Back 30mm Up
11 10mm Back 40mm Up

note: all measurements are in relation to stock position (0 mm).

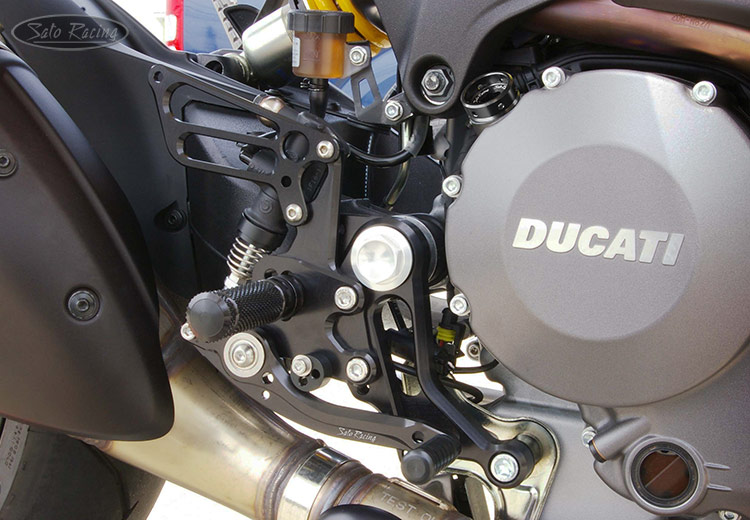

SATO RACING Ducati Monster 1100 EVO Rear Sets [R]-side

The shift and brake pedals utilize double miniature stainless bearings for smooth, precise lever action.   These Rear Sets are designed to integrate with the OEM (Brembo) master cylinder. Kit includes a pressure-actuated brake light switch that attaches to the master cylinder.

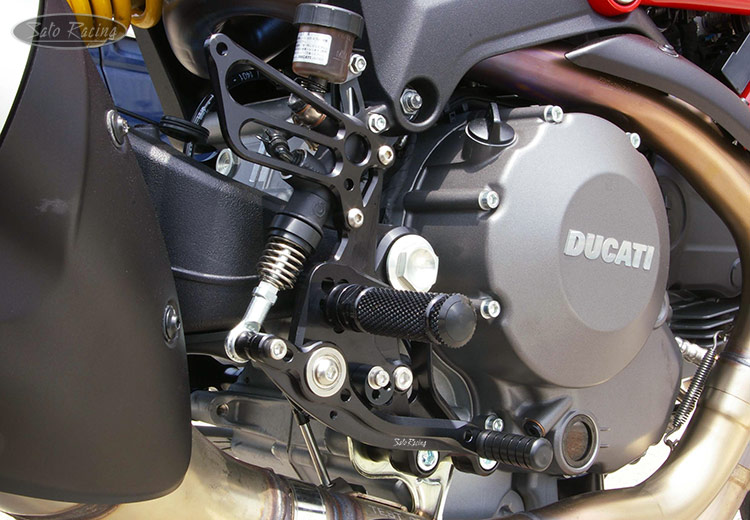

SATO RACING Ducati Monster 1100 EVO Rear Sets [R]-side

The foot Pegs feature a finely knurled pattern with excellent grip characteristics, along with a comfortable, intuitive feel. The Foot Pegs have protective end caps made of abrasion-resistant black Delrin.   The standard Pedal Tips are also made of Delrin. Additional Pedal Tip styles, such aluminum Pedal Tips with fluted rubber grips, are available separately.

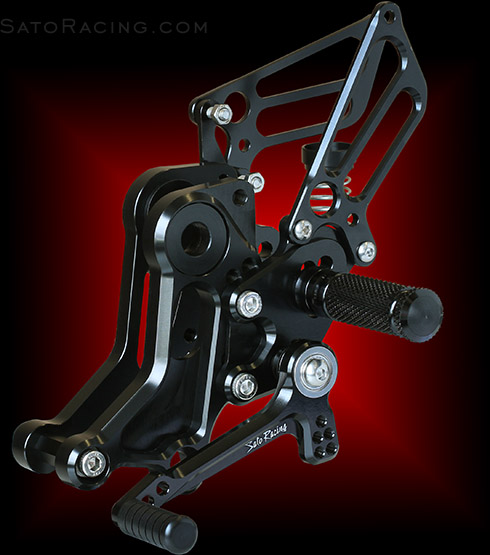

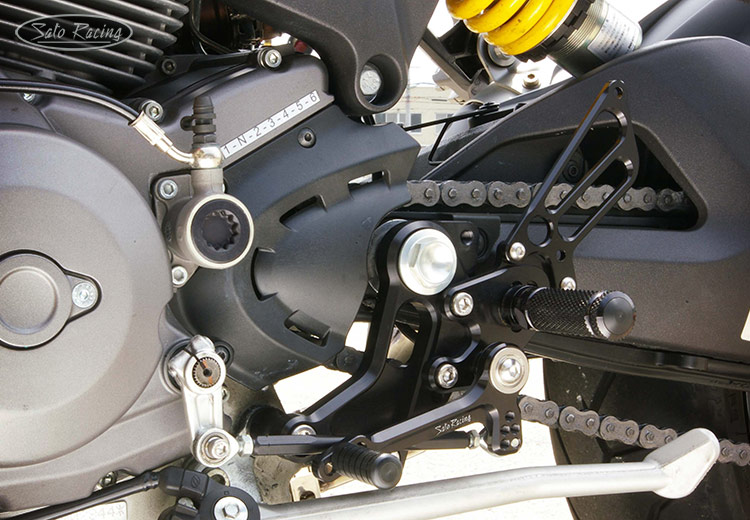

Sato Racing Ducati Monster 1100 EVO Rear Sets [L]-side

Stock shift pattern shown above. You can set up these Rear Sets for reverse shift pattern by flipping the stock shift arm to angle upward. We also make a matching billet aluminum Shift Arm that can be used with these Rear Sets instead of the stock shift arm, providing a wider adjustment range and a shorter throw compared to stock.  Details

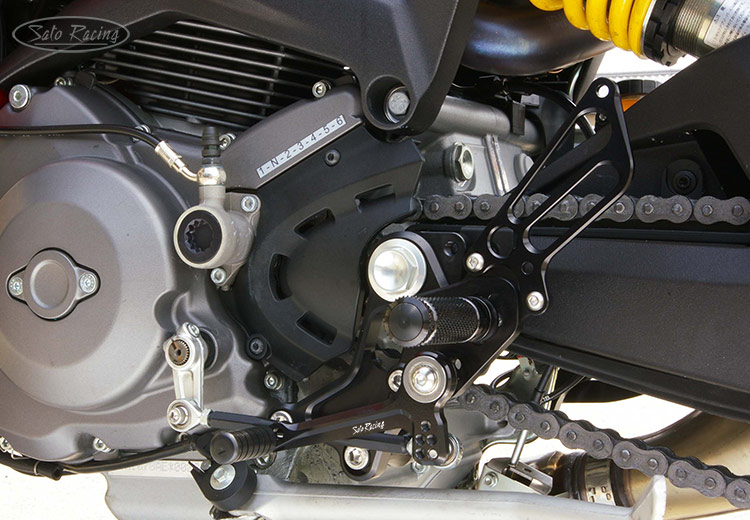

Sato Racing Ducati Monster 1100 EVO Rear Sets [L]-side

An adjustable Step Plate design, along with multiple mount holes for the Foot Peg, provide 11 unique peg positions, ensuring that you can find the ideal position for your riding style.

Sato Racing Ducati Monster 1100 EVO Rear Sets [L]-side

Choice of Black, Silver (natural metal) or Gold anodized finish.
(Note: The photo above shows another Monster model. The design of the 1100evo Rear Sets is similar.)


------------------------------------------------------------------------------------------

Rough Crafts Scrambler Ducati A few years back, Winston Yeh of Rough Crafts built a custom Ducati Scrambler that incorporated our Monster 1100 evo Rear Sets, and it turned out pretty great.
Check it out: Rough Crafts Scrambler

(Note: if attempting to do a similar build on a Scrambler, some additional mods might be necessary to get our Monster 1100 evo Rear Sets to work on it).

------------------------------------------------------------------------------------------



BLACK D-M1100ERS-BK
$715
SILVER D-M1100ERS-SV
$715
GOLD D-M1100ERS-GD
$715


Click Here for important info about Sato color-anodized parts.




_____________________________________________________________________________

OPTIONS

_____________________________________________________________________________



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



------------------------------------------------------------------------------------------

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List

Some replacement parts for these Rear Sets
can be purchased in our online store:

peg FOOT PEG
(BK/ SV/ GD)
PEG
$42
PEG COLLAR 12
(BK/ SV/ GD)
PEGCLR-12
$15
HBT-M840 HEX HEAD M8-40mm
(Peg bolt)
HBT-M840
$2.00
ST-001D18 PEDAL TIP (DELRIN) ST-001D18
$15
BBT-M620 BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50
HG-6L [L] HEEL GUARD
(BK/ SV/ GD) (L-side #1)
HG-6L
$60
SRD-130 SHIFT ROD 130
(BK/ SV/ GD) (L-side #8)
SRD-130
$39
PEGBGCLR-10 BEARING COLLAR 10s
[BLACK] (L-side #15)
PEGBGCLR-10SB
$10.00
ROD END COLLAR 3
(L-side #20)
RDED-CLR3
$6.00
SBT-M620 SOCKET HEAD M6-20mm
(L-side #26)
SBT-M620
$1.50
SBT-M625 SOCKET HEAD M6-25mm
(L-side #27)
SBT-M625
$1.50
SBT-M816 SOCKET HEAD M8-16mm
(L-side #29)
SBT-M816
$2.00
SBT-M1065 SOCKET HEAD M10-65mm
(P-1.5)
(L-side #31)
SBT-M1065-15
6.00
BBT-M610 BUTTON HEAD M6-10mm
(L-side #32)
BBT-M610
$1.50
BBT-M835 BUTTON HEAD M8-35mm
(L-side #36)
BBT-M835
$2.00
SWS-8 SPLIT WASHER M8
(#43 for peg bolt)
SWS-8
$1.20
BPD-STOPPER PEDAL STOPPER (DELRIN)
(R-side #14)
BPD-STOPPER
$15.00
RDED-CLR15 ROD END COLLAR 15
(R-side #21)
RDED-CLR15
$8.00
SBT-M520 SOCKET HEAD M5-20mm
(R-side #25)
SBT-M520
$2.00
SBT-M640 SOCKET HEAD M6-40mm
(R-side #28)
SBT-M640
$2.00
BBT-M625 BUTTON HEAD M6-25mm
(R-side #34)
BBT-M625
$1.50
BBT-M825 BUTTON HEAD M8-25mm
(R-side #35)
BBT-M825
$1.50
NUT-6 NUT M6   (R-side #38) NUT-6
$1.50
LNT-6 LOCK NUT M6
(R-side #39)
LNT-6
$1.50
WS-5 WASHER M5
(R-side #40)
WS-5
$1.00
PWS-8 PEG WASHER M8
(R-side #41)
PWS-8
$1.00
RDED-F6-8 FEMALE ROD END 6-M8
(R-side #44)
RDED-F6-8
$25
RS-RSP RETURN SPRING 40
(R-side #46)
RS-RSP
$8.00
RS-RSCLR RETURN SPRING COLLAR
(R-side #47)
RS-RSCLR
$12.00
BSW-1 BRAKE LIGHT SWITCH
(P-1.0)
(R-side #48)
BSW-1
$25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)


------------------------------------------------------------------------------------------
