HUSQVARNA VITPILEN / SVARTPILEN 401 ('18- )
REAR SETS
| SATO RACING
Rear Sets for 2018+ Husqvarna Vitpilen 401 and Svartpilen 401 features a track-engineered and race-proven design, with parts precision CNC-machined out of high strength anodized billet aluminum, with stainless steel bolts and hardware. Modular mounting plate design lets you select from multiple foot peg positions in a wide adjustment range, so you can find the ideal position for your riding style. Choice of all-Black anodized finish, or a vivid anodized Gold finish with contrasting Black anodozed base plates and exhaust hanger. Rear Sets part# HV-401RS fits Vitpilen 401 and Svartpilen 401, giving you a choice of 8 unique positions that bring your feet Forward and Up compared to stock. For the Svartpilen, we also make a Lowering -style Rear Sets (part# HV-401DRS), which has 2 peg positions 120mm-132.5mm forward and 40mm lower compared to stock. NOTE: Compatibility with 2020+ models equipped with the OEM quick shifter has not yet been verified. |
The following install photos show the standard Rear Sets, part# HV-401RS-BK.

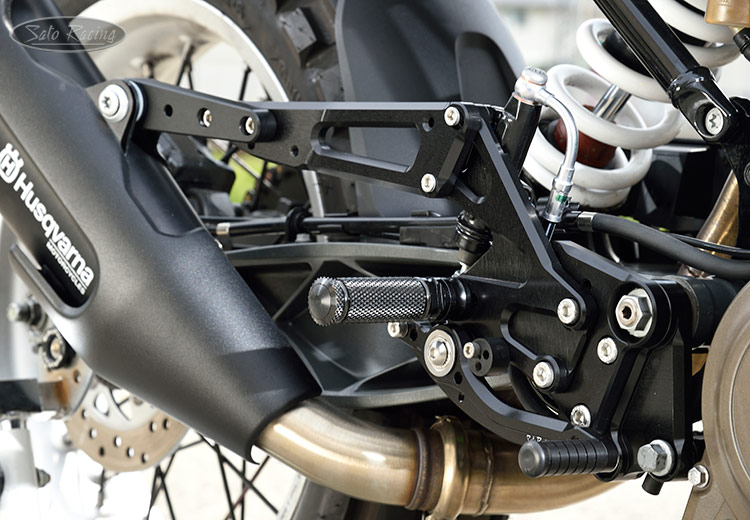

![SATO RACING Rear Sets for Husqvarna Vitpilen 401 / Svartpilen 401 [R]-side](pics/rearsets_SVARTPILEN401_fitR1.jpg "SATO RACING Rear Sets for Husqvarna Vitpilen 401 / Svartpilen 401 [R]-side")
The shift and brake pedals utilize miniature double stainless
bearings for smooth, precise lever actuation with a solid feel.

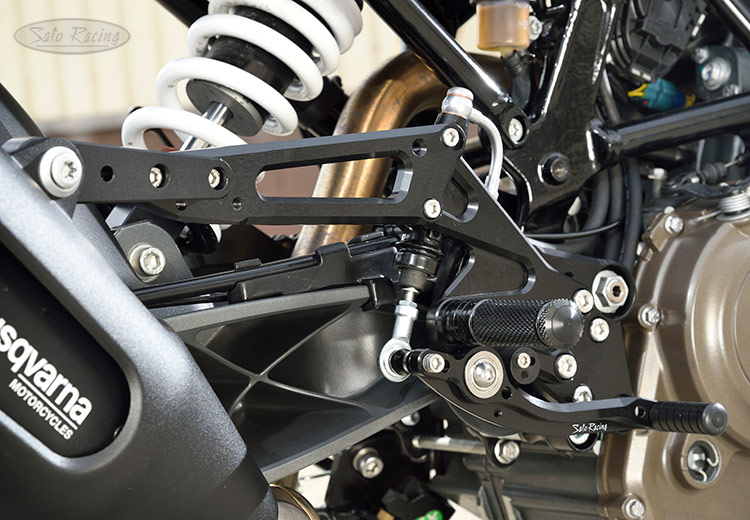

![SATO RACING Rear Sets for Husqvarna Vitpilen 401 / Svartpilen 401 [R]-side](pics/rearsets_SVARTPILEN401_fitR2.jpg "SATO RACING Rear Sets for Husqvarna Vitpilen 401 / Svartpilen 401 [R]-side")
The positions of the Step Plate and Foot Peg can be independently adjusted.
The exhaust hanger bracket is made of billet aluminum and is also adjustable.
NOTE: This kit eliminates the stock passenger pegs.
POSITIONS (part# HV-401RS)
| 1 | 62.5mm Forward | 18.5mm Up |
| 2 | 50mm Forward | 18.5mm Up |
| 3 | 62.5mm Forward | 31mm Up |
| 4 | 50mm Forward | 31mm Up |
| 5 | 37.5mm Forward | 31mm Up |
| 6 | 25mm Forward | 31mm Up |
| 7 | 37.5mm Forward | 43.5mm Up |
| 8 | 25mm Forward | 43.5mm Up |
note: all measurements are in relation to stock position (0 mm).

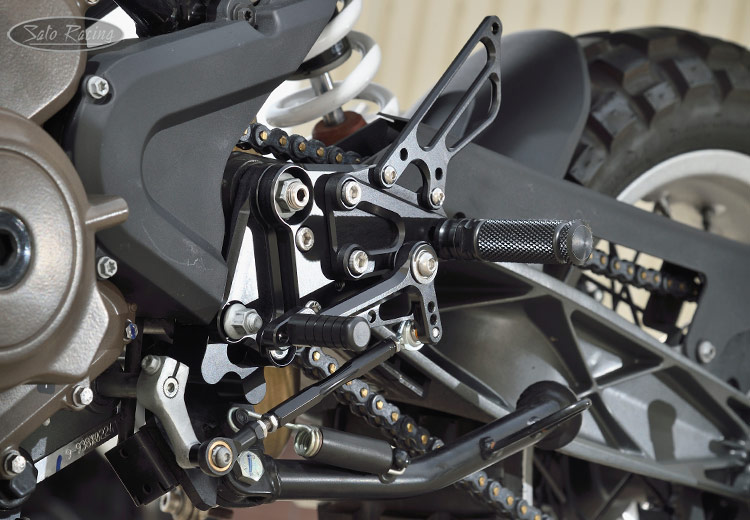

![SATO RACING Rear Sets for Husqvarna Vitpilen 401 / Svartpilen 401 [L]-side](pics/rearsets_SVARTPILEN401_fitL1.jpg "SATO RACING Rear Sets for Husqvarna Vitpilen 401 / Svartpilen 401 [L]-side")
These Rear Sets provide a stock shift pattern. (Reverse / GP shift pattern is not an option).

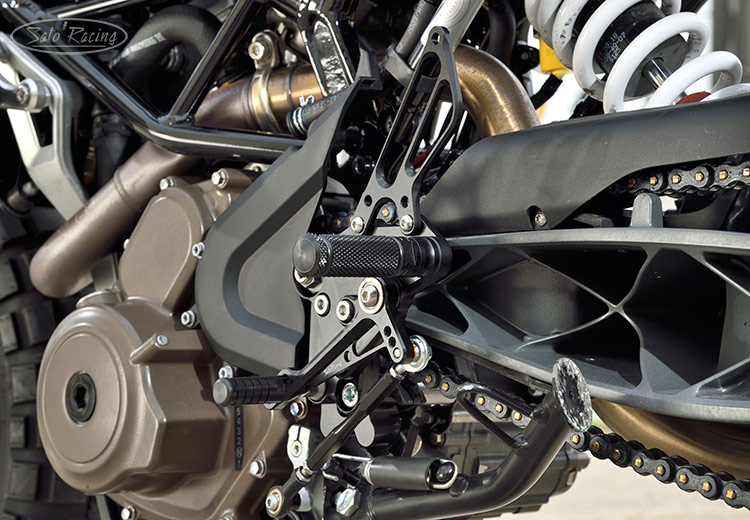

![SATO RACING Rear Sets for Husqvarna Vitpilen 401 / Svartpilen 401 [L]-side](pics/rearsets_SVARTPILEN401_fitL2.jpg "SATO RACING Rear Sets for Husqvarna Vitpilen 401 / Svartpilen 401 [L]-side")
The Foot Pegs are our classic fixed-style (non-folding) pegs, and have a finely
knurled pattern for optimal grip, along with a comfortable, intuitive feel.
The standard Pedal Tips are made of tough Delrin. Other styles of Pedal Tips,
including aluminum Pedal Tips with fluted rubber grips, are an available option.
Rear Sets (standard version)
| BLACK | HV-401RS-BK $815 |
 |
| GOLD* w/ BLACK Base Plates/ EX Hanger |
HV-401RS-GD $815 |
|
Lowering-type REAR SETS (for Svartpilen 401)
This alternate version of our Husqvarna 401 Rear Sets has a different base plate design, for
a lower and more forward foot position compared to stock. (Not compatible with Vitpilen).

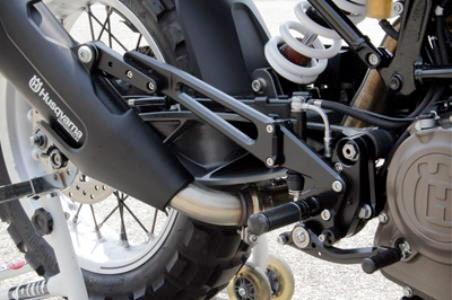

![SATO RACING Lowering Rear Sets for Husqvarna Svartpilen 401 [R]-side](pics/HV-401DRS_fitR.jpg "SATO RACING Lowering Rear Sets for Husqvarna Svartpilen 401 [R]-side")

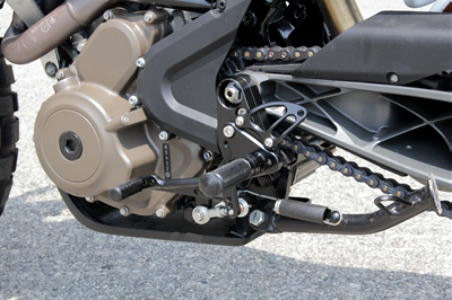

![SATO RACING Lowering Rear Sets for Husqvarna Svartpilen 401 [L]-side](pics/HV-401DRS_fitL.jpg "SATO RACING Lowering Rear Sets for Husqvarna Svartpilen 401 [L]-side")

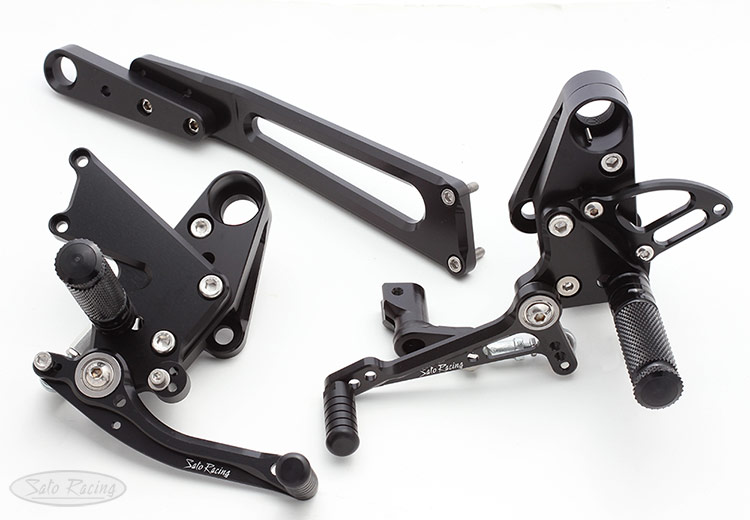

Lowering Rear Sets kit in Black for Svartpilen 401.
POSITIONS (part# HV-401DRS)
| 1 | 132.5mm Forward (5.2" Forward) |
40mm Down (1.6" Down) |
| 2 | 120mm Forward (4.7" Forward) |
40mm Down (1.6" Down) |
note: all measurements are in relation to stock position (0 mm).
| BLACK | HV-401DRS-BK $815 |
|
| GOLD* w/ BLACK Base Plates/ EX Hanger |
HV-401DRS-GD $815 |
|
* Click Here for important info about Sato GOLD-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD * | RCPEG-GD $48 |
|
* Click Here for important info about Sato GOLD-anodized parts.
