KAWASAKI Z1000 ('10-'13 non-ABS)
REAR SETS

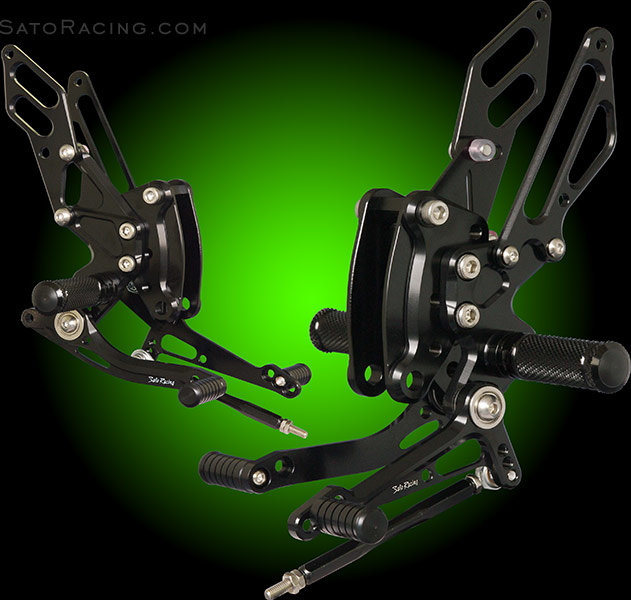

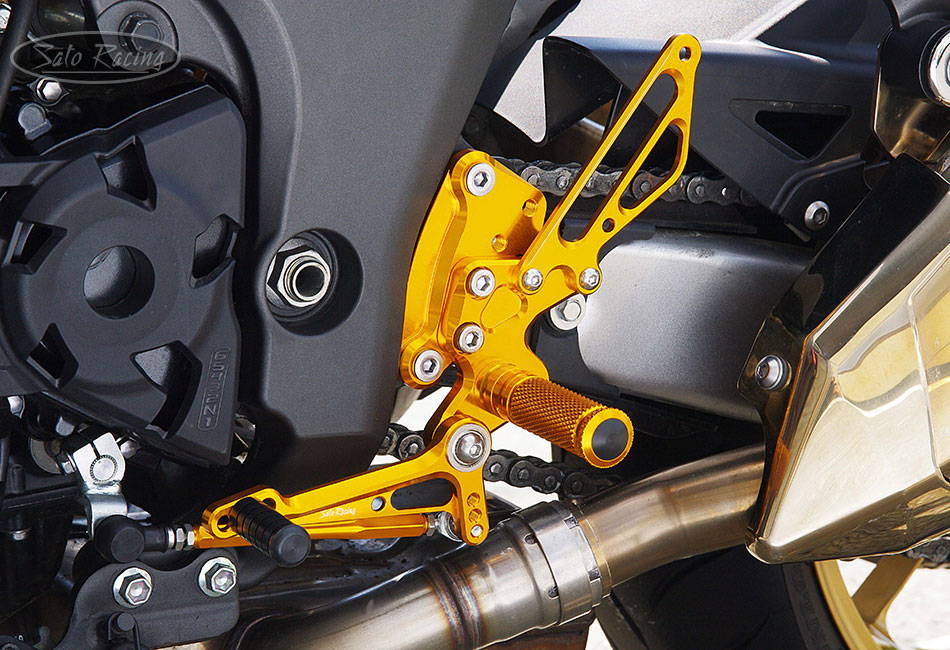

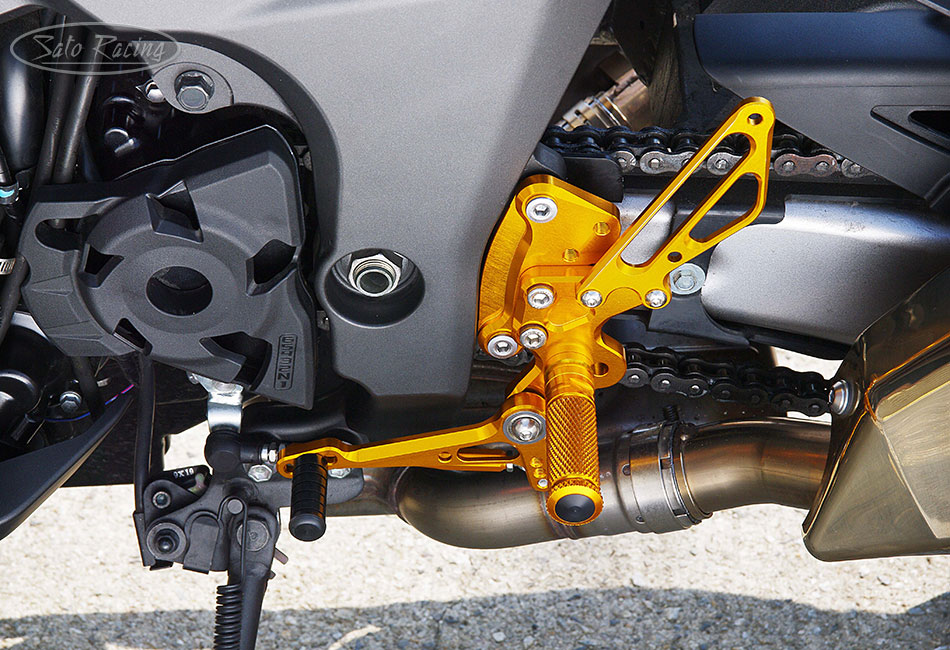

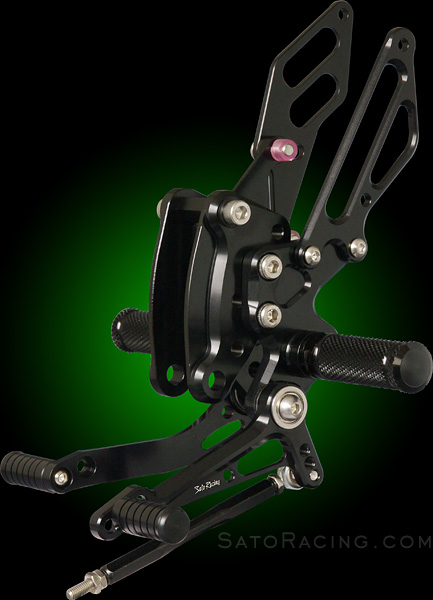

| SATO RACING Rear Sets for 2010 and up Z1000 models with standard (non-ABS) brakes feature components precision CNC-machined out of high strength billet aluminum, with stainless steel bolts and hardware. Modular design lets you select from 6 adjustable positions that bring your feet higher up compared to the the stock peg location. Choice of Black, Silver (clear metal), or vivid Gold finish. The standard Rear Sets are stock shift pattern only. For riders who prefer to use a reverse shifting pattern, we also make a dedicated Reverse Shift version of these Rear Sets. |
| 1 | 10mm Forward | 10mm Up |
| 2 | 0mm | 10mm Up |
| 3 | 5mm Forward | 20mm Up |
| 4 | 5mm Back | 20mm Up |
| 5 | 0mm | 30mm Up |
| 6 | 10mm Back | 30mm Up |
note: all measurements are in relation to stock position (0 mm).
The shift and brake pedals have double stainless bearings for super smooth shift action. Knurled
footpegs provide optimal grip even in wet conditions, along with a comfortable, intuitive feel.

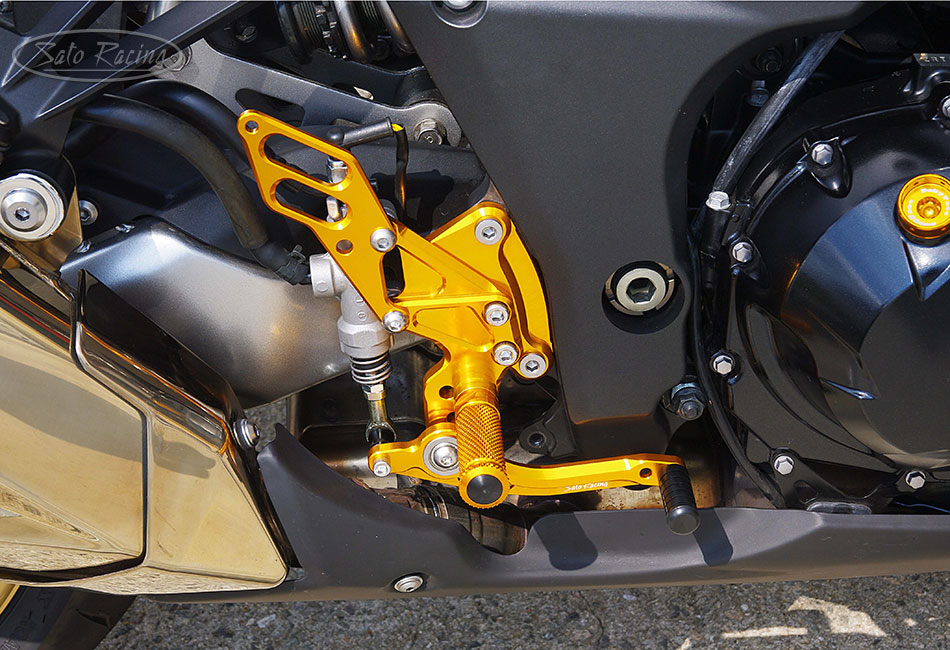

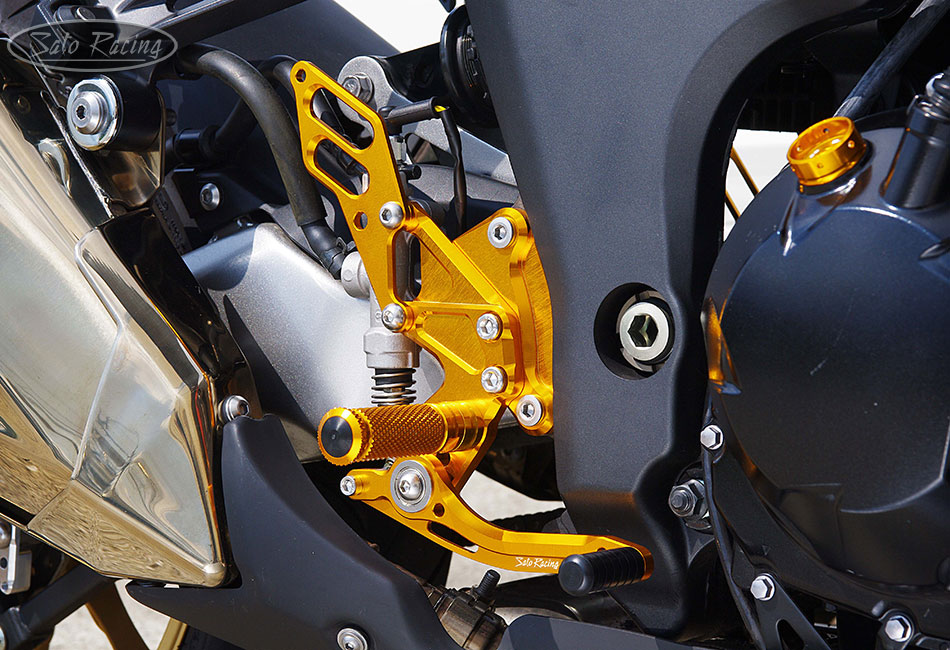

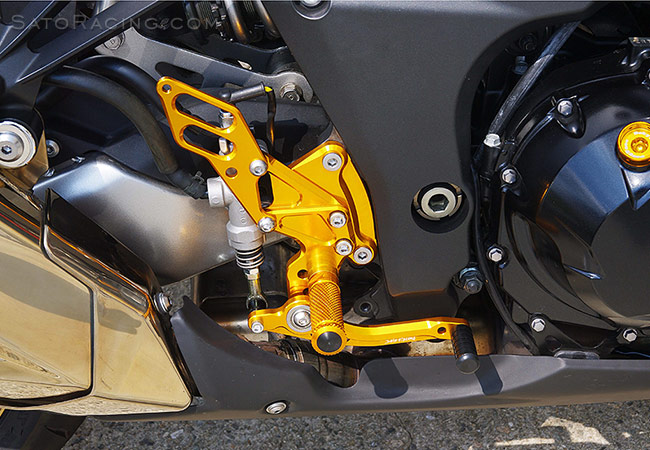

A hydraulic brake light switch (shown attached to the master cylinder) is included.
(Shown with optional Brake Return Spring )

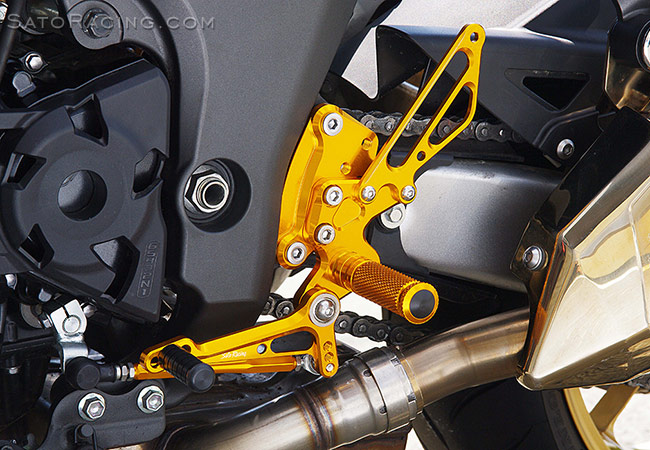

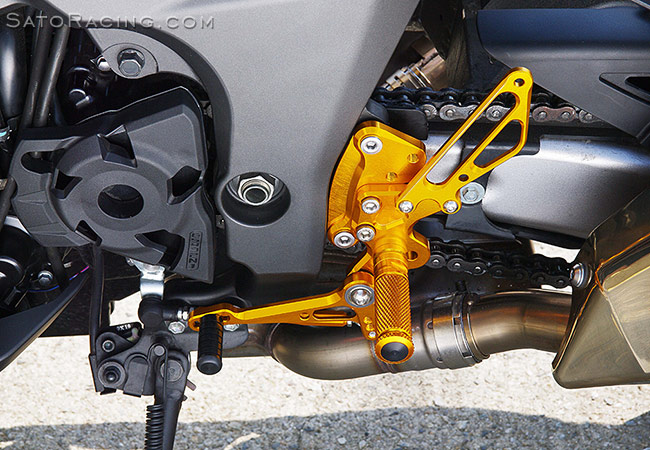

The shift stroke can be adjusted by changing the mounting point of the shift rod on
the shift pedal - The hole farthest from the center pivot provides the shortest stroke.
|

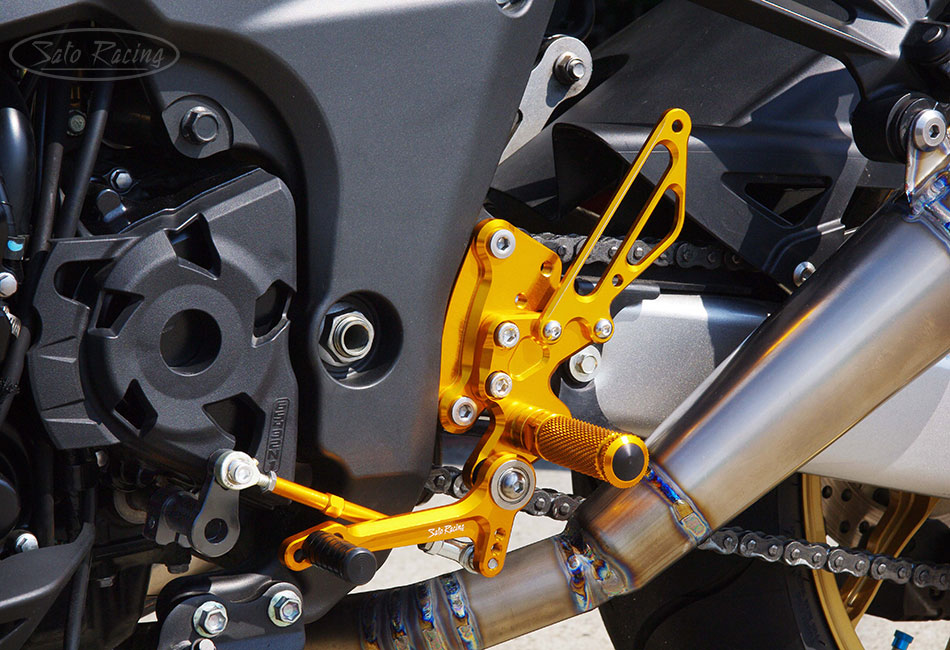

Modular design lets you adjust the mount postion of the Step Plate and the Foot Peg to your liking.
Pedal Tip position is also adjustable. The standard Pedal Tips are made of tough black Delrin. Additional Pedal Tip styles, such as aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details |
Rear Sets (standard version)
| BLACK | K-Z1010RS-BK $550 |
 |
| SILVER | K-Z1010RS-SV $550 |
|
| GOLD | K-Z1010RS-GD $550 |
SOLD OUT |
(BRAKE LIGHT SWITCH IS INCLUDED WITH KIT)
* Click Here for important info about Sato color-anodized parts.
KAWASAKI Z1000
('10- )
REVERSE SHIFT REAR SETS

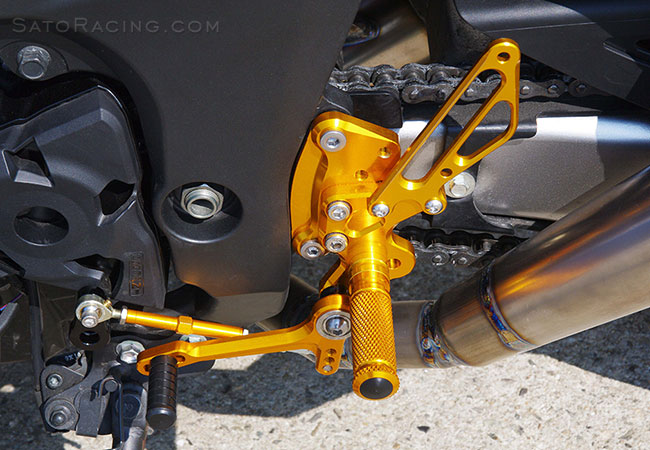

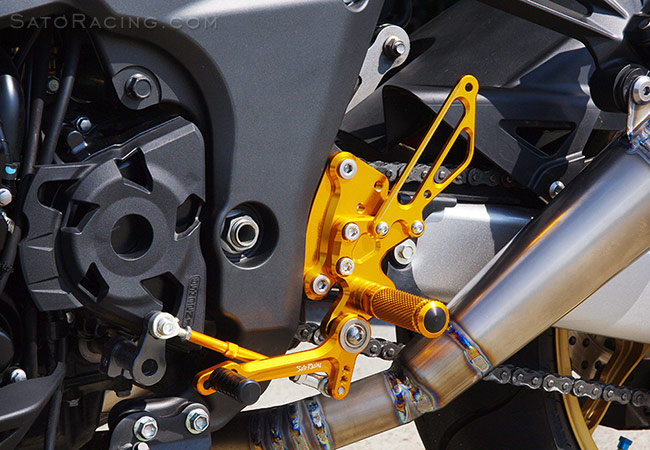

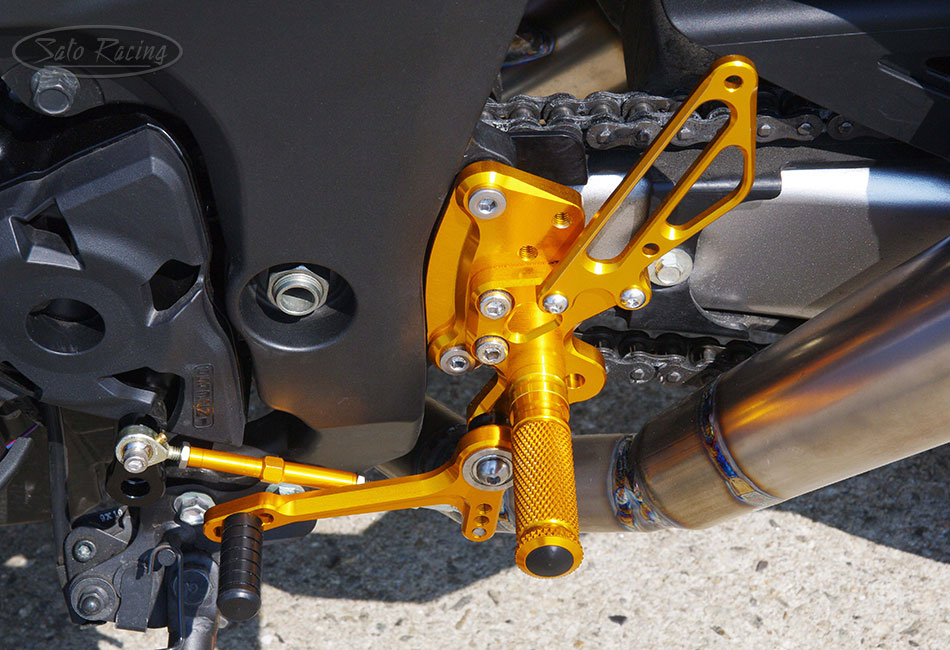

| For riders who prefer reverse (GP style) shift pattern, we offer a Reverse Shift version of these Rear Sets that includes a special change arm and a different shift pedal assembly that is designed to provide a reverse shift pattern. |
Reverse Shift Rear Sets
| BLACK | K-Z1010RSR-BK $595 |
|
| SILVER | K-Z1010RSR-SV $595 |
|
| GOLD | K-Z1010RSR-GD $550 |
SOLD OUT |
(BRAKE LIGHT SWITCH IS INCLUDED WITH KIT)
Click Here for important info about Sato color-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
* Click Here for important info about Sato GOLD-anodized parts.

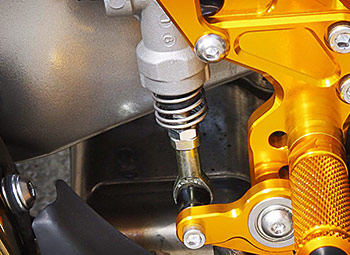

BRAKE RETURN SPRING
| SATO RACING Brake Return Spring quickens the pedal return and may make the pedal feel more responsive compared to no spring. (For use with specified SATO RACING Rear Sets). |
| RS-RSP $8.00 |
|
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list included
with your Sato Racing Rear Sets, or view the PDF: Z1000 | Z1000 Reverse Shift
Some replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to the Stock Shift version unless otherwise specified)
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#8) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) |
ST-001D18 $16.50 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side #4) |
SPD-14 $75 |
|
 |
ROD END COLLAR 6 (L-side #9) |
RDED-CLR6 $6.00 |
|
 |
BASE PLATE COLLAR 4 (L-side #10) |
BPCLR-4 $8.00 |
|
 |
REVERSE STUD M6 (L-side #12) |
STUD-M6L $4.20 |
|
 |
SOCKET HEAD M6-25mm (L-side #13) |
SBT-M625 $1.50 |
|
 |
SOCKET HEAD M8-15mm (L-side #14 / R-side #12) |
SBT-M815 $1.50 |
|
 |
BUTTON HEAD M6-10mm (L-side #15) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M8-25mm (L-side #17) |
BBT-M825 $1.50 |
|
 |
SHIFT ROD 110 (BK/ SV/ GD) (L-side #18) |
SRD-110 $39 |
|
 |
MALE ROD END M6 (L-side #19) |
RDED-M6 $12.50 |
|
 |
PEG WASHER - M8 (L-side #20) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 (L-side #21 / R-side #17) |
SWS-8 $1.20 |
|
 |
JAM NUT M6 (L-side #22) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (L-side #23) |
JNT-6L $2.50 |
|
 |
BRAKE PEDAL (R-side #4) |
BPD-3 $80 |
|
 |
BRAKE ROD COLLAR 19 (R-side, #9) |
RDED-CLR19 $8.00 |
|
 |
SOCKET HEAD M6-45mm (R-side #10) |
SBT-M645 $2.00 |
|
 |
COLLAR 3-8 (R-side #11) |
CLR3-8 $6.00 |
|
 |
BUTTON HEAD M8-30mm (R-side #15) |
BBT-M830 $2.00 |
|
 |
FEMALE ROD END 6-M8 (R-side #19) |
RDED-F6-8 $25 |
|
 |
ROD END COLLAR 3 (K-Z1010RSR, L-side #11) |
RDED-CLR3 $6.00 |
|
|
SOCKET HEAD M6-20mm (K-Z1010RSR, L-side #16) |
SBT-M620 $1.50 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
