SUZUKI GSX-R600/ GSX-R750 ('06-'10)
REAR SETS

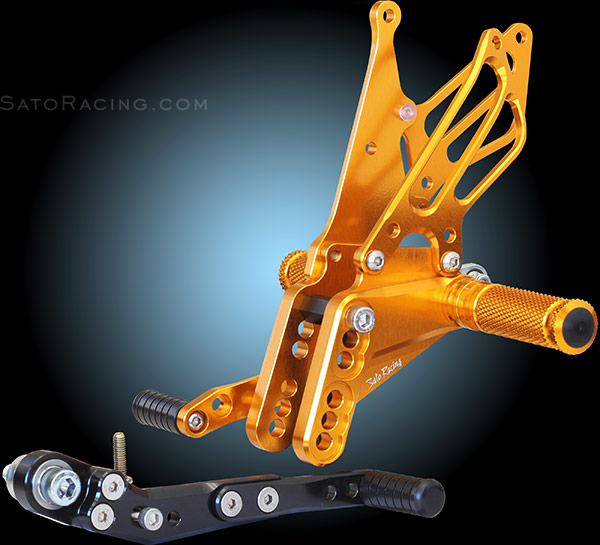

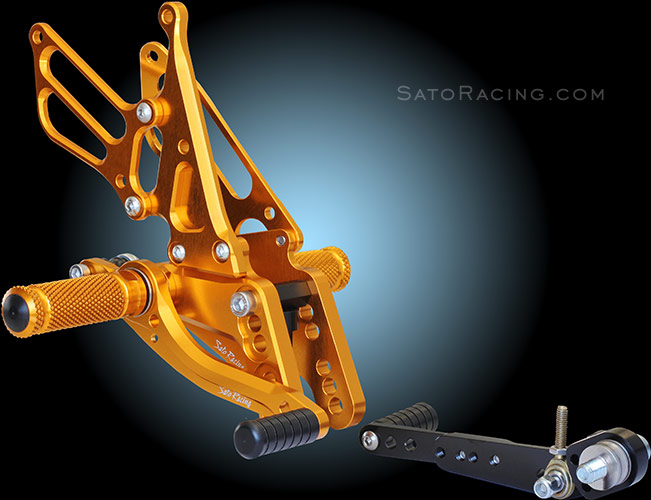

| SATO RACING Rear Sets for 2006-2010 Suzuki GSX-R600 and GSX-R750 are precision CNC-machined from high strength billet aluminum and anodized in your choice of all Black, or vivid Gold anodized finish with a Black anodized shifter. Adjustable step plate lets you choose from 3 foot peg positions, which when combined with the 3 positions provided by the stock mount, effectively triples the number of possible positions to 9. You can also easily switch these Rear Sets from stock shift pattern to a reverse (GP-style) shift pattern. |
(Shift pedal assembly comes in black only.)
| 1 | 0mm Back | 14mm Up |
| 2 | 2mm Back | 24mm Up |
| 3 | 4mm Back | 34mm Up |
Our Rear Sets triples the number of possible mounting positions to
9,
compared to 3 positions provided by the stock mount.

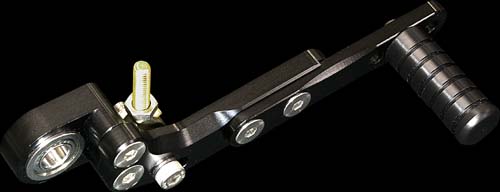

| The shifter and brake pedal use miniature double stainless bearings for smooth, precise lever action. A pressure-type brake light switch is included with the kit. |
| Finely knurled
Foot Pegs provide optinal grip, along with a comfortable, inuitive feel. The end caps of the Foot Pegs and the Pedal Tips (toe pegs) are made of tough, abrasion-resistant black Delrin. You can set it up for stock shift pattern or reverse shift pattern by flipping the change arm the opposite direction. (Use with the stock change arm and shift rod) |
| BLACK | S-GSX606RS-BK $550 |
 |
| GOLD* w/ BLACK shift assembly |
S-GSX606RS-GD $550 |
|
(Brake light switch is included in kit.)
* Click Here for important info about Sato GOLD-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [SILVER] | PEG-SV $42 |
|
 |
FOOT PEG [GOLD] | PEG-GD $42 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
STUD BOLT M8-50mm (L-side #1, Peg bolt) |
STBT-50 $4.50 |
|
 |
BUTTON HEAD M6-10mm (#2) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-25mm (L-side #3) |
BBT-M625 $1.50 |
|
 |
FLAT HEAD M6-10mm (L-side #4) |
FBT-M610 $1.50 |
|
 |
SOCKET HEAD M6-30mm (L-side #5) |
SBT-M630 $1.50 |
|
 |
FLAT HEAD M6-15mm (L-side #6) |
FBT-M615 $1.50 |
|
 |
SOCKET HEAD M10-40mm (P-1.25) (L-side #7) |
SBT-M1040 $1.50 |
|
 |
PEG COLLAR 12 [BLACK] (L-side #9) |
PEGCLR-12B $15 |
|
 |
PEG COLLAR 12 [SILVER] (L-side #9) |
PEGCLR-12S $15 |
|
 |
PEG COLLAR 12 [GOLD] (L-side #9) |
PEGCLR-12G $15 |
|
 |
SHIFT PEDAL SPD8 [BLACK] (L-side #15) |
SPD-8B $30.00 |
|
 |
M6 MALE REVERSE ROD END (L-side #16) |
RDED-M6L $12.50 |
|
 |
LOCK NUT M6 (#17) |
LNT-6 $1.50 |
|
 |
REVERSE JAM NUT M6 (L-side #18) |
JNT-6L $2.50 |
|
 |
FLANGE NUT M8 (L-side #20 / R-side #18) |
FNT-8 $1.50 |
|
 |
ROD END COLLAR 3 (L-side #21) |
RDED-CLR3 $6.00 |
|
 |
STUD BOLT SHORT (M8x55) (R-side #1, Peg bolt) |
STBT-S $4.50 |
|
|
BUTTON HEAD M6-20mm (R-side #4 / #5) |
BBT-M620 $1.50 |
|
 |
PEG BEARING COLLAR 5 [BLACK] (R-side #9) |
PEGBGCLR-5B $15.00 |
|
 |
PEG BEARING COLLAR 5 [SILVER] (R-side #9) |
PEGBGCLR-5SV $15.00 |
|
 |
PEG BEARING COLLAR 5 [GOLD] (R-side #9) |
PEGBGCLR-5G $15.00 |
|
 |
PEG WASHER - M8 (R-side #13) |
PWS-8 $1.00 |
|
 |
SOCKET HEAD M6-40mm (R-side #14) |
SBT-M640 $2.00 |
|
 |
FEMALE ROD END 6-M8 (R-side #16) |
RDED-F6-8 $25 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
More Sato Racing items for 06-10 GSX-R600/750
|
