MV AGUSTA F4 ('10-'14)
REAR SETS

SATO RACING Rear Sets for 2010-2014 MV Agusta F4 features a track-tested design, with components precision machined out of lightweight, high strength anodized billet aluminum, with stainless steel hardware. Modular step plate design lets you select from a wide range of adjustable positions so you can find the ideal position for your riding style.

The standard Rear Sets provide a stock shifting pattern. For riders who prefer a reverse / race shift pattern, we also make dedicated Reverse Shift Rear Sets for the F4. Choice of Black, Silver or Gold anodized finish

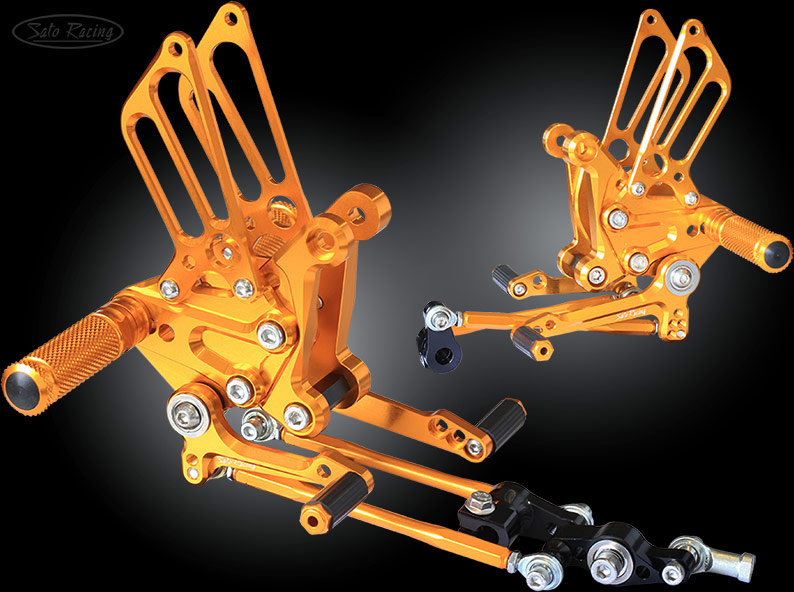

SATO RACING MV Agusta F4 ('10- ) Rear Sets shown with optional aluminum Pedal Tips w/ Rubber grips
F4 Rear Sets (Standard version) shown with optional matching
aluminum Pedal Tips w/ Rubber grips (part#ST-001RG). Details

POSITIONS

1	20mm Forward	10mm Down
2	10nmm Forward	10mm Down
3	0mm	10mm Down
4	10mm Forward	0mm
5	0mm	0mm
6	10mm Back	0mm
7	10mm Forward	10mm Up
8	0mm	10mm Up
9	10mm Back	10mm Up

note: all measurements are in relation to stock position (0 mm).

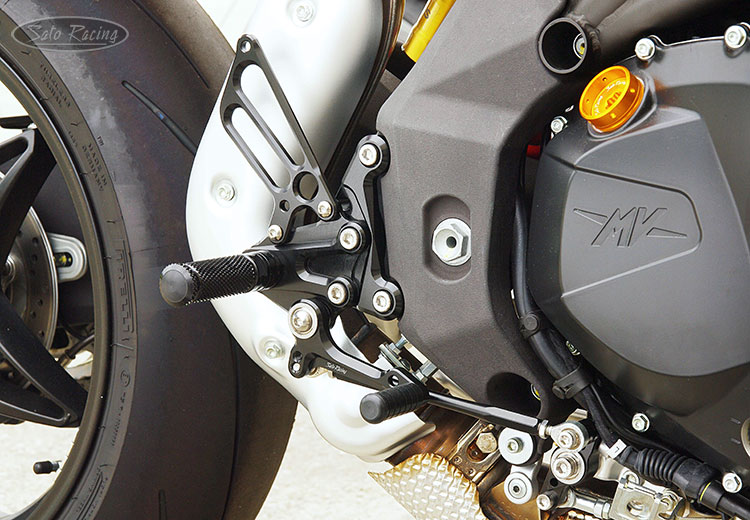

SATO RACING MV Agusta F4 ('10- ) Rear Sets [R]-side
The multi-link brake assembly uses double stainless bearings at both ends for smooth, precise actuation.
The integrated brake pedal pivots from the Step Plate for excellent braking feel and control.

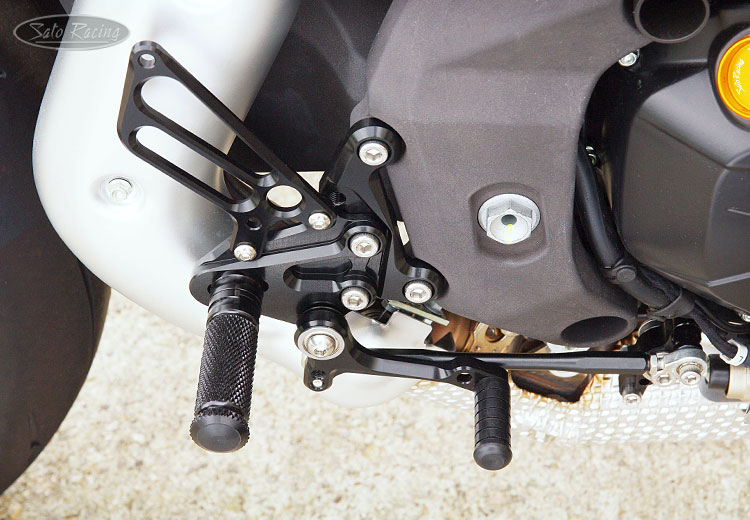

SATO RACING MV Agusta F4 ('10-'14) Rear Sets [R]-side
The Foot Pegs have a finely knurled pattern for a comfortable feel along with optimal grip.
The Pedal Tips (toe pegs) are made of tough Delrin. We also offer other Pedal Tip options,
including aluminum Pedal Tips with fluted rubber grips. Click Here for details.

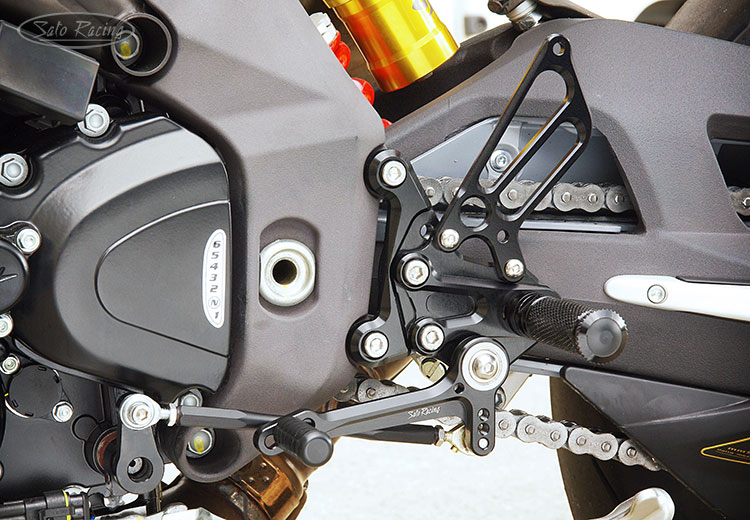

SATO RACING MV Agusta F4 ('10-'14) Rear Sets [L]-side
You can fine-tune the shift stroke by relocating the shift rod attachment point on the pedal.
(The standard version Rear Sets are stock shift pattern only)

NOTE: These Rear Sets are not compatible with the shifter switch on the F4 RR or other models
with the OEM quick shifter. It can be installed with an aftermarket inline-type quick shifter.

We are clearing out the Silver sets, so we have lowered our prices on those. If you have always wanted to try out these excellent Rear Sets on your F4, now is a great time!

BLACK	MV-F410RS-BK $760
SILVER	MV-F410RS-SV $660
GOLD	MV-F410RS-GD $760

MV AGUSTA F4 ('10-'14)
REVERSE SHIFT REAR SETS
These Rear Sets include a specially designed shift linkage
for riders who prefer a GP-style reverse shift pattern.

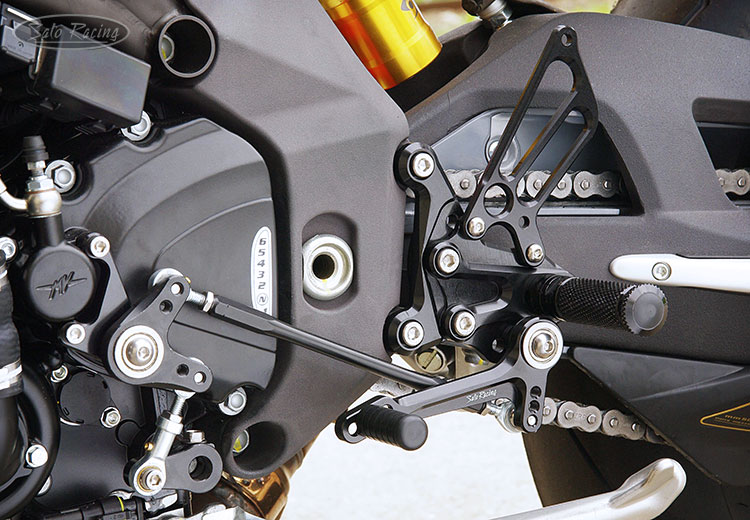

SATO RACING MV Agusta F4 ('10-'14) Reverse Shift Rear Sets [L]-side
The reverse shift assembly has dual miniature stainless bearings at both ends for smooth, precise shift action.
(For the Silver and Gold anodized Rear Sets, the shift linkage parts will be Black)

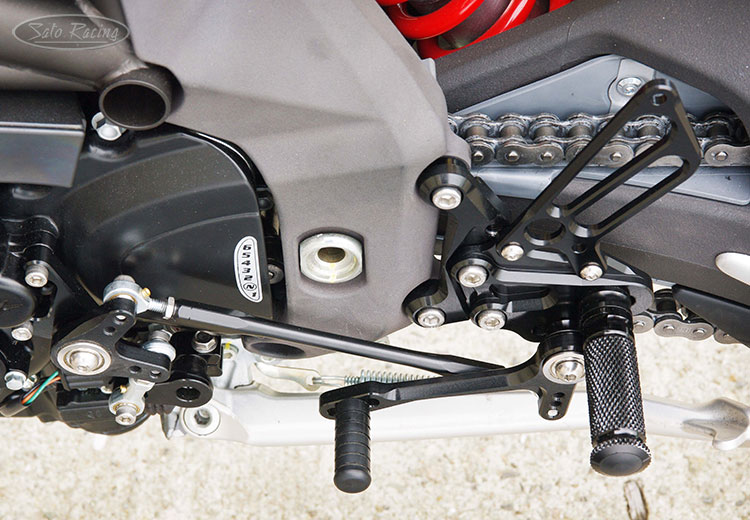

SATO RACING MV Agusta F4 ('10-'14) Reverse Shift Rear Sets [L]-side
NOTE: These Rear Sets are not compatible with the shifter switch on F4 models
with the OEM quick shifter. Can be installed with an inline-type quick shifter.

Reverse Shift Rear Sets

Online Special -
We are clearing out the Silver sets, so we have lowered our prices on them. If you have always wanted to try out these excellent Rear Sets on your F4, now is a great time! *

BLACK	MV-F410RSR-BK $820
SILVER	MV-F410RSR-SV ~~$820~~ $720
GOLD	MV-F410RSR-GD $820

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Rear Sets (Standard version) | Reverse Shift Rear Sets

Some replacement parts for these Rear Sets
can be purchased in our online store:

	FOOT PEG (BK/ SV/ GD)	PEG $42
	PEG COLLAR 12 (BK/ SV/ GD)	PEGCLR-12 $15
	STUD BOLT M8-45mm (Foot peg bolt)	STBT-45 $4.50
	FLANGE NUT M8	FNT-8 $1.50
	PEG WASHER - M8 (R-side #22)	PWS-8 $1.00
	PEDAL TIP (DELRIN)	ST-001D18 $15
	BUTTON HEAD M6-20mm (for Pedal Tip)	BBT-M620 $1.50
	SHIFT / BRAKE ROD 140 (BK/ SV/ GD) (#9)	SRD-140 $39
	SOCKET HEAD M6-20mm	SBT-M620 $1.50
	ROD END COLLAR 3 (L-side #12 / R-side #11)	RDED-CLR3 $6.00
	JAM NUT M6 L-side #21	JNT-6 $1.75
	REVERSE JAM NUT M6 L-side #22	JNT-6L $2.50
	M6 MALE ROD END L-side #24 / R-side # 27	RDED-M6 $12.50
	M6 MALE REVERSE ROD END L-side #25 / R-side #28	RDED-M6L $12.50

For replacement parts not listed on our website, contact Sato Racing for an estimate.
