DUCATI S2R / S4R/S ('03-'08)
REAR SETS
| SATO RACING Rear Sets for 2003-08 Ducati S4R and S2R series features a track-engineered design, with components precision CNC-machined out of lightweight, high strength billet aluminum, with stainless steel hardware. These fine quality Rear Sets provide 4 adjustable footpeg positions so you can find the ideal position for your riding style. Choice of Black, Silver, or Gold anodized finish. |
| 1 | 0 mm | 15mm Up |
| 2 | 10mm Back | 15mm Up |
| 3 | 10mm Back | 25mm Up |
| 4 | 20mm Back | 25mm Up |
note: all measurements are in relation to stock position (0 mm).

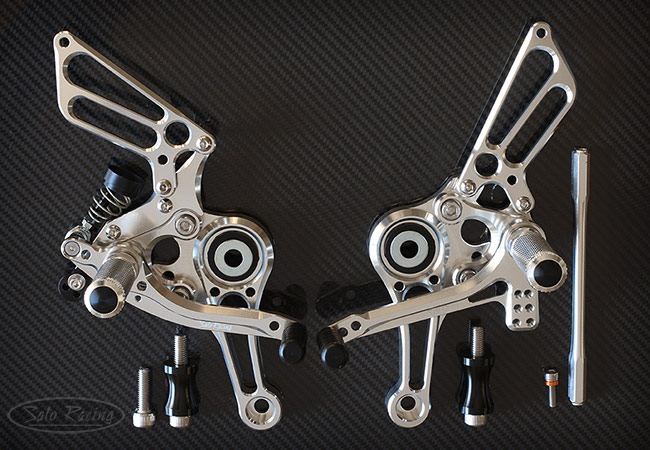

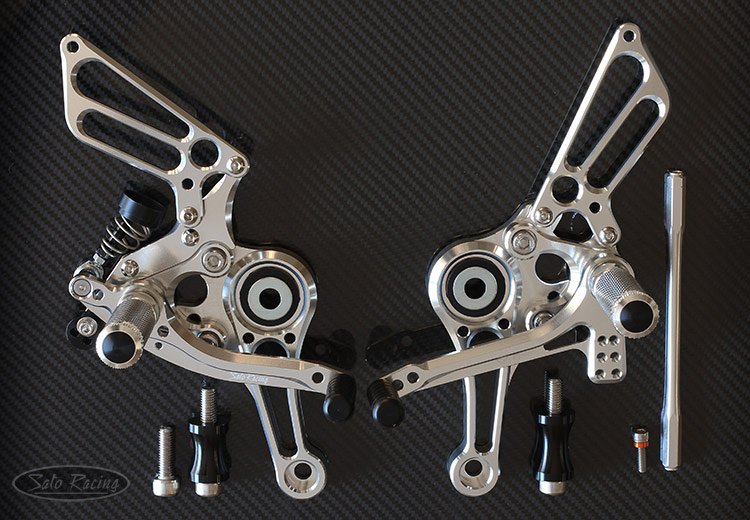

Rear Sets kit shown in brilliant Silver (natural metal) anodized finish (part# D-S4RS2-SV).
Also available in deep Black and vivid Gold finish. Rear Sets kit includes Black anodized
billet aluminum collars and high strength stainless steel and chrome molybdenum bolts.

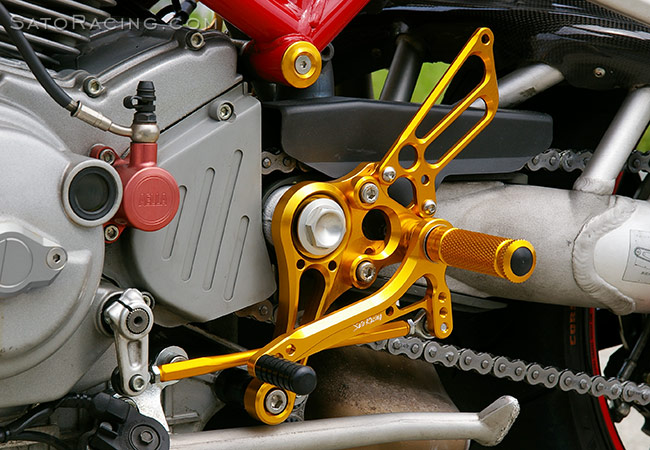

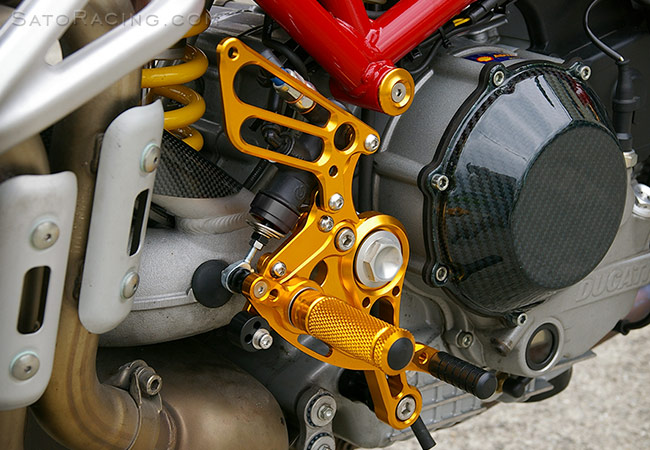

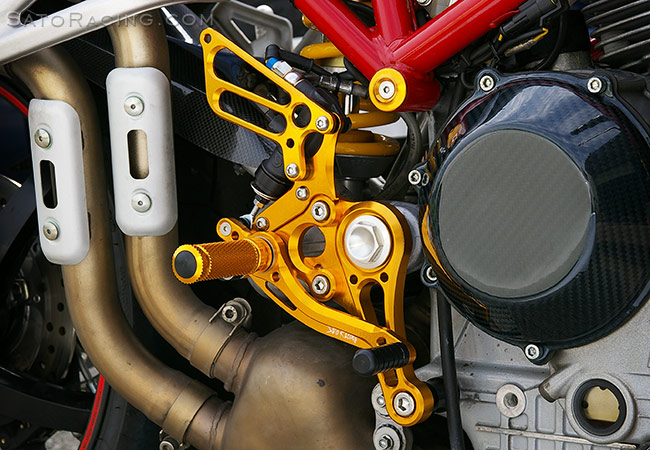

NOTE: The following photos show an earlier version of our S2R/S4R Rear Sets. The latest version
of these Rear Sets has an updated pedal design with additional adjustment holes. (See above photo)
The shift and brake pedals utilize miniature double stainless bearings
for smooth, precise lever movement with a solid, substantial feel.

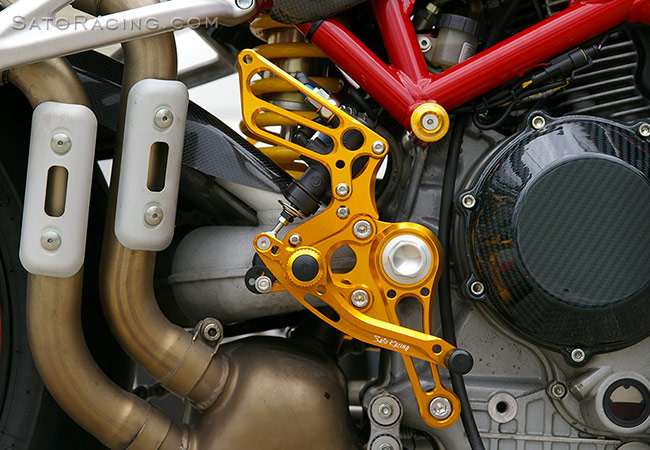

The Step Plate is adjustable 4 ways. The pedal tip position can also be adjusted.
Deeply knurled footpegs have a comfortable, intuitive feel, with excellent grip.

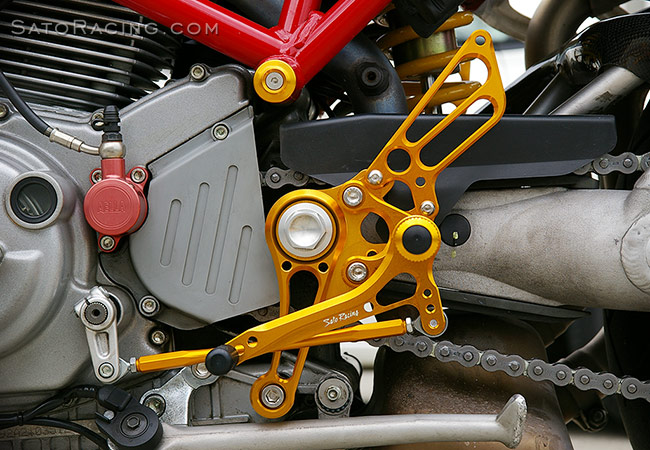

Multiple adjustment holes on the shift pedal let you fine-tune the shift stroke.
 |
We also make an optional matching billet aluminum Shift Arm that provides more range of adjustment and can give the shifter a shorter stroke compared to the OEM shift arm shown above. Compatible with most Ducati models. Choice of Black, Silver and Gold anodized finish. Click Here for more details. |
These Rear Sets are designed for stock shift pattern only.
Reverse (GP) shift pattern is not an option for this model.
| BLACK | D-S4RS2-BK $645 |
 |
| SILVER | D-S4RS2-SV $645 |
|
| GOLD | D-S4RS2-GD $645 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
DUCATI S2R / S4R

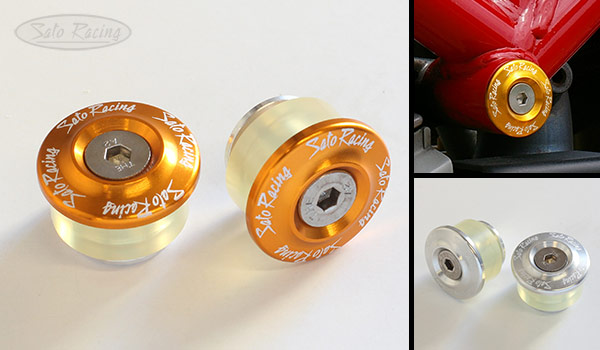

FRAME PLUGS
| SATO RACING Frame Plugs for Monster S2R / S4R and other Ducati models feature frame caps made of billet aluminum, with white laser etched Sato Racing logo script around the edge. Frame Plugs tighten into the frame using urethane bushings seated on aluminum cone nuts. Available in Black, Silver or Gold anodized finish. Looks great with our S2R / S4R Rear Sets! Frame Plugs are sold individually. For fitment on S2R / S4R in the rear frame holes, you will need Qty: 2 of the 24mm-size Frame Plugs. If you want a matching set for the forward holes in the frame, you will need Qty:1 of the 24mm Frame Plug and Qty:1 of the 23mm Frame Plug. |
| SIZE | COLOR | PRICE (Qty:1) | |
| 24mm | BLACK | D-FMPG-24B $18.50 |
|
| 24mm | SILVER | D-FMPG-24S $18.50 |
|
| 24mm | GOLD | D-FMPG-24G $18.50 |
|
| 23mm | BLACK | D-FMPG-23B $18.50 |
|
| 23mm | SILVER | D-FMPG-23S $18.50 |
|
| 23mm | GOLD | D-FMPG-23G $18.50 |
|
REAR BRAKE RESERVOIR CAP
| This high-quality Brake Cap for Brembo S15 type rear brake fluid reservoir is precision CNC-machined out of solid billet aluminum and features a finely knurled grip pattern around the rim, with white laser etched Sato Racing logo script on top. Available in Black, Silver or Gold anodized finish. This handsome cap makes a nice accent for our S2R / S4R Rear Sets! |
 |
BLACK | FC-B2-B $44 |
|
 |
SILVER | FC-B2-S $44 |
|
 |
GOLD | FC-B2-G $44 |
|
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $48 |
|
 |
FLAT HEAD M8-45mm (Foot Peg bolt) |
FBT-M845 $2.50 |
|
 |
PEG WASHER - M8 (L-side #7 / R-side #9) |
PWS-8 $1.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $16.50 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SOCKET HEAD M8-15mm (#3) |
SBT-M815 $1.50 |
|
 |
PEG BEARING COLLAR 10 (BK/ SV/ GD) (L-side #5) |
PEGBGCLR-10 $15.00 |
|
 |
SHIFT PEDAL (L-side #6) |
SPD-0102 $85 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #12) |
HG-6L $60 |
|
 |
BUTTON HEAD M6-10mm (L-side #13 / R-Side #5) |
BBT-M610 $1.50 |
|
 |
SHIFT ROD 180 [BLACK] (L-side #19) |
SRD-180 $39 |
|
 |
SOCKET HEAD M6-20mm (L-side #24) |
SBT-M620 $1.50 |
|
 |
ROD END COLLAR 3 (L-side #25) |
RDED-CLR3 $6.00 |
|
 |
BEARING COLLAR SUS (R-side #7) |
BGCLR-SUS $6.50 |
|
 |
BRAKE PEDAL (BK/ SV/ GD) (R-side #8) |
BPD-6 $85 |
|
 |
SOCKET HEAD M5-25mm (R-side #18) |
SBT-M525 $2.00 |
|
 |
PEDAL STOPPER (DELRIN) (R-side #20) |
BPD-STOPPER $15.00 |
|
 |
NUT M5 (R-side #21) | NUT-5 $1.50 |
|
|
FLAT HEAD M5-35mm (R-side #22) |
FBT-M535 $2.00 |
|
 |
MALE ROD END M5 (R-side #24) |
RDED-M5 $15.00 |
|
 |
BUTTON HEAD M6-30mm (R-side #26) |
BBT-M630 $1.50 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (R-Side #27) |
HG-6R $60 |
|
 |
HEAL GUARD COLLAR 5 (R-side #28) |
HGCLR-5 $8.00 |
|
|
NUT M6 (R-side #29) |
NUT-6 $1.00 |
|
 |
RETURN SPRING 20 (R-side #31) |
RS-RSP2 $8.00 |
|
 |
RETURN SPRING COLLAR (R-side #32) |
RS-RSCLR $12.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.0) |
BSW-1 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
More Sato Racing items for Ducati S2R / S4R
|
